BLDC 14850 Brushless Motors With Precise Control Low Noise EMI
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | UCHI |
| Certification: | Completed |
| Model Number: | BLDC 14850 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs stcoks |
|
Detail Information |
|||
| NO LOAD VOLTAGE: | 47.97V | SPEED AT EFF MAX: | 388.1RPM |
|---|---|---|---|
| Certificate: | 3C | OUTPUT POWER At Pout Max: | 864.8W |
| TORQUE MAX: | 23.61mN.m | ||
| Highlight: | 14850 BLDC Brushless Motors,Precise Control BLDC Brushless Motors,BLDC Brushless Motors |
||
Product Description
BLDC 14850 Brushless Motors With Precise Control Low Noise And EMI
Typical Applications:
1. Home Application
2. Business Equipment

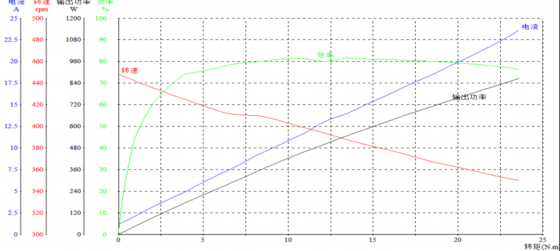

Brushless Motor Technical Data
| Point | VOLTAGE | CURRENT | INPUT POWER | SPEED | TORQUE | OUTPUT POWER | EFFICIENCY | TIME |
| V | A | W | RPM | mN.m | W | % | S | |
| NO LOAD | 47.97 | 1.124 | 53.92 | 448.7 | 0.02 | 1.127 | 2.1 | 0 |
| EFF MAX | 48 | 13.88 | 666.2 | 388.1 | 13.39 | 544.1 | 81.7 | 44.45 |
| POUT MAX | 47.98 | 23.62 | 1133 | 349.8 | 23.61 | 864.8 | 76.3 | 63.77 |
| TORQUE MAX | 47.98 | 23.62 | 1133 | 349.8 | 23.61 | 864.8 | 76.3 | 63.77 |
| END | 47.98 | 23.62 | 1133 | 349.8 | 23.61 | 864.8 | 76.3 | 63.77 |
Features:
1. Precise Control: BLDC motors offer nearly instantaneous control of speed and torque. They can also maintain a holding torque when stationary, which is useful in applications requiring precise motion control.
2. Low Noise and EMI: BLDC motors produce less noise and electromagnetic interference (EMI) compared to brushed motors. This makes them suitable for applications where minimal electrical noise is required.
