BLDC-3640 Brushless Motors With Reduction Gearbox For Electric Shaver And Vibrator
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | UCHI |
| Certification: | Completed |
| Model Number: | BLDC 3640 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs stcoks |
|
Detail Information |
|||
| OPERATING RANGE: | 9v~14V/19V~26V | NOMINAL: | 12V/24V CONSTANT |
|---|---|---|---|
| Certificate: | 3C | No-load Speed R/min: | 16020 RPM Max |
| No-load Current A: | 0.56max | SPEED At Maximum Efficiency: | 13416 RPM Max |
| CURRENT At Maximum Efficiency: | 2.35A Max | EFF At Maximum Efficiency: | 74.6% Max |
| Highlight: | Reduction Gearbox Brushless Motor,Electric Shaver Brushless Motor,BLDC-3640 Brushless Motor |
||
Product Description

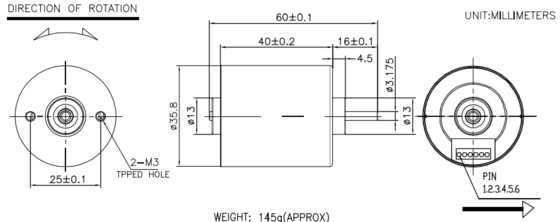

A BLDC-3640 brushless motor is a type of Brushless Direct Current (BLDC) motor. BLDC motors are also known as electronically commutated motors (ECMs). They use permanent magnets and an electronic control circuit to generate rotational motion. The BLDC-3640 specifically refers to a model with a 36mm diameter and a 40mm length.

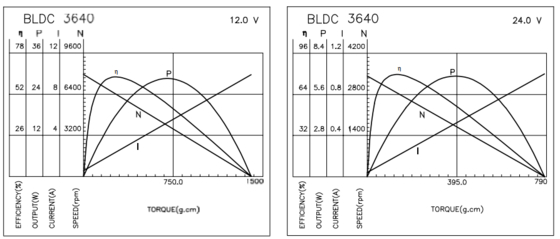

Brushless Motor Technical Data
Typical Application:
1. Electric Shaver
2. Vibrator
3. Home Application
Features:
1.High Efficiency: BLDC motors eliminate brush friction, reducing energy loss and improving power savings. Efficiency can reach 85-90%, significantly higher than traditional brushed motors.
2.Long Lifespan: The absence of brushes prevents wear, extending the motor's lifespan to tens of thousands of hours.
3.High Torque: The BLDC-3640 can provide high torque output, making it suitable for demanding industrial and commercial applications.
