BLDC 3630 Brushless Motors For Industry Apparatus And Home Application
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | UCHI |
| Certification: | Completed |
| Model Number: | BLDC 3630 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs stcoks |
|
Detail Information |
|||
| OPERATING RANGE: | 9v~14V/19V~26V | NOMINAL: | 12V/24V CONSTANT |
|---|---|---|---|
| Certificate: | 3C | No-load Speed R/min: | 11900 RPM Max |
| No-load Current A: | 0.35 Max | SPEED At Maximum Efficiency: | 9065 RPM Max |
| CURRENT At Maximum Efficiency: | 1.08A Max | EFF At Maximum Efficiency: | 61.0% Max |
| Highlight: | Industry Apparatus Brushless Motor,3630 Brushless Motor |
||
Product Description

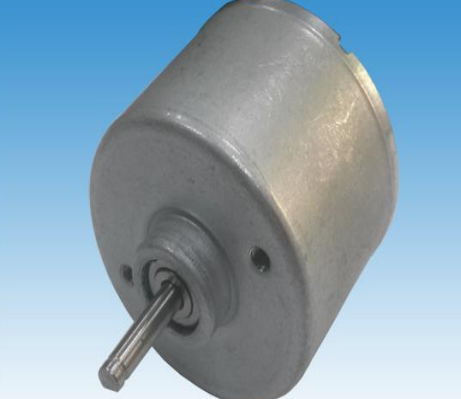

BLDC 3630 Brushless Motors For Industry Apparatus And Personal Care

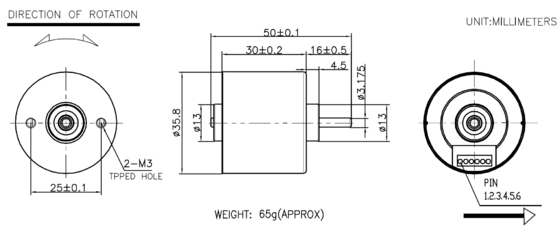

A BLDC 3630 brushless motor is a type of permanent magnet synchronous motor (PMSM) that operates without brushes and a mechanical commutator. Instead, it relies on an electronic controller to manage the flow of current through the motor windings. The "3630" designation typically refers to the motor's physical dimensions, where "36" represents the outer diameter in millimeters and "30" represents the length in millimeters.

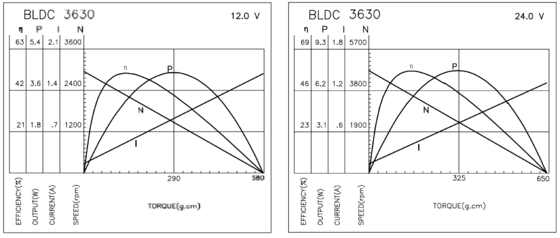

Brushless Motor Technical Data
TYPICAL APPLICATION:
1.Industry Apparatus
2.Personal Care
3.Home Application
Features
-
High Efficiency and Low Maintenance: BLDC motors eliminate the need for brushes and mechanical commutation, reducing energy losses and wear, resulting in higher efficiency and lower maintenance costs.
-
Compact Size and High Power Density: Despite its small size (36mm diameter and 30mm length), the BLDC 3630 motor can deliver significant power, making it suitable for applications where space is limited but high performance is required.
-
Wide Speed Range and Precise Control: These motors can operate over a wide range of speeds and can be precisely controlled using PWM (Pulse Width Modulation) for speed regulation
