BLDC 2418 Brushless Motors High Efficiency and Long Lifespan For Electric Shaver
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | UCHI |
| Certification: | Completed |
| Model Number: | BLDC 2418 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs stcoks |
|
Detail Information |
|||
| OPERATING RANGE: | 9V~16V/19~26V | NOMINAL: | 12V/24V CONSTANT |
|---|---|---|---|
| Certificate: | 3C | No-load Speed R/min: | 11900 RPM Max |
| No-load Current A: | 0.29 Max | SPEED At Maximum Efficiency: | 8891 RPM Max |
| CURRENT At Maximum Efficiency: | 0.82A Max | EFF At Maximum Efficiency: | 61.4% Max |
| Highlight: | Long Lifespan Brushless Motors,High Efficiency Brushless Motors,2418 Brushless Motors |
||
Product Description
BLDC 2418 Brushless Motors High Efficiency and Long Lifespan For Electric Shaver
Features
1.High Efficiency and Long Lifespan: BLDC motors are known for their high efficiency, often reaching up to 97%. The BLDC 2418 motor also boasts a long lifespan, with some models capable of continuous operation for up to 15,000 hours.
2.Low Noise and Low EMI: These motors are designed to operate quietly, making them suitable for applications where noise control is important. They also produce low electromagnetic interference (EMI), which is crucial for sensitive electronic environments.

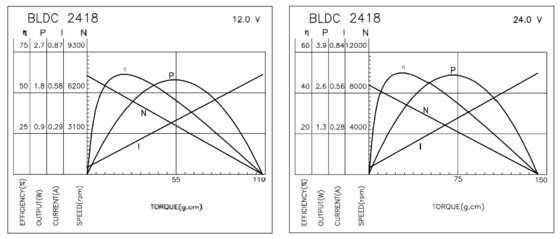

Brushless Motor Technical Data
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||
|
OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | TORQUE | |
| RPM | A | RPM | A | g.cm | % | g.cm | ||||
| BLDC-2418-1 | 9V~16V | 12V CONSTANT | 10250 | 0.29 | 7585 | 0.82 | 73.4 | 5.7 | 57.7 | 282.4 |
| BLDC-2418-2 | 9V~16V | 12V CONSTANT | 7500 | 0.07 | 8863 | 0.194 | 81.5 | 1.2 | 52.8 | 105.0 |
| BLDC-2418-3 | 19V~26V | 12V CONSTANT | 11900 | 0.19 | 8891 | 0.56 | 90.6 | 8.3 | 61.4 | 358.4 |
| BLDC-2418-4 | 19V~26V | 12V CONSTANT | 8700 | 0.04 | 6556 | 0.17 | 32.9 | 2.2 | 54.4 | 144.0 |
TYPICAL APPLICATION:
1.Electric Shaver
2.Home Application
