BLDC 3657 Brushless Motors With Reduction Gearbox For Medical And Industry Apparatus
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | UCHI |
| Certification: | Completed |
| Model Number: | BLDC 3657 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs stcoks |
|
Detail Information |
|||
| OPERATING RANGE: | 9v~16V/12V~26V | NOMINAL: | 12V/24V CONSTANT |
|---|---|---|---|
| Certificate: | 3C | No-load Speed R/min: | 5600 RPM Max |
| No-load Current A: | 0.20max | SPEED At Maximum Efficiency: | 4752 RPM Max |
| CURRENT At Maximum Efficiency: | 1.12A Max | EFF At Maximum Efficiency: | 88.0% Max |
| Highlight: | Medical BLDC Motor,Industry BLDC Motor,3657 BLDC Motor |
||
Product Description

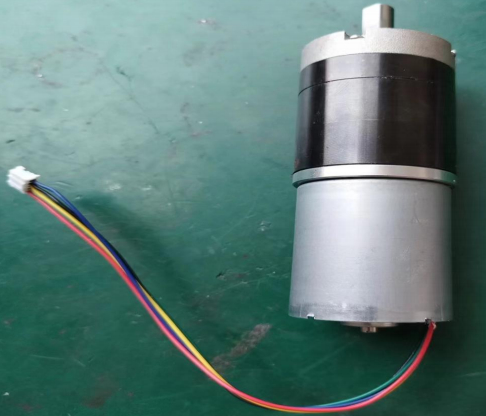

BLDC-3657 Brushless Motors With reduction gearbox for Medical And Industry Apparatus

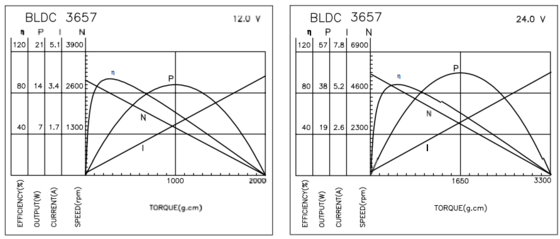

Brushless Motor Technical Data
Typical Application:
1.Home Application
2.Business Equipment
3.Medical Apparatus
4.Industry Apparatus
Features:
1.High Speed: BLDC motors can achieve speeds up to 100,000 RPM, making them suitable for high-speed applications.
2.Low Noise and Vibration: The absence of mechanical friction reduces noise and vibration, making it suitable for applications where noise levels are a concern.
3.Minimal Interference: The brushless motor eliminates the brush and does not use an electric spark, reducing interference to other electrical devices.
