BLDC 3626 Brushless Motors For Industry Apparatus And Personal Care
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | UCHI |
| Certification: | Completed |
| Model Number: | BLDC 3626 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs stcoks |
|
Detail Information |
|||
| OPERATING RANGE: | 9v~14V/19V~26V | NOMINAL: | 12V/24V CONSTANT |
|---|---|---|---|
| Certificate: | 3C | No-load Speed R/min: | 11900 RPM Max |
| No-load Current A: | 0.35 Max | SPEED At Maximum Efficiency: | 9065 RPM Max |
| CURRENT At Maximum Efficiency: | 1.08A Max | EFF At Maximum Efficiency: | 61.0% Max |
| Highlight: | 3626 Brushless Motors,Brushless Motors For Industry Apparatus,Brushless Motors For Personal Care |
||
Product Description

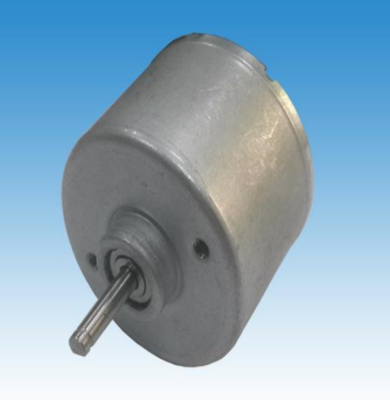

BLDC 3626 Brushless Motors For Industry Apparatus And Personal Care

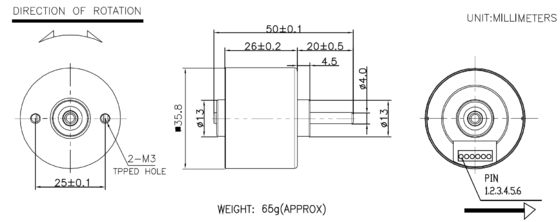

A BLDC 3626 brushless motor is a permanent magnet synchronous motor (PMSM) that operates without brushes and a mechanical commutator. Instead, it relies on electronic controllers to manage the flow of current through the motor windings. The "3626" in its name typically refers to the motor's physical dimensions, where "36" represents the outer diameter in millimeters and "26" represents the length in millimeters. This specific size makes it suitable for a wide range of applications where compactness and high performance are required.

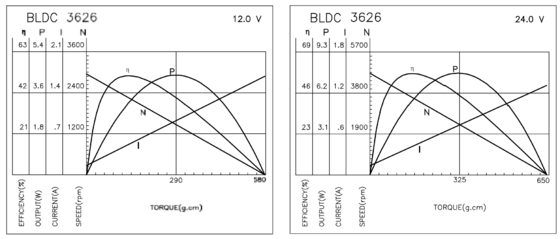

Brushless Motor Technical Data
TYPICAL APPLICATION:
1.Industry Apparatus
2.Personal Care
3.Home Application
Features
-
High Efficiency and Power Density: BLDC motors eliminate the need for brushes and mechanical commutators, reducing energy losses due to friction and electrical resistance. This results in higher overall efficiency compared to brushed DC motors.
-
Low Noise and Vibration: The design of BLDC motors minimizes mechanical noise. The lack of brushes also reduces electrical noise, making them suitable for applications where low noise levels are crucial.
