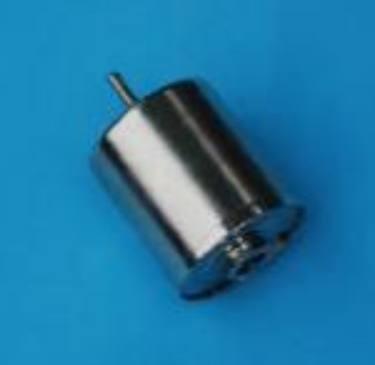

BLDC 2430 Brushless Motors For Home Applications And Personal Care
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | UCHI |
| Certification: | Completed |
| Model Number: | BLDC 2430 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs stcoks |
|
Detail Information |
|||
| OPERATING RANGE: | 5V~9V/6~12V/9V~16V/19V~26V | NOMINAL: | 6V/9V/12V/24V CONSTANT |
|---|---|---|---|
| Certificate: | 3C | No-load Speed R/min: | 8010 RPM Max |
| No-load Current A: | 0.23 Max | SPEED At Maximum Efficiency: | 6385 RPM Max |
| CURRENT At Maximum Efficiency: | 0.87A Max | EFF At Maximum Efficiency: | 67.9% Max |
| Highlight: | 2430 Brushless DC Motor,Home Applications Brushless DC Motor,Personal Care Brushless DC Motor |
||
Product Description
BLDC 2430 Brushless Motors For Home Applications And Personal Care
Features
1.High Precision and Performance: The BLDC 2430 motor can achieve high speeds. It also offers precise control and high torque density, making it suitable for precision applications such as robotics, medical equipment, and industrial automation.
2.Built-in Driver and Protection Features: Some models of the BLDC 2430 motor come with a built-in driver, which simplifies the control system. They also feature over-current, over-voltage, and under-voltage protection, enhancing their reliability.

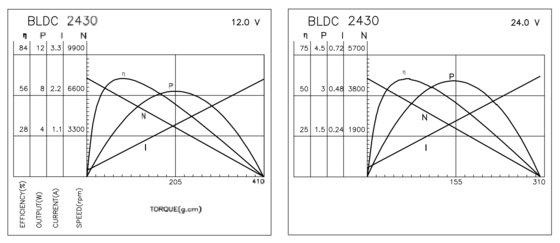

Brushless Motor Technical Data
TYPICAL APPLICATION:
1.Personal Care
2.Home Application
