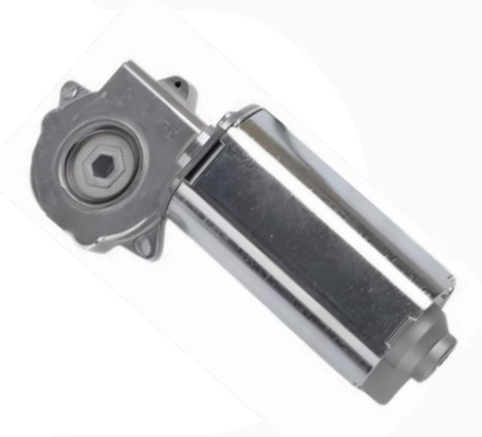

MT007 Electric Lifting Desk Motor Rapid Response Silent Smooth Operation
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | UCHI |
| Certification: | Completed |
| Model Number: | MT007 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs stcoks |
|
Detail Information |
|||
| Rated Power: | 80W Max | Nominal Voltage: | DC24V Max |
|---|---|---|---|
| Certificate: | 3C | Rotate Speed: | 240 RPM Max |
| Hall: | Single/Dual | Reduction On Ratio: | 20/39 |
| Magnetic Pole Number: | A Pair | Rotor Size: | 3025/3041 |
| Highlight: | Smooth Electric Lifting Desk Motor,silent Electric Lifting Desk Motor,rapid response Electric Lifting Desk Motor |
||
Product Description
MT007 Electric Lifting Desk Motor rapid response silent and smooth operation
Electric Lifting Desk Motor is a specialized motor designed to power the height adjustment mechanisms of electric lifting desks. It enables the desk surface to move up and down smoothly and efficiently, allowing users to switch between sitting and standing positions effortlessly.
| voltage | DC24V |
| power | 80W max |
| Rotate Speed | 240RPM max |
| Torsion | 5N.M max |
| Hall | Single/Dual |
| Reduction on Ratio | 39 |
| Magnetic Pole Number | A pair |
| Rotor Size | 3041/3025 |
Product features:
1.Aluminum alloy die-casting housing with two ball bearing inside.
2.Customized wire length and sequence.
3.The motor has a brake at the rear end.
4.Suitable for supporting heavy-duty electric height-adjustable tables.
