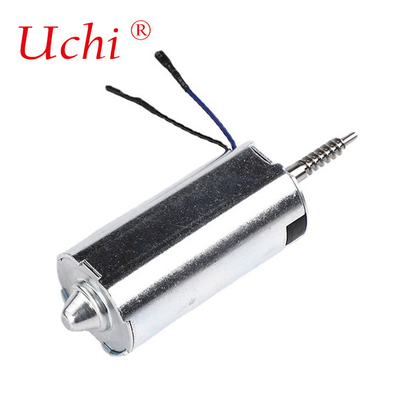

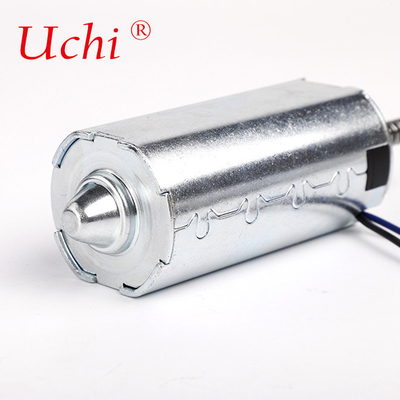

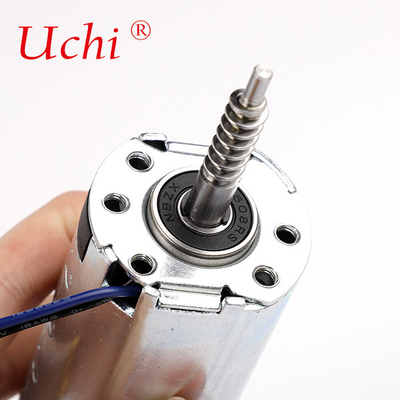

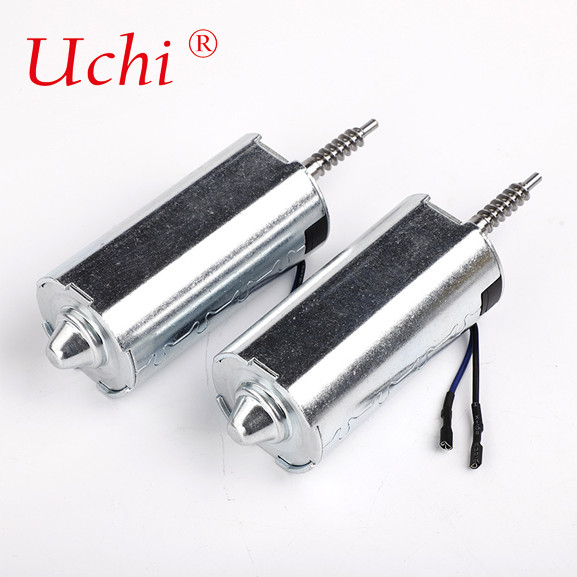

Push Rod Motor Brush DC Motor Quiet High Efficiency Cost Performance
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | UCHI |
| Certification: | Completed |
| Model Number: | DL-3041D24-MT009 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs stcoks |
|
Detail Information |
|||
| Rated Power: | 60W | Rated Current: | 2.5A |
|---|---|---|---|
| Power: | 65% | Gear Motor: | No |
| Rated Speed: | 3500 | Nominal Voltage: | 12-48 |
| Nominal Torque: | 0.2N.m | Range Of Application: | Furniture/medical/industry |
| DC Geared: | Worm Gear Reduction Motor | Motor Name: | Brush DC Motors |
| Boundary Dimension: | 40*45*89 | ||
| Highlight: | Cost Performance Brush DC motor,High Efficiency Brush DC motor,Quiet Brush DC motor |
||
Product Description
Push rod motor Brush DC motor motor Quiet high efficiency cost performance
| voltage | DC12-29V |
| power | 60W max |
| twisting force | 0.2N.m max |
| rotate speed | 8000 max |
| Hall | optional |
| gear ratio | single/double |
| external diameter | 45*40 |
| pushing force | 3000N Max |
