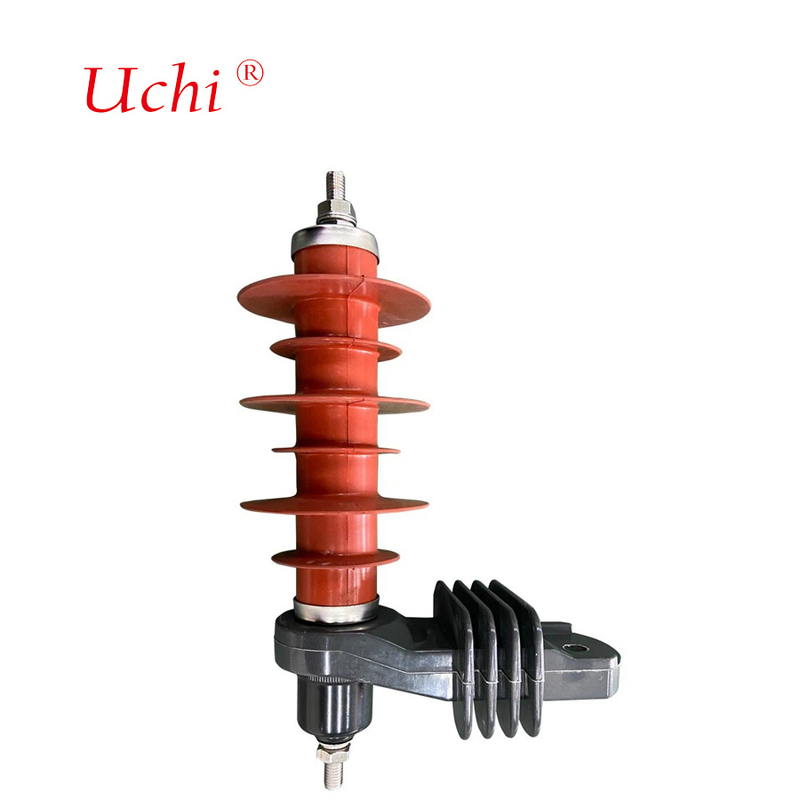

18kV Gapless Lightning Arrester For Distribution Transformer

 18kV Gapless Lightning Arrester For Distribution Transformer


Construction of Metal Oxide Lightning Arrester

The design of metal oxide surge arrester consists of discs that are made up of metal oxide and of all the metals, zinc oxide (ZnO) is the most commonly used metal due to which metal oxide surge arrester is also called as zinc oxide surge arrester. Due to the nonlinear characteristics of the zinc oxide element, the series gap is not required in this arrester. Hence, this arrester is built without series-connected spark gaps due to which this type of arrester is also called a metal oxide gapless surge arrester or zinc oxide gapless surge arrester.

The discs of metal oxide used in metal oxide surge arresters are arranged in a stack and are enclosed in a suitable insulator such as polymer or porcelain housing. With the help of spring-loaded cups at the top and bottom, the stack is held in place. Electrodes are placed at both ends, one meant for the earth connection and the other for the line connection. The inner space remaining in the housing is completely filled with fiber-reinforced composite material.

Hence, the complete arrangement of the above-mentioned assembly forms a solid component consisting of threaded studs on either end. From the point of view of construction, metal oxide or zinc oxide surge arrester is almost similar to that of valve type surge arrester, but in this case, the valve element is a dense ceramic body made up of zinc oxide and some other metallic oxides.


Lightning strikes are common occurrences during thunderstorms that pose a significant threat to the electrical systems in our homes and businesses. They can cause power surges that damage electrical equipment and disrupt power supply, which can lead to significant financial losses. To combat this, lightning arresters for distribution transformers have become an essential tool that helps protect electrical systems from lightning strikes.

As a manufacturer located in China, we are proud to offer our Lightning Arrester for Distribution Transformer as a reliable solution to protect electrical equipment against the devastating effects of lightning strikes.

Product Features:

1) High-Quality Materials:

Our lightning arresters for distribution transformers are constructed using premium quality materials that provide exceptional durability and long-lasting performance. The material is corrosion-resistant, ensuring that the arrester will not deteriorate over time, even in harsh weather conditions.

2) Simple Installation:

Installing our lightning arrester is quick and simple. The arrester can be mounted easily onto the transformer using the clamps provided, and no additional tools are necessary. This makes it easy and cost-effective to implement effective lightning protection in any electrical system.

3) High Voltage Protection:

Our lightning arrester is designed to protect electrical equipment from high voltage surges by diverting excess energy from the transformer to the ground. This helps prevent damage to the transformer from occurring, which can save businesses a significant amount of money in equipment replacements.

4) Low Maintenance:

Our lightning arrester requires low maintenance, once installed, they are virtually maintenance-free. They are designed to withstand harsh weather conditions, making our lightning arrester ideal for installation in outdoor electrical systems

5) Affordable Cost:

Our lightning arrester for distribution transformers is priced competitively, making it an affordable option for businesses looking for quality lightning protection equipment. The reduced cost allows businesses to take proactive measures to protect their electrical systems without breaking the bank.

Benefits of Using Our Lightning Arrester:

1) Greater Equipment Protection:

Our lightning arresters contribute to better protection against lightning strikes, which translates into greater security of electrical equipment. The use of our lightning arresters ensures that businesses will incur fewer equipment expenses that result from damage caused by unpredictable thunderstorms.

2) Robust Lightning Protection:

Our lightning arresters provide robust protection against lightning strikes for an extended period. This saves businesses from having to stop all electrical equipment during a thunderstorm, which could translate into significant losses.

3) Easy to Implement:

Our lightning arresters for distribution transformers are easy to install and use, making them accessible to anyone who wants to protect their electrical equipment effectively.

4) Cost-Effective:

Our lightning arresters are priced competitively, making it affordable for businesses of all sizes to invest in high-quality lightning protection equipment.

Conclusion:

Our lightning arrester for distribution transformers is an excellent investment for businesses looking to protect their electrical equipment effectively from lightning strikes. Our reliable, durable, and low-maintenance arrester is simple to install and provides robust protection to any electrical system, making it an essential tool to protect businesses from electrical equipment damage. If you're a merchant looking for reliable and affordable lightning arresters for your clients, look no further than our lightning arresters for distribution transformers at reasonable prices. Contact us today to learn more and to place your order.
