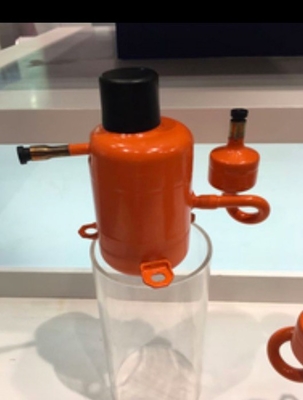

Low Noise And Vibration Micro Rotary Compressor With 500W Cooling Capacity

large.img.alt
small.img.alt

Large Image :  Low Noise And Vibration Micro Rotary Compressor With 500W Cooling Capacity Get Best Price

Product Details:
Place of Origin: Dongguan China
Brand Name: Uchi
Certification: CE ISO
Model Number: Micro compressor
Payment & Shipping Terms:
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: negotiate
Delivery Time: negotiate
Payment Terms: T/T, L/C
Supply Ability: 3000 P
Detailed Product Description
Rotational Speed: 4500min Evaporating Temp: 7.2℃
Condensing Temp: 54.4℃ Sub Cooling Temp: 8.3℃
Ambient Temp: 35.0℃ Return Gas Temp: 35.0℃

Low Noise And Vibration Micro Rotary Compressor With 500W Cooling Capacity ​



Compressor Type
Hermetic Rotary Compressor Motor
Displacement
1.9cm3/rev
Power supply
DC 12V,DC 24,DC 48V
Model
ZH2012A,ZH2024A,ZH2048A
Refrigerant
R134A
Oil amount(ml)
700g(1.5b)
Type of motor
Brushless DC motor
Current range
16A,12A,8A
Speed range
3000rpm,3600rpm,4500rpm
Speed control
controller specially design
Refrigerating capacity
245/305/375(W)
Input power(W)
85,100,120
COP(W/W)
2.9/3.05/3.1
Total weight
725G (including oil)


The compressor developed by our company is a miniature direct-current variable-frequency compressor with small volume, lightest weight and highest energy efficiency ratio in China, which is very suitable for various needs and applications in narrow space, high temperature working condition, portable mobile and other fields.




Capacity measuring conditions and noise & vibration measuring condition

Rated Capacity and input are measured with HITACHI inverter circuit by secondary Refrigerant calorimeter Methods of GB/T 5773-2004 by Shanghai Hitachi Electrical Appliances Co., Ltd. Allowable capacity should be more than95% of the rated capacity and allowable input should be less than 107% of rated motor input. Don’t need to set the ambient temperature and wind speed when measuring the noise and vibration.


Operating voltage range


The compressor should be operated in the range of rated voltage ±10%, under standard condition and overload condition of rated frequency (applied voltage to inverter).

It must be satisfied with item 4, 5, 6 and the overload condition should not be continuous. But the standard conditionand overload condition mentioned here refer to condition that specified in GB/T 7725. (The standard condition refers tothe rating cooling condition and the overload condition refers to the maximum operating condition.)



Characteristic



1, extremly small

2, high performance

3, high cooling capacity

4, rapid cooling down

5, precise controll of tempreature

6, high COP

7, low energy consumption

8, environmental friendly refrigerant R134A

9, Low noise and vibration

10, High reliability

11, overcurrent protection

12, Wide Evaporating temperature range

13, hybrid power source as DC electrical,battery,solar

14, variable application
