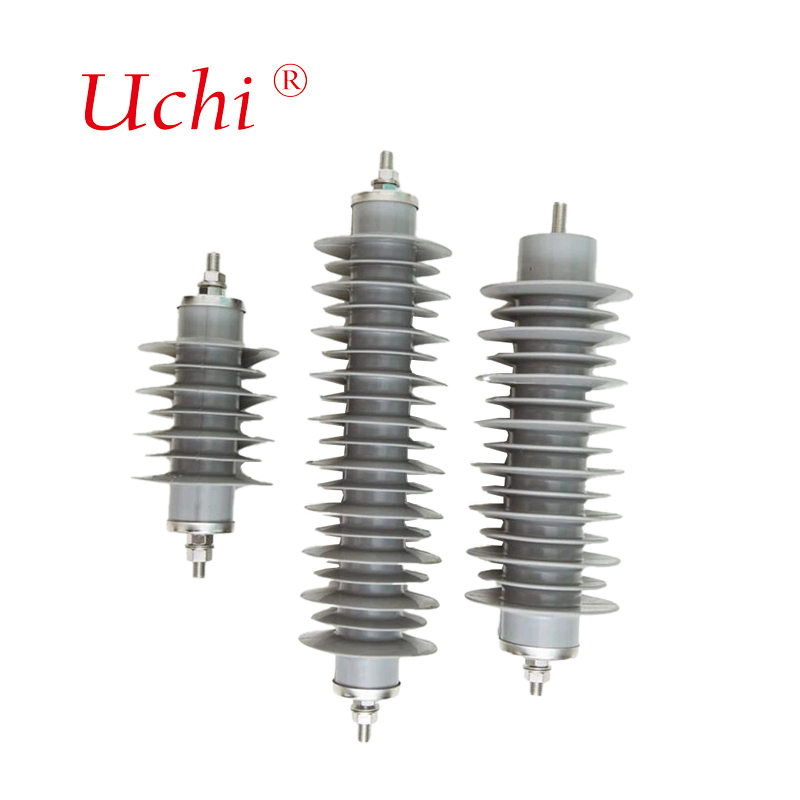

10kV 10kA Polymer Metal Oxide Lightning HV MV Surge Arrester
Product Details:
| Place of Origin: | Dongguan，Guangdong,China |
| Brand Name: | UCHI |
| Certification: | SGS.UL |
| Model Number: | YH10W-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bulk |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T,Paypal,Western Union,Money gram |
| Supply Ability: | 5000,000,000PCS Per Month |
|
Detail Information |
|||
| Highlight: | 10kV polymer metal oxide surge arrester,10kA HV MV lightning arrester,metal oxide varistor with warranty |
||
|---|---|---|---|
Product Description
10kV 10kA Polymer Metal Oxide Lightning HV MV Surge Arrester
The metal oxide lightning HV MV surge arrester protects electrical equipment from over-voltage transients caused by external (lightning) or internal (switching) events. Also known as a surge protection device (SPD) or transient voltage surge suppressor (TVSS), this class of device safeguards equipment in power transmission and distribution systems.
Product Specifications
Product Name: 10kV 10kA polymer metal oxide lightning HV MV surge arrester
Type: YH10W-10
Material: Polymer housing metal oxide
| Type | Rated Voltage | Max Continuous Operating Voltage | Residual Voltage | 2ms Square Wave Impulse Current Withstand |
|---|---|---|---|---|
| YH10W-10 | 10kV | 8.4kV | 36kV | 23kV |
Performance Characteristics
- Steep Current Impulse: 30KV
- Switching Current Impulse: 400A
- Lightning Current Impulse: 100KA
- 4/10μs high current tolerance
Key Features
- Economical protection with high bearing capacity
- Long-term stable operation
- Excellent anti-fouling properties for harsh environments
- High mechanical stability for seismic areas
- Reliable pressure release performance
Applications
Protects transmission and distribution lines, power stations, transformers, generators, capacitors, traction locomotives, cables, and switchgear. Suitable for:
- Coastal and desert areas
- Heavy industrial pollution zones
- Commercial, industrial, and residential applications
- Data centers, hospitals, and manufacturing plants
Technical Advantages
Our MV Surge Arrester features:
- Compact design for easy installation
- High-quality stainless steel and copper construction
- Advanced circuitry for optimal surge absorption
- Energy-efficient operation
- Compatibility with single or three-phase systems
