Distribution Type Metal Oxide Polymer Lightning 10kv Surge Arrester
Product Details:
| Place of Origin: | Dongguan，Guangdong,China |
| Brand Name: | UCHI |
| Certification: | SGS.UL |
| Model Number: | YH10W-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bulk |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T,Paypal,Western Union,Money gram |
| Supply Ability: | 5000,000,000PCS Per Month |
|
Detail Information |
|||
| Highlight: | 10kv metal oxide surge arrester,polymer lightning surge arrester,distribution type metal oxide varistor |
||
|---|---|---|---|
Product Description

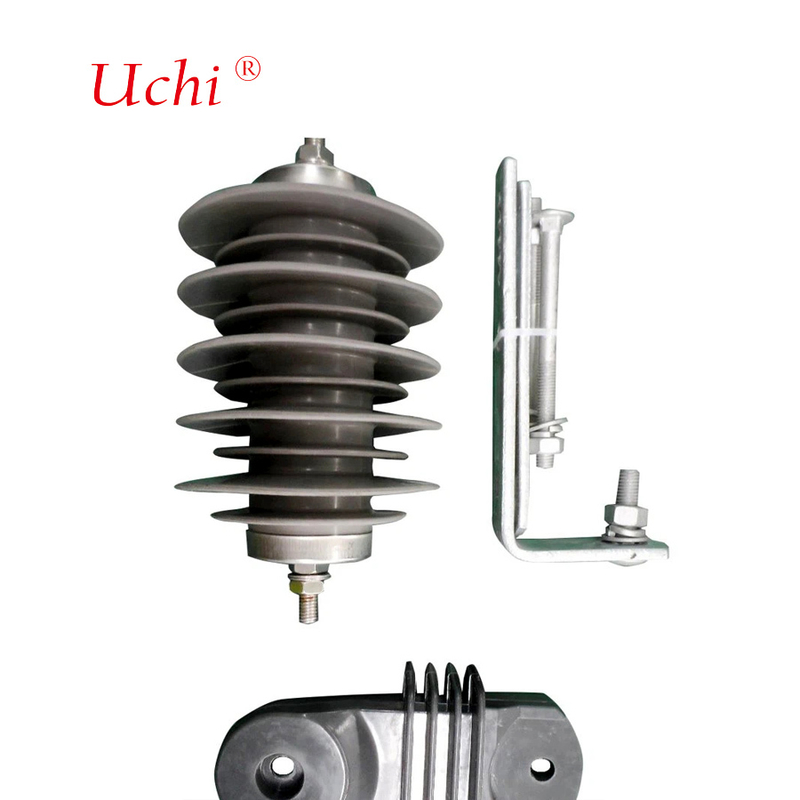

Distribution Type Metal Oxide Polymer Lightning 10kV Surge Arrester
The Polymer Lightning 10kV Surge Arrester provides superior protection for power equipment such as transformers against system over-voltages and lightning surges. Engineered with excellent voltage-ampere characteristics and high reliability, this arrester meets IEC60099-4:2004 standards.
Product Specifications
| Type | Rated Voltage | Max Continuous Operating Voltage | Residual Voltage | 2ms Square Wave Impulse Current Withstand |
|---|---|---|---|---|
| YH10W-10 | 10kV | 8.4kV | 36kV | 23kV |
| Steep Current Impulse | Switching Current Impulse | Lightning Current Impulse | 4/10μs High Current Tolerance | |
| 30kV | 400A | 100kA |
Silicon Rubber Housing Advantages
- Injected or vulcanized directly onto varistor fiber glass winding core, forming a complete arrester with no air gaps to prevent partial discharge and extend electrical life
- Eliminates explosion or cracking risks associated with ceramic jackets during overload conditions
- Hydrophobic and anti-fouling properties minimize surface leakage current
Key Features
Premium Construction: Manufactured with high-quality materials for durability and reliability in harsh outdoor environments.
Low Residual Voltage: Minimizes post-surge voltage levels for superior electrical system protection.
High Discharge Capacity: Handles large surges without damage to the arrester.
Safety Features
- Built-in thermal disconnection devices prevent overheating during prolonged surges
- Visual indicators for operation status and maintenance requirements
