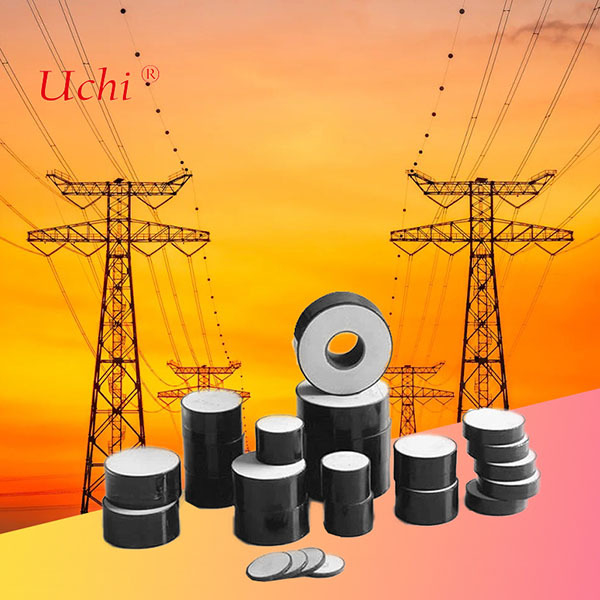

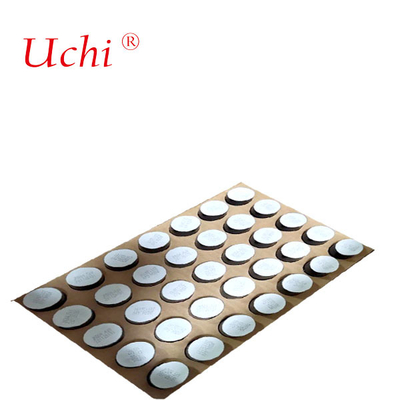

3kV 10ka D52*H20 Metal Oxide Surge Arrester Rheostat (52mm Diameter)
Product Details:
| Place of Origin: | Dongguan，Guangdong,China |
| Brand Name: | UCHI |
| Certification: | SGS.UL |
| Model Number: | D52*H20mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bulk |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T,Paypal,Western Union,Money gram |
| Supply Ability: | 5000,000,000PCS Per Month |
|
Detail Information |
|||
| Highlight: | 3kV metal oxide surge arrester,10kA metal oxide varistor,52mm diameter surge rheostat |
||
|---|---|---|---|
Product Description
3kV 10ka D52*H20 Metal Oxide Surge Arrester Rheostat (52mm Diameter)
Uchi Electric provides high voltage varistors for high power and high voltage AC & DC applications. These devices significantly extend the lifetime of critical components by offering superior surge protection.
Key Features
- A Varistor (voltage-dependent resistor) varies its electrical resistance based on applied voltage - high resistance at low voltage and low resistance at high voltage
- Ideal for diverting surge voltages and spikes away from critical components in electrical systems
- Metal Oxide Varistors (MOVs) are constructed from zinc oxide and other metal oxides between two metal plates
- Advanced formulations and processes enable higher breakdown voltages (up to 10 kV/mm) with low leakage current
- Features a nonlinear alpha coefficient greater than 50 for rapid transition from insulating to conducting state
- Breakdown strength ten times higher than commercial MOVs enables miniaturization and high voltage surge protection
Product Specifications
Product name: High voltage varistor for power station
Type: varistor D52*H20mm
Material: Zinc oxide
Type: varistor D52*H20mm
Material: Zinc oxide
Technical Specifications (IEC Standard SL)
| Specification | Diameter | Thickness | D.C. reference voltage (U1mA) | Max. ratio of residual voltage (8/20us) | Current impulse withstand capability | Recommended rated voltage | Maximum energy absorption capacity |
|---|---|---|---|---|---|---|---|
| MOV52×20 | 52±0.5 mm | 20±0.5 mm | 4.0-4.8 kV | 1.74 at 10kA | 120 kA (4/10us) 800 A (2ms) |
3 kV | 6.3 kJ/kVr |
Technical Specifications (IEC Standard SM)
| Specification | Diameter | Thickness | D.C. reference voltage (U1mA) | Max. ratio of residual voltage (8/20us) | Current impulse withstand capability | Recommended rated voltage | Maximum energy absorption capacity |
|---|---|---|---|---|---|---|---|
| MOV60×20 | 60±0.5 mm | 20±0.5 mm | 4.0-4.8 kV | 1.72 at 10kA | 150 kA (4/10us) 1000 A (2ms) |
3 kV | 7.9 kJ/kVr |
| MOV60×30 | 60±0.5 mm | 30±0.5 mm | 6.2-7.0 kV | 1.72 at 10kA | 150 kA (4/10us) 1000 A (2ms) |
4.5 kV | 7.9 kJ/kVr |
Technical Specifications (IEC Standard SH)
| Specification | Diameter | Thickness | D.C. reference voltage (U1mA) | Max. ratio of residual voltage (8/20us) | Current impulse withstand capability | Recommended rated voltage | Maximum energy absorption capacity |
|---|---|---|---|---|---|---|---|
| MOV71×20 | 71±0.5 mm | 20±0.5 mm | 4.0-4.8 kV | 1.66 at 10kA | 150 kA (4/10us) 1400 A (2ms) |
3 kV | 10.6 kJ/kVr |
| MOV71×30 | 71±0.5 mm | 30±0.5 mm | 6.2-7.0 kV | 1.66 at 10kA | 150 kA (4/10us) 1400 A (2ms) |
4.5 kV | 10.6 kJ/kVr |
