D30*H20mm Mov metal oxide varistor MOV surge arrester block
Product Details:
| Place of Origin: | Dongguan，Guangdong,China |
| Brand Name: | UCHI |
| Certification: | SGS.UL |
| Model Number: | D30*H20mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bulk |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T,Paypal,Western Union,Money gram |
| Supply Ability: | 5000,000,000PCS Per Month |
|
Detail Information |
|||
| Highlight: | D30xH20mm MOV surge arrester,metal oxide varistor block,MOV surge protector with warranty |
||
|---|---|---|---|
Product Description

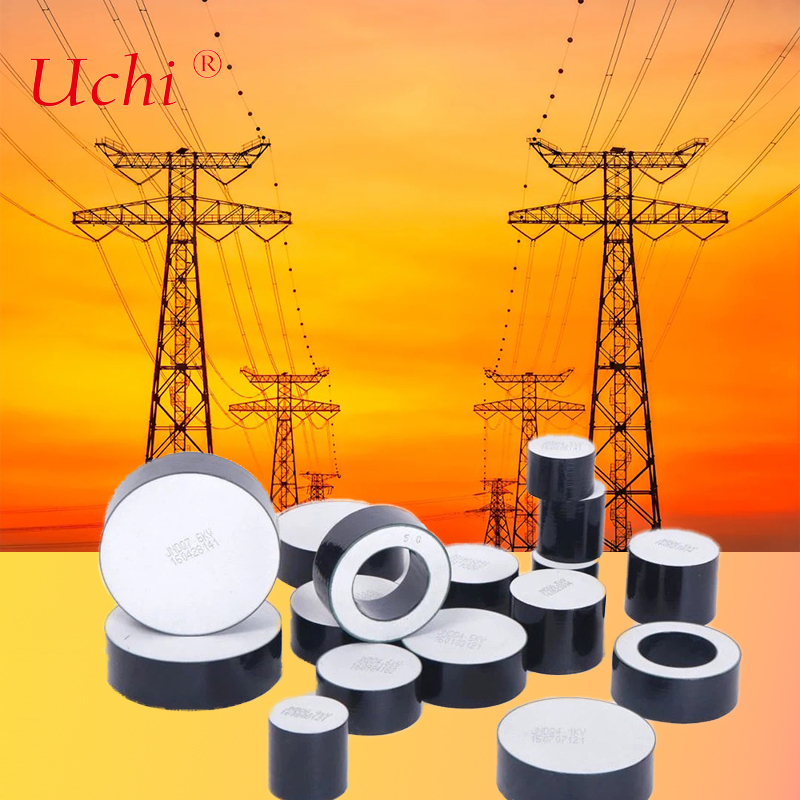

D30×H20mm MOV Metal Oxide Varistor (MOV) Surge Arrester Block
The MOV varistor block serves as the core component of surge arresters, primarily composed of Zinc Oxide with small quantities of bismuth oxide, fluoride oxide, manganous carbonate, antimony oxide, and other additives manufactured under high temperature conditions.
Technical Composition
Metal Oxide Varistors feature a microstructure consisting of Zinc Oxide grains, grain boundary layers, and chienship phase. The electrical conduction principle relies on Zinc Oxide grains' excellent conductivity, with voltage primarily acting on the high-resistance grain boundary layer. The varistor's nonlinear characteristics originate from the grain boundary layer (primarily bismuth oxide) and chienship phase dispersed throughout the boundary layer.
Key Features
- Superior protection against power surges and over-voltage spikes
- High-performance capacity for all electronic devices
- Robust design with high-quality materials for harsh conditions
- Wide operating temperature range with moisture and dust resistance
- Long lifespan with minimal maintenance requirements
- Fast-reacting protection with high clamping voltage
- Industry-certified performance exceeding standards
Technical Specifications
Application for Arrester Classification DM (IEC Standard)
| Specification | Diameter (mm) | Thickness (mm) | D.C. reference voltage (U1mA) (kV) | Max. ratio of residual voltage (8/20μs) at 5kA | Current impulse withstand capability (4/10μs) (kA) | Current impulse withstand capability (2ms) (A) | Recommended rated voltage (kV) | Maximum energy absorption capacity (kJ/kVr) |
|---|---|---|---|---|---|---|---|---|
| MOV30×3 | 30±0.5 | 3.0±0.5 | 0.6-0.8 | 1.82 | 40 | 150 | 0.28 | 0.8 |
Application for Arrester Classification DH (IEC Standard)
| Specification | Diameter (mm) | Thickness (mm) | D.C. reference voltage (U1mA) (kV) | Max. ratio of residual voltage (8/20μs) at 10kA | Current impulse withstand capability (4/10μs) (kA) | Current impulse withstand capability (2ms) (A) | Recommended rated voltage (kV) | Maximum energy absorption capacity (kJ/kVr) |
|---|---|---|---|---|---|---|---|---|
| MOV36.5×20 | 36.5±0.5 | 20±0.5 | 4.0-4.8 | 1.83 | 100 | 350 | 3 | 2.5 |
Performance Advantages
Our MOV Varistor Blocks provide fast-reacting protection with high clamping voltage, ensuring tight regulation of voltage surges to minimize damage to protected equipment. All products undergo rigorous testing and certification by recognized industry bodies to guarantee performance that meets or exceeds standards.
Customer Support
We offer comprehensive technical support from our team of experts, available to assist with product application, troubleshooting, and any technical inquiries. Our commitment to customer service ensures a smooth purchasing and implementation process.
