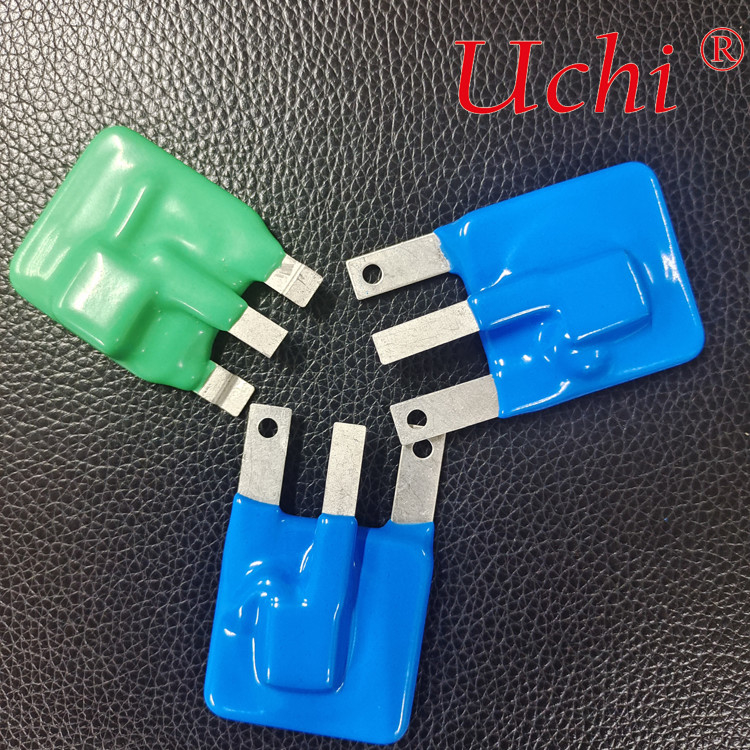

TFMOV Thermal Fuse MOV High Energy Industrial Thermally Protected

TFMOV Thermal Fuse MOV High Energy Industrial Thermally Protected

Product Details:

Place of Origin: Dongguan China
Brand Name: UCHI
Certification: Completed
Model Number: TMOV

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: Standard
Delivery Time: 3weeks
Payment Terms: T/T, Western Union
Supply Ability: 5000pcs
Get Best Price Contact Now

Detail Information

Maximum Continuous Operating Voltage,MCOV: AC=385Vrms,DC=505V Varistor Voltage,Vn: V1.0mA =558~682 V
Maximum Discharge Current, IN: 3000A*15 Rated Current Ir: 5A
Rated Operating Temperature Tf: 136℃ Temperature Coefficient Of Pressure-sensitive Voltage: 0 ~ ±0.05 %/°C
Highlight:

Industrial Thermally Protected TFMOV

,

High Energy Industrial Thermally Protected MOV

,

Industrial Thermally Protected MOV

Product Description

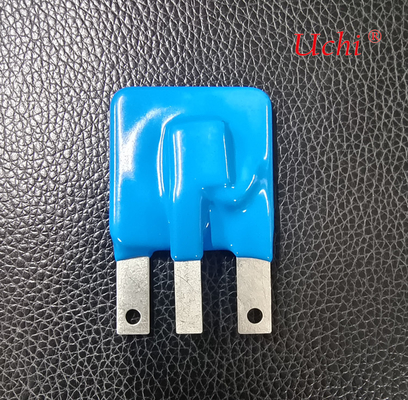

TFMOV thermoprotected varistor High Energy Industrial Thermally Protected

Description


The over temperature protection type varistor is a series of varistors with over temperature release (disconnection) function. It is a temperature sensitive device attached to a regular MOV chip. When the power frequency current continues to increase or the MOV fails, due to the increase in power frequency current or leakage current of the MOV, the temperature of the MOV body rises to the set operating temperature of the TFMOV, and the temperature sensitive device will disconnect. This cuts off the current supply to the MOV, preventing the temperature rise of the MOV from increasing and thus preventing the ignition caused by the failure of the MOV, which is a new type of zinc oxide varistor. It uses standard leads as the output terminal, which is very suitable for installation on PCB circuit boards.



Applicable

● Strip
● UPS
● Network
● Railway
● Computers
● Telecommunication
● Switching power supply



Structural features and packaging methods:



-Resistance structure: circular, with leads, equipped with an over temperature release mechanism, encapsulated with epoxy resin;

-Encapsulation material: flame retardant epoxy resin, compliant with UL94-0;

-Electrode lead: Tin plated copper wire;

-Packaging method: Bulk
