6.7KV Block Metal Oxide Varistor MOV For Surge Arresters , ZNR Varistor

6.7KV Block Metal Oxide Varistor MOV For Surge Arresters , ZNR Varistor

Product Details:

Place of Origin: Dongguan,Guangdong,China
Brand Name: UCHI
Certification: SGS.UL
Model Number: 32*31mm

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: Negotiable
Packaging Details: Bulk
Delivery Time: 5-7 days
Payment Terms: T/T,Paypal,Western Union,Money gram
Supply Ability: 5000,000,000PCS Per Month
Get Best Price Contact Now

Detail Information

Highlight:

metallic oxide varistor

,

clamping voltage varistor

Product Description

 6.7KV Block Metal Oxide Varistor MOV For Surge Arresters , ZNR Varistor


Quick Detail:



1.Good non-liner speciality
2.No redundant current
3.Large galvanization
4.Smart response

5.Low clamping voltage , good protection performance


Description:

Metal Oxide Varistor is a ceramic semiconductor component made of zinc oxide as the main material.Its resistance value varies with applied voltage and it is the core components of metal oxide arrester.Its quality directly determines the performance of surge arrester.Our company's metal oxide varistor is characterized by strong galvanization capacity,high protective performance,good nonlinear characteristic,fine appearance,varisos specifications and so on.The common voltage gradient range is 200~230V/mm.Its diameter and height can be determined neatly according to the customer's requirements.The varistor's maximum diameter can reach 138mm and the maximum height can reach 41mm.


Applications:



1.Components for surge arresters in electrical system

2.Absorbing surge of the switch tank and over voltage protection

3.Absorbing surge of the energy and over voltage protection

4.Electrical railway surge protection


Specifications:



Specification

Diameter

Thickness

D.C.

reference voltage

(U1mA)

Max. ratio of residual voltage

(8/20us)

Current impulse withstand capacbility 4/10us

 Current impulse withstand capacbility 2ms

Recom

mended rated voltage

Recommended continuous operating voltage

 Leakage current under75% U1mA



mm

mm

KV

uA

 KA

A

 KV

KV



 MOV32*31

32±1

 31±1

 6.8±0.3

 1.79@5KA

 65KA

120

4.5

3.6

  <10



Note:

1.Applied standards are IEC60099-4 and GB11032-2000.

2.We can manufacture metal oxide varistors according to users' special requirements.





Competitive Advantage:,


  1. Factory supply directly
  2. Completed certificates such as UL,VDE,SGS,etc and high quality available
  3.  Quick delivery
  4. Best after-sales services
  5. OEM & ODM available

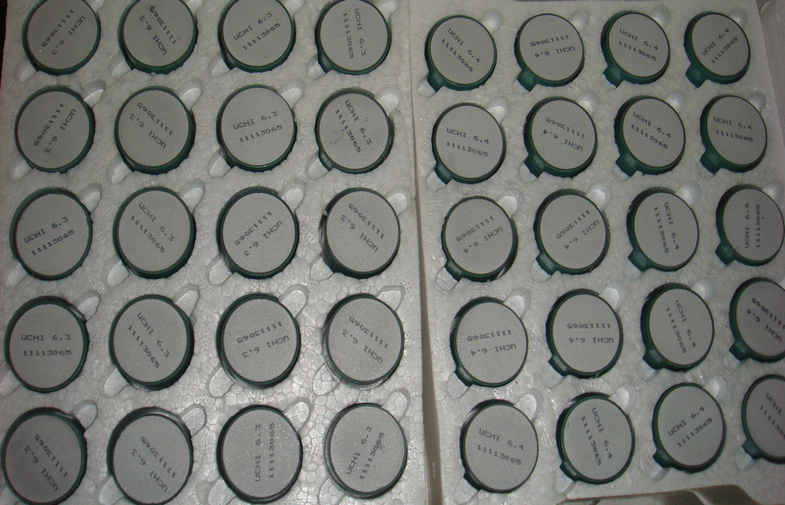

6.7KV Block Metal Oxide Varistor MOV For Surge Arresters , ZNR Varistor 0

6.7KV Block Metal Oxide Varistor MOV For Surge Arresters , ZNR Varistor 1

6.7KV Block Metal Oxide Varistor MOV For Surge Arresters , ZNR Varistor 2
