Cyclical Glass Fuses PV A73 Gpv Midget Fuse Links 1000vdc For Photovoltaic Application
Product Details:
| Place of Origin: | Germany/China |
| Brand Name: | ADLER |
| Certification: | UL etc. |
| Model Number: | A73 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Packaging Details: | Bulk |
| Delivery Time: | 3~4weeks |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000PCS/Month |
|
Detail Information |
|||
| Name: | A73 GPV Midget Fuse Links | Rated Voltage: | 1~30A |
|---|---|---|---|
| Rated Breaking Capacity: | 30KA | Dimensions: | 10x38mm |
| Application: | Photovoltaic Applications | Series: | A73 |
| Time Constant: | 1~3ms | Reference Standnard: | UL 2579/UL 248 |
| Approvals: | UL 2579 Listed(File:E490190) | MOQ: | 1000PCS |
| High Light: | slow blow glass fuse,mini glass fuses |
||
Product Description

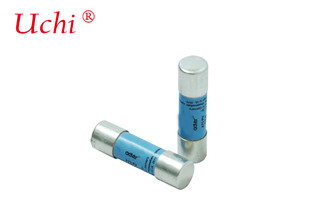

Cyclical PV A73 Gpv Midget Fuse Links 1000vdc For Photovoltaic Application
Midget Fuse Links A73 datasheet_20170317.pdf
Features
- 1000 VDC, 10x38mm PV fuse link
- Rated Current: 1~30A
- Rated Breaking Capacity: 30 kA
- Time Constant: 1-3ms
- Special design with silver plated caps for high-power PV applications
- Reference Standard:UL 2579/UL 248
- Approvals: UL 2579 Listed(File:E490190)
Description
This A73 series fuse link is designed for circuits requiring gPV type DC fuses in photovoltaic systems up to 1000VDC, in particular against typical cyclical current flow currents as found in photovoltaic applications. Most common usage is in combiner boxes for string protection. It can also serve as alternate protection for high voltage accessories and circuits such as electric and hybrid electric vehicles, Battery protection etc..
Electrical Specificaitons
| Part Number | Current Rated | Breaking Capacity | I2t(A2s) | Max.Dissipation(W) | ||
| Pre-Arcing | Total at 1500V | 80% In | 100% In | |||
| A731100700 | 1A | 30KA@1000V DC | 0.15 | 0.4 | 0.8 | 1.5 |
| A731200700 | 2A | 1.3 | 3.4 | 0.7 | 1.1 | |
| A731300700 | 3A | 4 | 12 | 0.8 | 1.3 | |
| A731400700 | 4A | 10 | 28 | 1.1 | 1.4 | |
| A731500700 | 5A | 19 | 50 | 1.1 | 1.4 | |
| A731600700 | 6A | 32 | 93 | 1.2 | 1.8 | |
| A731800700 | 8A | 85 | 205 | 1.2 | 2.2 | |
| A732100700 | 10A | 30 | 70 | 1.3 | 2.3 | |
| A732120700 | 12A | 98 | 150 | 1.5 | 2.8 | |
| A732150700 | 15A | 149 | 230 | 1.8 |
3.0 |
|
| A732200700 | 20A | 229 | 330 | 2.4 | 3.6 | |
| A732250700 | 25A | 411 | 500 | 2.6 | 4.1 | |
| A732300700 | 30A | 1200 | 2500 | 4.3 | 5.7 | |
Note:
(1) DC cold resistance are measured at <10% of rated current in ambient temperature of 25°C
(2) Typical pre-arcing I²t measured at 10 In current
Dimension
Application
PV combiner/ junction boxes
Inverters
Battery Charge Controllers
Time Current Curve
MATCHING FUSE HOLDERS/ ACCESSORIES:
- BH100, BH101, BH100-00 holders for DIN rail mounting
- 10x38mm fuse clips BC800
Environmental
