Quick Acting Ceramic Fuse 2A 250V
Product Details:
| Certification: | UL,cUL |
| Model Number: | R1032.1200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2000 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tape in reel,2000pcs per reel |
| Delivery Time: | 1-2 Weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 20,000,000 Pieces Per Month |
|
Detail Information |
|||
| Product Name: | Ceramic Fuse | Dimension: | 10.2mmx3.2mm |
|---|---|---|---|
| Speed: | F | Plating: | Gold Or Sliver |
| Rated Current: | 2A | Voltage Rating: | 250V |
| Highlight: | slow blow glass fuse,mini glass fuses,surface mount brick ceramic fuse |
||
Product Description

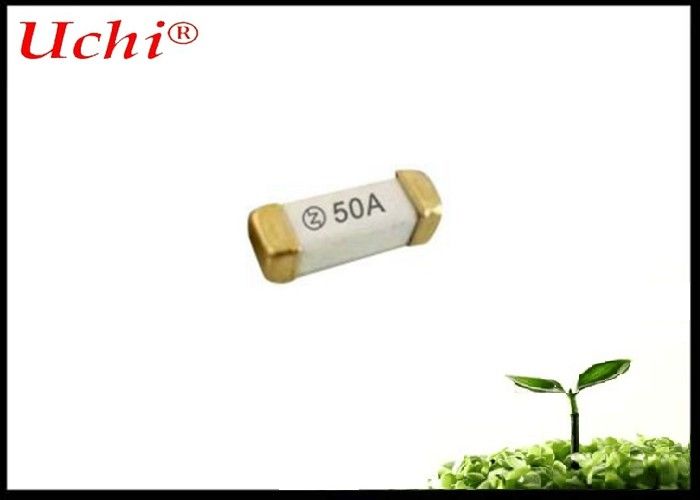

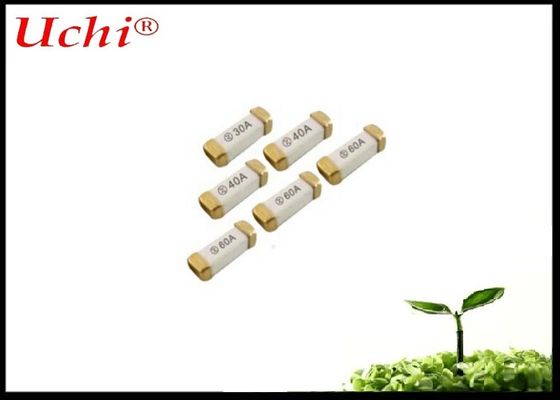

NANO2 Gold Sliver Plated Quick Acting Subminiature Surface Mount Brick Ceramic Fuse 2A 250V 10.2mmx3.2mm
Description
The 250 NANO2 Fuse is a small square surface mount fuse that is designed to support higher voltage space sensitive applications. Enables compliance with the RoHS directive and is fully compatible with lead-free solder alloy and higher temperature profiles associated with lead-free assembly.
• 250 VAC voltage rating
• Fast-acting Fuse
• Available 0.50A – 5.00A
• RoHS Compliant
• Fully compatible with lead-free solder alloys and higher temperature profiles associated with lead-free assembly
Specification
Material
| End cap |
Au Plated Brass Cap |
| Body |
Non-Transparent Square Ceramic Tube |
| Fuse element |
Cu-Ag Alloy wire |
Package
24mm Tape and Reel
EIA-RS 481-2 (IEC 286, part 3)
2000pcs per reel
Reliability Test
| NO. | Item | Content | Reference standards |
| 1 |
Operating Temperature |
-55°C to 125°C |
IEC60068-2-1/2 |
| 2 |
Solderability |
T=240°C±5°C , t=3sec±0.5sec,Coverage≥95% |
MIL-STD-202, Method 208 |
| 3 |
Resistance to Soldering Heat |
10 sec at 260°C |
MIL-STD-202, Method 210, Test condition B |
| 4 |
Insulation Resistance (after Opening) |
10,000 ohms minimum |
MIL-STD-202, Method 302, Test Condition A |
| 5 |
Thermal Shock |
5 cycles, -65°C / +125°C, 15 minutes at each extreme |
MIL-STD-202, Method 107, Test Condition B |
| 6 |
Mechanical Shock |
100G’s peak for 6 milliseconds,3cycles |
MIL-STD-202, Method 213, Test I |
| 7 |
Vibration |
0.03”amplitude, 10-55 Hz in 1 min. 2hrs each XYZ=6hrs |
MIL-STD-202, Method 201 |
| 8 |
Moisture Resistance |
10 cycles |
MIL-STD-202, Method 106 |
| 9 |
Salt Spray |
5% salt solution, 48hrs |
MIL-STD-202, Method 101, Test Condition B |
Electrical Characteristics
Test Condition : All electrical test is to be conducted with the ambient air at a temperature of 25±5℃.
Interrupting Rating:Breaking Capacity: 50A@250Vac,200A@125Vac.
Operating Characteristics
| Current Range |
% of Ampere Rating(In) |
Melting Time |
| 0.05A-15A/20A-60A |
100% * In |
>4 Hour |
| 0.05A-15A/20A-60A |
200% * In |
<60 sec |
