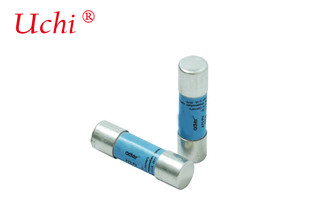

A74 gPV 14x51mm Midget Fuse 1500VDC 4~30A 10KA For Electric and Hybrid Electric Vehicles
Product Details:
| Place of Origin: | Germany/China |
| Brand Name: | ADLER |
| Certification: | UL etc. |
| Model Number: | A74 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Packaging Details: | Bulk |
| Delivery Time: | 3~4weeks |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000PCS/Month |
|
Detail Information |
|||
| Name: | A74 GPV 14x51mm Midget Fuse | Rated Voltage: | 4~30A |
|---|---|---|---|
| Rated Breaking Capacity: | 10KA | Dimensions: | 14x51mm |
| Application: | Battery Protection Etc.. | Series: | A74 |
| High Light: | slow blow glass fuse,radial lead fuse |
||
Product Description
A74 gPV 14x51mm Midget Fuse 1500VDC 4~30A 10KA For Electric and Hybrid Electric Vehicles
Midget Fuse A74_datasheet_20170317.pdf
Features
- 1500 VDC, 14x51mm PV fuse link
- Rated Current: 4~30A
- Rated Breaking Capacity: 10 kA
- Time Constant: ≤1ms
- Special design with silver plated caps for high-power PV applications
- Reference Standard:UL 2579/UL248
- Approvals: UL 2579 Listed(File:E464976)
Description
This A74 series fuse link is designed for circuits requiring gPV type DC fuses in photovoltaic systems up to 1000VDC, in particular against typical cyclical current flow currents as found in photovoltaic applications. Most common usage is in combiner boxes for string protection. It can also serve as alternate protection for high voltage accessories and circuits such as electric and hybrid electric vehicles, Battery protection etc..
Electrical Specificaitons
| Part Number | Current Rated | Breaking Capacity | I2t(A2s) | Max.Dissipation(W) | ||
| Pre-Arcing | Total at 1500V | 80% In | 100% In | |||
| A741400b00 | 4A | 10KA@1500V DC | 14.5 | 50 | 1.6 | 3.0 |
| A742150b00 | 15A | 310 | 900 | 1.8 | 3.0 | |
| A742200b00 | 20A | 200 | 340 | 5.5 | 7.0 | |
| A742250b00 | 25A | 295 | 400 | 5.5 | 7.0 | |
| A742300b00 | 30A | 380 | 450 | 5.5 | 7.0 | |
Note:
(1) DC cold resistance are measured at <10% of rated current in ambient temperature of 25°C
(2) Typical pre-arcing I²t measured at 10 In current
TIME VS CURRENT CHARACTERISTIC
| Rated current | 100% | 135% | 200% |
| 4A~30A | >4H | <1H | <4min |
Dimension
Application
PV combiner/ junction boxes
Inverters
Battery Charge Controllers
Time Current Curve
MATCHING FUSE HOLDERS/ ACCESSORIES:
BH200 holder for DIN rail mounting
Environmental
