Payment & Shipping Terms:
|Name:||14x51mm AF74 Fuse Blocks Holder 15 Amps 1500V DC||Suitable:||14x51mm AF74 Fuse|
|Rated Volage:||1500V DC||Rated Current:||0-30A|
|Withstand Rating, DC Amperes:||10kA@1500V DC||Material Flammability:||UL 94-V0 (PBT)/ UL91-V2 (PA6)|
|Mounting:||DIN Rail Mounting||Wire Diameters:||2.5mm² – 16mm²|
|UL File:||Pending||Manufacture Standards:||IEC60269; GB13539; RoHS Compliant|
mini glass fuses,
radial lead fuse

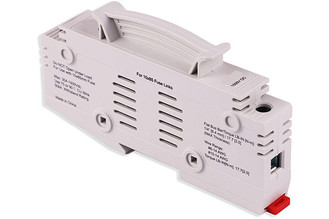

IEC60269 GB13539 10KA BH200 14x51mm AF74 Fuse Blocks Holder 15 Amps 1500V DC
The BH200 applies to 14x51mm fuse.These holders, in conjunction with A74 fuse, are the effective solution to safely reference modules from reserve over current conditions.Rated for up to above 15 Amps and 1500V DC, this holder, could supply a cost-effective solution to protect circuit overload.
|Withstand rating,DC Amperes||10KA/1500VDC|
|Material Flammability||UL 94-V0(PBT)/ UL91-VS(PA6)|
|Manufacture Standards||IEC60269; GB13539; RoHS compliant|
|Mounting||DIN Rail mounting|
|Wire diameters||2.5mm² – 16mm²|
Dimension in mm
