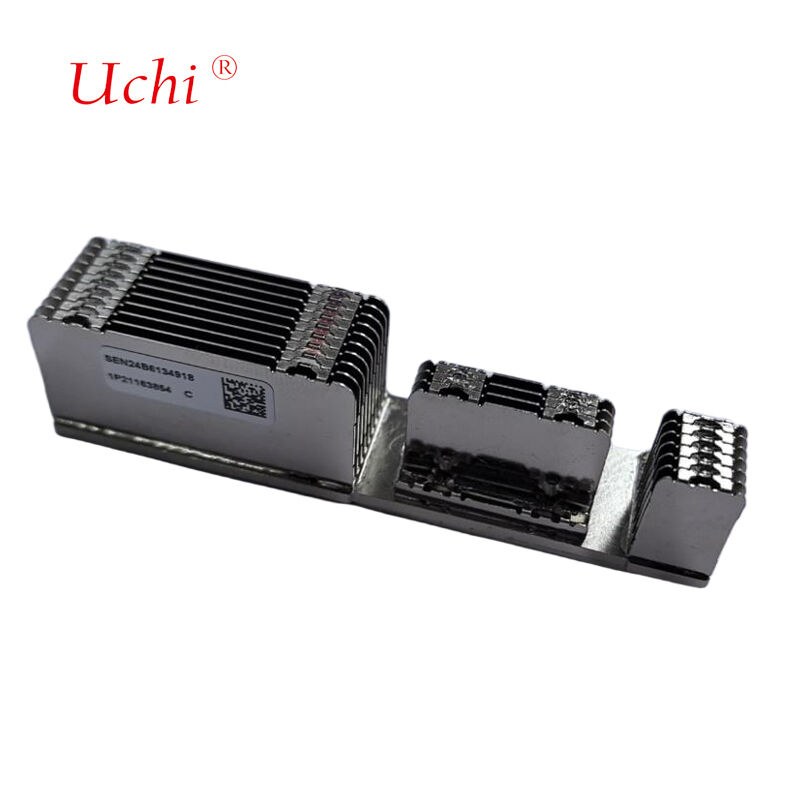

Multi-channel Optical Module Air-cooled Radiator, Suitable For High-density And High-speed Optical Modules
Product Details:
| Place of Origin: | Dongguan，Guangdong,China |
| Brand Name: | Uchi |
| Certification: | SMC |
| Model Number: | Air-cooled radiator 2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Payment Terms: | T/T，paypal， Western Union,MoneyGram |
| Supply Ability: | 50000000pcs per Month |
|
Detail Information |
|||
| Material: | Copper Base + Heat Dissipation Fins | (thermal Conductivity: | ≥ 380 W/m·K |
|---|---|---|---|
| Heat Dissipation Power: | ≥ 25W | Warranty: | 1 Year |
| Certification: | AS9100,IATF16949,ISO13485 | Dimensions: | Length Approx. 80–100 Mm, Integrated With Multiple Sets Of Fins |
| Highlight: | multi-channel optical module radiator,air-cooled radiator for high-speed modules,high-density optical module cooling plate |
||
Product Description
Multi-channel Optical Module Air-cooled Radiator
High-performance cooling solution designed for high-density and high-speed optical modules in demanding data center and telecommunications applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Copper base + heat dissipation fins (thermal conductivity ≥ 380 W/m*K) |
| Compatible Optical Module Types | OSFP/QSFP-DD (for 400G/800G/1.6T optical modules) |
| Heat Dissipation Power | Single-module power consumption support ≥ 25W (certain models compatible with liquid cooling interfaces) |
| Dimensions | Length approx. 80-100 mm, integrated with multiple sets of fins for enhanced air convection |
| Additional Functions | Certain models equipped with temperature sensor interfaces |
Application Fields
- 800G/1.6T high-speed optical modules for AI data centers (e.g., NVIDIA AI servers)
- High-density optical interconnection equipment for supercomputing centers
- Optical module clusters with rates above 400G for core nodes of cloud computing
Manufacturing Capabilities
Advanced Brazing Technology
Brass / Copper CNC
Aluminium / Zinc CNC
Stainless Steel / Steel CNC
Plastic CNC
Key Applications
Optical Module Heat Sink Applications
Production Equipment
Our advanced manufacturing facility includes:
- 10 units of low-temperature solder reflow ovens
- 5 units of baking ovens
- 20 units of automatic solder dispensing equipment
- 3 units of automatic solder brushing equipment
- 50 units of torque-controlled electric screwdrivers
- 1 unit of CCD inspection equipment
- 2 units of fully automatic optical module testing equipment
- 11 units of multi-station thermal performance testing equipment
- 4 units of flatness optical testing equipment
Automated Production Facility
Quality Assurance
We maintain rigorous quality standards with comprehensive testing equipment:
- 1 Coordinate Measuring Machine
- 1 projector instrument
- 2 water high pressure testing machines
- 4 thermal resistance testing machines
- 2 liquid leakage testing machines
Quality Certifications
Customer Service
- Prompt response to all inquiries
- Competitive pricing with guaranteed quality
- Efficient production scheduling
- Optimal transportation solutions
- Comprehensive technical support
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a professional manufacturer of heat sinks and water cooling plates with extensive experience and a strong technical team, featuring automated and mechanized production.
Have you exported goods before and to which regions?
60% of our total production is exported to Japan, India, UK, Canada, USA, and Brazil.
How many employees do you have?
Approximately 100 employees across sales, purchasing, engineering, QA, warehouse, and production departments.
Can you provide samples if we agree with the design?
Yes, we provide samples for confirmation before mass production, along with technical drawings if required.
What packing methods do you use?
Customized packing with normal cartons and tight-proof fabric or wooden cartons for optimal protection during transportation.
Do you provide technical support for product issues?
All products are fully inspected before shipping. For any issues, we provide immediate technical solutions.
