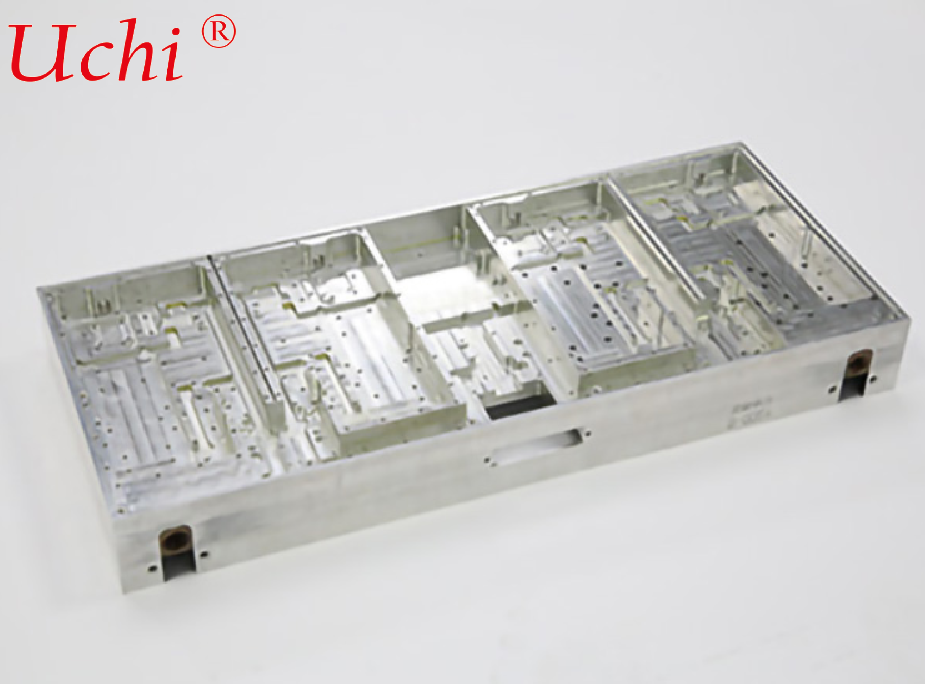

High-Frequency Injection Molded Cold Plate One-piece High-Pressure Die Cast Liquid Cooling Plate
Product Details:
| Place of Origin: | Dongguan，Guangdong,China |
| Brand Name: | UCHI |
| Certification: | UL.VDE,SGS,REACH,CQC,CSA.ISO.ROHS,CUL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bulk |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T,Paypal,Western Union, |
| Supply Ability: | 5000,000,000PCS Per Month |
|
Detail Information |
|||
| Tolerance: | 0.05 Mm | Finish: | Clean + Anodized |
|---|---|---|---|
| Treatment: | PassivationHeat Conducting | Working Pressure: | At Least 1 Bar |
| Surface Finish: | Mill Finish Or Anodization | Outletdiameter: | 1/4 Inch Or Customizable |
| Flow Rate: | Up To 5 L/min | Process: | CNC Machining+ Surface Treatment |
| Thermal Conductivity: | 73 W/m·K | Conducting Power: | 2000 W |
| Mountingtype: | Screw Mount | Heat Cooling Power: | 30W |
| Product Dimension: | Can Be Customized | Packing: | PE Bag Carton |
| Material: | Copper / Aluminum | ||
| Highlight: | High-Frequency Injection Molded Cold Plate,One-piece High-Pressure Die Cast Liquid Cooling Plate,Liquid Cooling Plate with Warranty |
||
Product Description
High-Frequency Injection Molded Cold Plate
One-piece High-Pressure Die Cast Liquid Cooling Plate | Aluminum Alloy Cold Plate for High-Power Integrated Heat Sources
Adopting high-frequency high-pressure injection one-piece forming process. Molten aluminum alloy is injected into the mold under high pressure to directly form complex enclosed internal flow channels. No subsequent plate splicing & welding required. Flow channels and cold plate body are integrally formed. Mounting brackets, threaded holes and manifold bases can be integrated in one part. It is the preferred integrated liquid cooling component for energy storage, power supplies, IGBTs and high-power electric controls.
Product Highlights
✅ One-piece injection forming, lower leakage risk
Formed in one single die casting process, eliminating large-area welding seams of multi-layer plates. The risk of leakage is greatly reduced. Flow channels and housing are integrated with high structural strength, excellent vibration and shock resistance for long-term operation in vehicle and energy storage cabinet.
✅ High flexibility of flow channel design, multi-function integration
Complex internal flow channels are pre-defined by mold. Mounting lugs, threaded posts, sensor cavities and manifold bases can be directly formed on the cold plate. It reduces secondary machining and component assembly, shortens assembly procedures and cuts BOM cost.
✅ High pressure resistance & excellent structural rigidity
High-density die-cast substrate with better rigidity than blow-up cold plates. Outstanding pressure resistance, less deformation under large plate and load-bearing working conditions.
✅ Suitable for mass production & stable delivery
High-frequency injection die casting enables fast forming, good batch consistency and stable yield, with obvious cost advantage for large-volume orders.
✅ Optional materials, compatible with multiple heat transfer fluids
Mainly adopt die-cast aluminum alloy with good thermal conductivity. Compatible with ethylene glycol antifreeze, pure water, dielectric coolant. Surface passivation and anodizing anti-corrosion treatment available.
Application Scenarios
Energy storage PCS liquid cooling, new energy electric controllers, high-power IGBT/SiC power modules, charging pile power supplies, industrial high-power power supplies, vehicle high-power thermal equipment.
Product Specifications (Template, adjust as required)
- Material: Die-cast Aluminum Alloy (AlSi10Mg, etc.)
- Forming Process: High-frequency high-pressure injection die casting, one-piece forming
- Flow Channel Type: Built-in curved / parallel / return complex channels (customized by mold)
- Port Type: Threaded fitting, quick-disconnect fitting, flange optional
- Working Pressure: ≤1.8MPa (high-pressure version customizable)
- Surface Treatment: As-cast, sand blasting, anodizing, passivation anti-corrosion
- Working Fluid: Ethylene glycol aqueous solution, pure water, dielectric coolant
- Key Features: One-piece forming, no splicing welds, high rigidity, suitable for mass production
