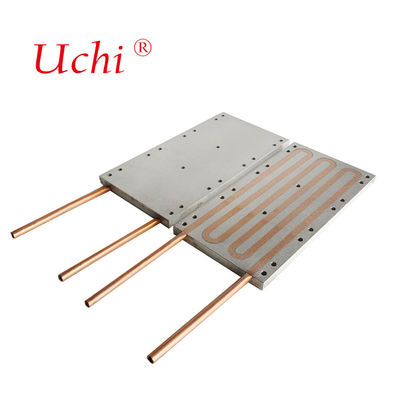

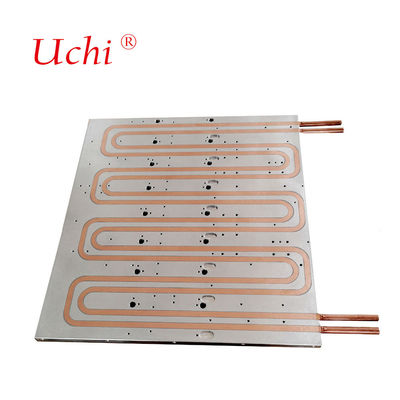

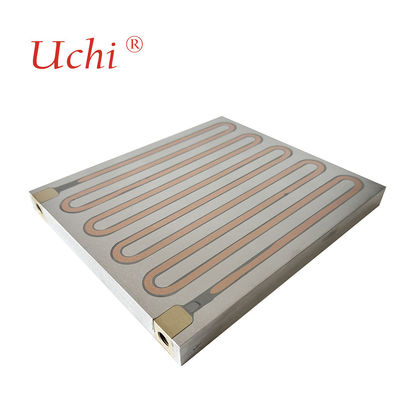

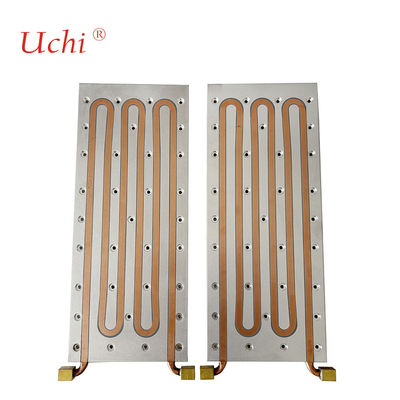

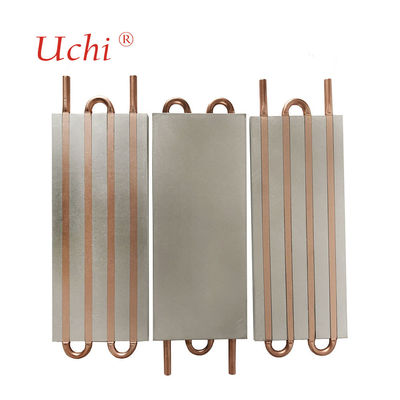

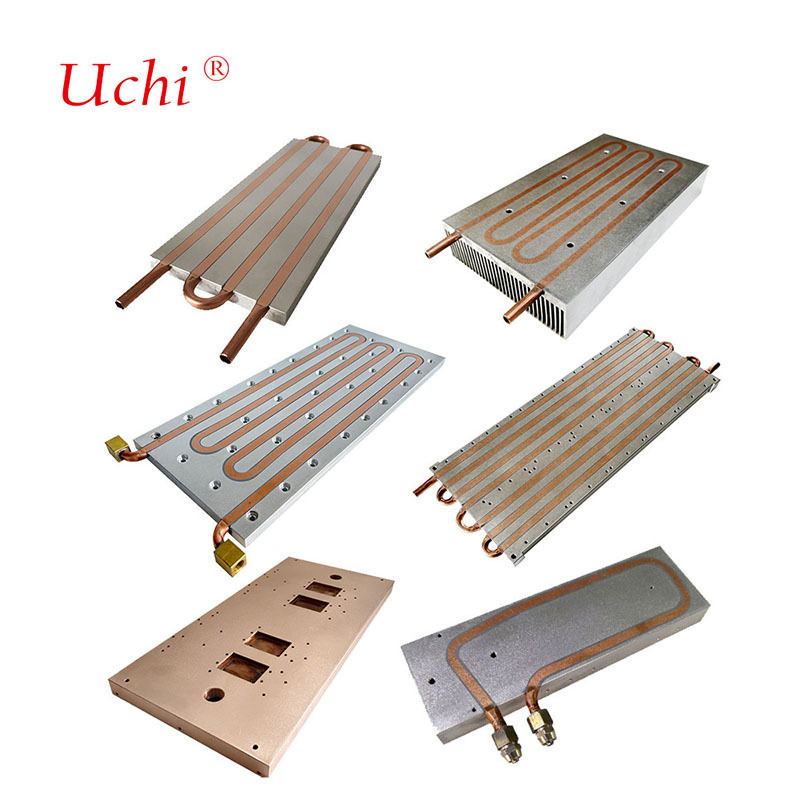

Liquid Cooled Plate For High-Efficiency Heat Dissipation
Product Details:
| Place of Origin: | Dongguan，Guangdong,China |
| Brand Name: | Uchi |
| Certification: | SMC |
| Model Number: | liquid cooled plate |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Payment Terms: | T/T，paypal， Western Union, MoneyGram |
| Supply Ability: | 50000000pcs per Month |
|
Detail Information |
|||
| Feature: | New Technology And High Power CoolingSurface | Process: | Epoxy Bonding |
|---|---|---|---|
| Material: | Aluminum Alloy, Copper | Shape: | Square |
| Certificate: | ISO 9001:2008,ISO 14001:2004, ROHS | Extra Process: | CNC Machining |
| Finish: | Clean + Anodized | Size: | Custom Size |
| Application: | IGBG Modules, Electronic Devices,Lasers | ||
| Highlight: | liquid cooling plate for heat dissipation,high-efficiency liquid cooling plate,liquid cooled plate with warranty |
||
Product Description
The liquid water cooling plate, also known as the liquid cooling heat dissipation plate, is the core heat exchange component of the liquid cooling system. Its interior features specially designed flow channels where coolant circulates to absorb and transfer heat away from components, releasing it through radiators or heat exchangers.
- Structural customization: Flow channel design (serpentine, parallel, microchannel) tailored to component power, shape, and thermal distribution
- Material options: Aluminum alloy (lightweight), copper (high conductivity), stainless steel (corrosion-resistant), or titanium alloy for specialized applications
- Sealing performance: High-pressure air tightness tested to prevent coolant leakage and protect electronics
- Standardized interfaces: Quick connectors and threaded interfaces for easy system integration
| Material | Aluminum, Aluminum+Copper tube |
|---|---|
| Detailed Size | Custom designed to customer specifications |
| Sample Service | Prototype samples available within 1 week |
| Production Process | Aluminum Plate Cutting → Grooves Making → Embedding Tubes (Friction Stir Welding) → Epoxy adhesive filling → CNC Machining → Cleaning → Inspection → Packing |
| Surface Treatment | Degreasing, (Black) Anodizing, Sand Blasting, Painting, Chromating, Laser marking |
| Reference Standard | ISO 9001:2008, ISO 14001:2004, ROHS |
| Experience | Over 10 years of professional manufacturing |
| Application | LED Lighting, Inverters, Welding Machines, Communication Devices, Power Supply Equipment, Electronic Industry, Thermoelectric Coolers/Generators, IGBT/UPS Cooling Systems, and other high-power devices |
Our heat sinks undergo comprehensive manufacturing processes including design, CNC machining, friction stir welding, soldering, assembly, skiving, extrusion, testing, and surface treatment.
Our cooling solutions are widely used in transportation, CPU computing, servers, LED lighting, laser equipment, air conditioning, and any electrical products requiring thermal management.
All products are securely packaged in EPE foam and cartons with wooden frame reinforcement. Larger cooling plates may use wooden crates with thick EPE lining for maximum protection during shipping.
