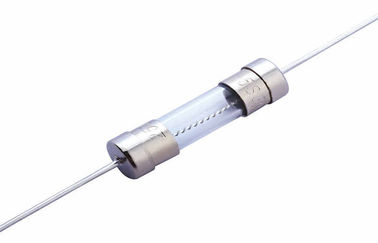

Littlefuse Glass Fuses 0672 002. Analogue 250V , 5x20mm fuses
Product Details:
Place of Origin: | Dongguan,China |
Brand Name: | UCHI |
Certification: | UL/CQC/SGS/CUL/VDE/CSA/PSE |
Model Number: | SFC1200AB2A |
Payment & Shipping Terms:
Minimum Order Quantity: | 5000PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Bulk 250 pcs in per poly bag; 10 poly bags in per inner box; 4 inner boxes in per outer carton |
Delivery Time: | 4~6 days |
Payment Terms: | T/T & Paypal &Western Union |
Supply Ability: | 100,000,000PCS per month |
Detail Information |
|||
High Light: | slow blow glass fuse,mini glass fuses |
---|
Product Description
Littlefuse Glass Fuses 0672 002. Analogue 250V , 5x20mm fuses
Quick Detail:
1. Thermoplastic Fuse
2. 300V available
3. Used for power supply,LED,CFL,PCB especially
4. Exact melting time
5. Stronger packing prevent damage when transport
6. Environmental Protection Material
7. Reel packing
Description:
Glass fuse is an electric element protecting electric devices. It is commonly connected with a circuit in series, and when fault current increases to a certain value, the fuse blows out to cut off the circuit so as to fulfill an aim of protecting other equipment in the circuit. The fuse is the most commonly used component in a over-current protection circuit. The traditional fuse mainly consists of two parts of a tube body, of which both ends have metal connecting terminals, and metal melt in the tube body. The majority of fuses are cylinder-shaped, namely cartridge construction. But nowadays, with the fast development of advanced technology, some special materials are well applied, the fuse industry has started to move forward in the direction of sub-miniature products and a series of new products such as Surface Mounted Devices type fuse are successively developed.
Applications:
Glass Fuse is suitable for various kinds of electronic devices’ circuit over current protection. Widely used in industrial of Lighting, Power supply and Adapter applications, etc.
Specifications:
1. Standards and Agency Approvals
1.1 Standards:In accordance with UL 248 -1 / -14.
1.2 Certification:
Voltage Rating |
Agency |
Ampere Range |
Agency File Number |
125V/250V |
UL |
200mA ~ 10A |
E340427(JDYX) |
C-UL |
200mA ~ 10A |
E340427( JDYX7) |
|
PSE |
200mA ~ 10A |
Pending |
|
KTL |
200mA ~ 10A |
Pending |
1.3 Catalogue No.,A=250V / B=125V,● Approved ○ Pending UL CUL PSE
Catalog No. |
Ampere Rating |
Voltage Rating |
Breaking Capacity |
I2TMelting Integral(A2.S) |
Agency Approvals |
||
|
|
PSE |
|||||
SFC0100A/B |
100mA |
250V/125V |
10000A@125 V AC (200mA~10A);
35A@250V AC (200mA~1A);
100A@250V AC (1.25A~3.5A);
200A@250V AC (4A~10A).
|
0.002 |
○ |
○ |
○ |
SFC0125A/B |
125mA |
250V/125V |
0.003 |
○ |
○ |
○ |
|
SFC0160A/B |
160mA |
250V/125V |
0.005 |
○ |
○ |
○ |
|
SFC0200A/B |
200mA |
250V/125V |
0.01 |
● |
● |
○ |
|
SFC0250A/B |
250mA |
250V/125V |
0.02 |
● |
● |
○ |
|
SFC0300A/B |
300mA |
250V/125V |
0.04 |
● |
● |
○ |
|
SFC0315A/B |
315mA |
250V/125V |
0.045 |
● |
● |
○ |
|
SFC0350A/B |
350mA |
250V/125V |
0.055 |
● |
● |
○ |
|
SFC0400A/B |
400mA |
250V/125V |
0.07 |
● |
● |
○ |
|
SFC0500A/B |
500mA |
250V/125V |
0.1 |
● |
● |
○ |
|
SFC0630A/B |
630mA |
250V/125V |
0.2 |
● |
● |
○ |
|
SFC0750A/B |
750mA |
250V/125V |
0.35 |
● |
● |
○ |
|
SFC0800A/B |
800mA |
250V/125V |
0.45 |
● |
● |
○ |
|
SFC1100A/B |
1A |
250V/125V |
0.9 |
● |
● |
○ |
|
SFC1125A/B |
1.25A |
250V/125V |
1.3 |
● |
● |
○ |
|
SFC1150A/B |
1.5A |
250V/125V |
1.6 |
● |
● |
○ |
|
SFC1160A/B |
1.6A |
250V/125V |
2.5 |
● |
● |
○ |
|
SFC1200A/B |
2A |
250V/125V |
5.8 |
● |
● |
○ |
|
SFC1250A/B |
2.5A |
250V/125V |
7.6 |
● |
● |
○ |
|
SFC1300A/B |
3A |
250V/125V |
8.1 |
● |
● |
○ |
|
SFC1315A/B |
3.15A |
250V/125V |
11 |
● |
● |
○ |
|
SFC1350A/B |
3.5A |
250V/125V |
19 |
● |
● |
○ |
|
SFC1400A/B |
4A |
250V/125V |
28 |
● |
● |
○ |
|
SFC1500A/B |
5A |
250V/125V |
40 |
● |
● |
○ |
|
SFC1600A/B |
6A |
250V/125V |
50 |
● |
● |
○ |
|
SFC1630A/B |
6.3A |
250V/125V |
64 |
● |
● |
○ |
|
SFC1700A/B |
7A |
250V/125V |
107 |
● |
● |
○ |
|
SFC1800A/B |
8A |
250V/125V |
133 |
● |
● |
○ |
|
SFC2100A/B |
10A |
250V/125V |
242 |
● |
● |
○ |
|
SFC2120A/B |
12A |
250V/125V |
- |
○ |
○ |
○ |
|
SFC2150A/B |
15A |
250V/125V |
- |
○ |
○ |
○ |
|
SFC2200A/B |
20A |
250V/125V |
- |
○ |
○ |
○ |
|
SFC2250A/B |
25A |
250V/125V |
- |
○ |
○ |
○ |
|
SFC2300A/B |
30A |
250V/125V |
- |
○ |
○ |
○ |
2. Product Marking
The fuses cap shall have the following markings.
Example:
Note:Size and position of the markings shall not be provided.
3. Appearances and Configuration
3.1 There shall not be any remarkable stain and crack on the appearances, markings shall be easily legible.
3.2 Configuration:Axial Leaded Miniature Glass Tube Fuse.
4. Dimensions and Structure
Unit: mm
5. Material Details
NO. |
Part Name |
Material |
1 |
Cap |
Nickel Plated Brass |
2 |
Body |
Glass Tube |
3 |
Fuse element |
Alloy |
④ |
Lead wire |
Tin Plated Copper |
6.Product Characteristics
6.1 Lead Pull Strength
5N for 10±1 Seconds
6.2 Lead Thrust Strength
2N for 10±1 Seconds
6.3 Solder ability
Wave : 260℃,≤3s;
Soldering Iron: 350±10℃,≤3s.
6.4 Soldering Heat Resistance
Wave : 260℃,10s;
Soldering Iron: 350℃,5s.
7. Electrical Characteristics
7.1 Test Condition
All electrical test is to be conducted with the ambient air at a temperature of 25±5℃.
7.2 Load capacity:
When the fuse loads through 100% of rated current, should blow within 4 hours.
7.3 Interrupting Rating:
Breaking Capacity:
10000A at125 V AC (SFC In range 200mA~10A);
35A at 250V AC (SFC In range 200mA~1A);
100A at 250V AC (SFC In range 1.25A~3.5A);
200A at 250V AC (SFC In range 4A~10A).
7.4 Rising Temperature Test:
When the 100% times of Ampere Rating passes the fuse, after reaching thermal balance , the temperature on the fuse surface rising shall not be higher than 75℃. Note: Rising temperature = the Surface temperature - Ambient temperature.
7.5 Operating Characteristics
% of Ampere Rating(In) |
Blowing Time |
100%* In |
4 hours Min |
135%* In |
1 hour Max |
200%* In |
5 sec Max |
7.6 Average Time Current Curves
8. Environmental Characteristic
8.1 Operating Temperature
-55℃~+125℃.
8.2 Stock Condition
Humidity:Relative humidity ≤ 75% store 3 years in average.
8.3 When choosing the fuse's specification, if the operating environmental temperature beyond the scope from 20~30℃, engineer should consider the environmental temperature's affection to fuses. Please refer: Temperature Rerating Curve:
9. Installation Recommendations
9.1Propose installation way as following picture.
A,Horizontal installation
B,Vertical installation
C,Vertical installation
9.2 Recommended Soldering Parameters
A. Wave Parameters:
Solder Pot Temperature: 260℃ Max
Solder Dwell Time: 2~5s
B. Hand-Solder Parameters:
Solder Iron Temperature: 350±5℃
Heating Time: 5s Max
10. Packaging
10.1 The following items indicated on the label:
Catalog number, ratings (voltage, current), interrupting type and safety mark.
The packing material conforms to ROHS/REACH/HF environmental protection request. And the packing materials will not have the chemical reaction with the components.
10.2 Packing Quantity
Bulk 250 pcs in per poly bag;
10 poly bags in per inner box;
4 inner boxes in per outer carton
10.3 Packing Size
Unit: mm
A. Inner box: |
B. Outer carton: |
L240±2 * W170±2 * H110±2 |
L390±5 * W240±5 * H250±5 |
|
|
11. Others
11.1 In the event that an impropriety is found beyond this specification, it shall be fixed by mutual agreement between the parties.
11.2 In the event that an impropriety is found in this specification, Dongguan Uchi ELECTRONICS CO., LTD. shall amend it by mutual agreement between the parties.
