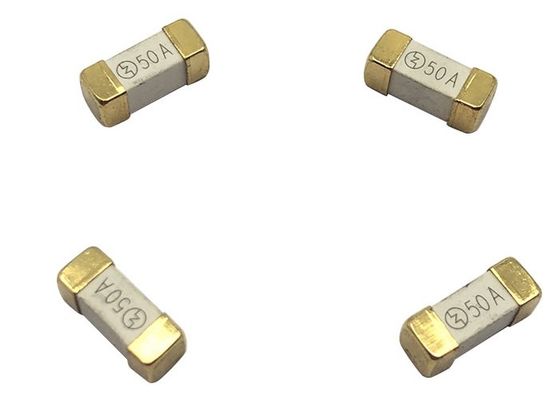

Quick Blow Ceramic Package SMD Cartridge Fuse 4512 50A 72VDC
Product Details:
| Place of Origin: | DONGGUAN,CHINA |
| Brand Name: | REOMAX |
| Certification: | UL,CUL |
| Model Number: | R1245F.50A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1500PCS (1 Reel) |
|---|---|
| Price: | 0.6~0.8 USD/PC |
| Packaging Details: | Tape in reel, 1500pcs per reel |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100,000PCS PER WEEK |
|
Detail Information |
|||
| NAME: | SMD Fuse | CURRENT: | 50 AMPERE |
|---|---|---|---|
| VOLTAGE: | 72VDC 63VDC 32VDC | I2TMelting Integral: | 3765(A2.S) |
| MOQ: | 1500PCS | MPQ: | 1500PCS PER REEL |
| FACTORY: | YES | SIZE: | 12.4mm*4.5mm |
| SPEED: | QUICK BLOW | ||
| High Light: | Ceramic Package SMD Cartridge Fuse,SMD Cartridge Fuse 4512,SMD Cartridge Fuse 50A |
||
Product Description
Quick Blow Ceramic Package SMD Cartridge Fuse 4512 50A 72VDC 63VDC 32VDC For Battery Protection
DESCRIPTION
SMD fuses can be divided into disposable SMD fuses and SMD resettable fuses. After protection, the disposable fuse needs to be replaced, and the power failure after protection can be self-recovered and reused.
SMD fuse is a new product with high technical content in the small fuse industry. SMD fuses can be divided into SMD current fuses and SMD resettable fuses.
SMD current fuses can be divided into the following numbers according to their size and performance:
(1) Product size can be divided into: 0603 0805 1206 6125 1032 1245 4512
(2) Products can be divided into three types according to their properties: fast fusion, slow fusion and enhanced melting heat.
SMD resettable fuses can be classified by size as follows: SMD packages are 0805 0603 1206 1210 1812 2920 2018
If chip fuses have high requirements, they are usually made of thin films with ultra-low internal resistance and are suitable for overcurrent protection such as surges. Computer peripheral products, mobile phones and other communication equipment, digital cameras, monitors, and batteries are commonly used. Manufacturers who can use this technology have a certain scale.
SMD fuses can be divided into disposable SMD fuses and SMD resettable fuses. The disposable fuse needs to be replaced after protection, and the power failure after protection can be recovered and reused
Typical Application
SMD fuse: used in power supplies, switching power supplies, chargers, LED drive power supplies, LED lamps, 5G communication power supplies, etc.
Electrical Tools
BMS
5G Telecom
Telecom power supply
Cloud computing supply
Server storage system
Battery management system
Energy storage system
AC Charging Pile
Industrial equipment
LCD/PDP TV
Backlight inverter
Game systems
White goods
Automotive
Features
- Fast Acting High current brick fuse
- Surface mount deign to save space
- Ceramic Suqare body with end cap design
- Designed to UL248-1/1
- High current rating available
- Low temperature de‐rating
- RoHS compliant, Halogen Free
Ordering Information
|
Part No. |
Ampere Rating |
Voltage Rating |
Breaking Capacity |
Nominal Cold Resistance (Ohms) |
I2TMelting Integral(A2.S) |
Agency Approvals |
|
| UL | CUL | ||||||
|
R1245F.50 |
50A | 250V/125VAC/DC72V63V/32VDC |
200A@250VAC 500A:@125VAC 1000A@72V63V/32VDC |
0.000920 | 3765 |
● |
● |
Standards and Agency Approvals
Standards:In accordance with UL 248-14.
|
Agency |
Ampere Range |
Agency File Number |
| UL | 15A ~ 100A | E502159 (JDYX2) |
| CUL | 15A ~ 100A | E502159 (JDYX8) |
Operation Time
|
% of Ampere Rating(In) |
Blowing Time |
| 100% * In | 4 hours Min |
| 200% * In | 60 sec Max |
Breaking Capacity
200A @250VAC500A:@125VAC 1000A@72V63V/32VDC
Dimensional Drawing (Unit:mm)
|
NO. |
Part Name |
Material |
| 1 | End caps | Au Plated Brass Cap |
| 2 | Body | Non-Transparent Square Ceramic Tube |
| 3 | Fuse element | Cu-Ag Alloy wire |
Reliability
|
NO. |
Item |
Content |
Reference standards |
|
|
Product Marking |
Brand, Ampere Rating | Marking standards |
|
|
Operating Temperature |
-55°C to 125°C | –55ºC to 125ºC with proper derating |
|
|
Solderability |
T=240°C±5±5°C , t=3sec±0.5sec, Coverage≥95% |
MIL-STD-202, Method 208 |
|
|
Resistance to Soldering Heat |
10 sec at 260°C | MIL-STD-202, Method 210, Test condition B |
|
|
Insulation Resistance (after Opening) |
10,000 ohms minimum | MIL-STD-202, Method 302, Test Condition A |
|
|
Thermal Shock |
5 cycles, -65°C / +125°C, 15 minutes at each extreme | MIL-STD-202, Method 107, Test Condition B |
|
|
Mechanical Shock |
100G’s peak for 6 milliseconds, 3cycles | MIL-STD-202, Method 213, Test I |
|
|
Vibration |
0.03”amplitude, 10-55 Hz in 1 min. 2hrs each XYZ=6hrs | MIL-STD-202, Method 201 |
|
|
Moisture Resistance |
10 cycles | MIL-STD-202, Method 106 |
|
|
Salt Spray |
5% salt solution, 48hrs | MIL-STD-202, Method 101, Test Condition B |
