Slow Blow 350V 1025 1245 4512 Fast Acting Glass Fuse
Product Details:
| Place of Origin: | DONGGUAN,CHINA |
| Brand Name: | REOMAX |
| Certification: | UL,CUL,CQC,KC,VDE |
| Model Number: | SET |
Payment & Shipping Terms:
| Minimum Order Quantity: | ONE REEL(1K/2K) |
|---|---|
| Price: | 0.03~5 |
| Packaging Details: | TAPE IN REEL,1K OR 2K PER REEL |
| Delivery Time: | 5-7 DAYS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100,000,000PCS PER WEEK |
|
Detail Information |
|||
| PRODUCT NAME: | SURFACE MOUNT FUSE | SIZE: | 0603,1206,2410,1032,1245 |
|---|---|---|---|
| VOLTAGE: | 63V/72V/125V/250V/300V/350V/400V/500V | CURRENT: | 200mA-100A |
| SPEED: | SLOW BLOW OR FAST BLOW | STANDARD: | UL 248-14 |
| APPLICATION: | POWER SUPPLY,LED LIGHTING,BMS,UPS,POWER ADAPTER ETC. | PACKAGE: | TAPE IN REEL |
| MOQ: | ONE REEL | AGENCY: | UL,CUL,KC,VDE,CQC |
| ORIGIN: | MADE IN CHINA | ENVIRONMENT: | ROHS,REACH,MSDS |
| STOCKS: | SOME | LEAD TIME: | 5-7 DAYS IF W/O STOCKS |
| CUSTOMIZED: | YES | NO OF R&D: | 10 |
| QC: | 8 | FACTORY: | YES |
| DISTANCE FROM AIRPORT: | 50KM | SMALL ORDER: | ACCEPTTABLE |
| Highlight: | 1025 Fast Acting Glass Fuse,1245 Fast Acting Glass Fuse |
||
Product Description

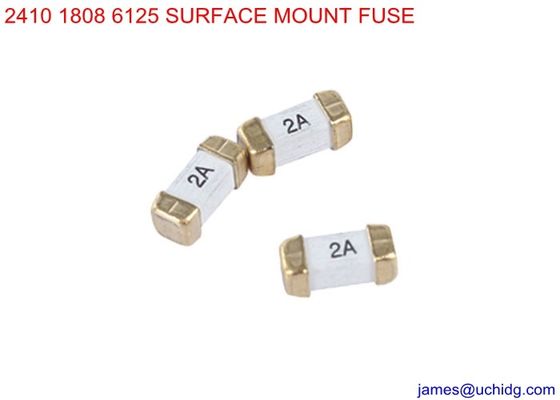

0603 SLOW BLOW SMD Fuse 1206 SURFACE MOUNT FUSE 2410 1808 6125 CERAMIC FUSE 1032 1025 1245 4512 FAST ACTING GLASS FUSE
DESCRIPTION
SURFACE MOUNT FUSES ARE IN CERAMIC TUBE AND END CAP CONSTRUCTIONS, MEET ROHS ,HALOGEN AND LEAD EXEMPTS REQUIREMENTS ROHS DIRECTIVE 2002/95/EC, APPROVALS APPROVED BY UL,CUL,VDE,KC,CQC. SURFACE MOUNT FUSE CAN PROVIDE PRIMARY AND SECONDARY CIRCUIT PROTECTION IN LOTS OF APPLICATIONS. EXCELLENT ABILITY ON INRUSH CURRENT WITHSTANDING, AS WELL AS THERMAL AND MECHANIC SHOCK AND HIGH RELIABILITY AND STABLE SOLDER ABILITY, END CAPS IS AVAILABLE IN GOLD OR SLIVER PLATED.
APPLICATIONS
• LED LIGHTING
• BMS
• Notebook PC
• Battery devices
• LCD/PDP devices
• LCD backlight inverter
• Portable Devices
• Power supply
• Networking devices
• PC server
• Cooling fan system
• Storage system
• Telecom system
• Wireless base station
• White goods
• Game console
• Office equipment
• Digital camera
• Industrial equipment
• Medical equipment
• Automotive devices
FEATURES
• EXCELLENT ON BLOWING
• Small size
• Wide range of current rating available
• Wide operating temperature range
• Low temperature de-rating
• RoHS compliant
• Tape and Reel for automatic placement
• Conflict free metals
SIZE (unit:mm)

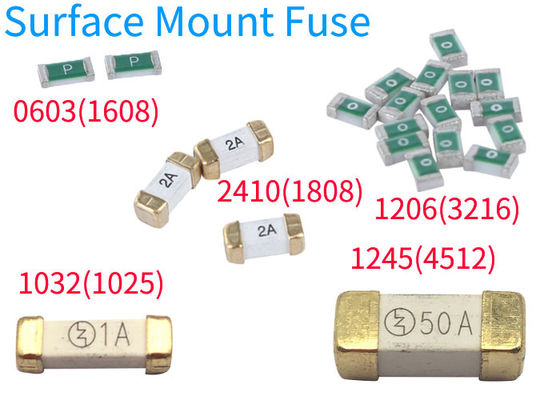

0603 1608 SURFACE MOUNT FUSE
1206 3216 SMD FUSE
2410 6125 1808 CERAMIC FUSE
1032 1025 GLASS FUSE

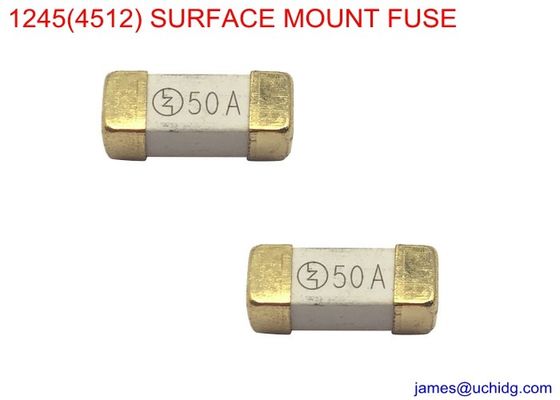

1245 4512 SMT FUSE
Specifications
|
Part No. |
Ampere Rating |
Voltage Rating |
Breaking Capacity |
Nominal Cold Resistance (Ohms) |
I2TMelting Integral(A2.S) |
Agency Approvals |
|
| UL | CUL | ||||||
| R1245F.15 | 15A |
250V/125VAC/DC 72V63V/32VDC |
200A@250VAC 500A:@125VAC 1000A@72V63V/32VDC |
0.0033 | 365 | ● | ● |
| R1245F.20 | 20A | 0.0025 | 630 | ● | ● | ||
| R1245F.25 | 25A | 0.0018 | 1000 | ● | ● | ||
| R1245F.30 | 30A | 0.0014 | 1750 | ● | ● | ||
|
Part No. |
Ampere Rating |
Voltage Rating |
Breaking Capacity |
Nominal Cold Resistance (Ohms) |
I2TMelting Integral(A2.S) |
Agency Approvals |
|
| UL | CUL | ||||||
| 1032T.0200 | 200mA |
250V/AC/DC 125V/AC/DC 300VAC/DC 72V/DC
|
500A@72V 200A@125V250V 200A@300V |
2.550 | 0.08 | ● | ● |
| 1032T.0250 | 250mA | 1.630 | 0.218 | ● | ● | ||
| 1032T.0300 | 300mA | 1.102 | 0.387 | ● | ● | ||
| 1032T.0315 | 315mA | 1.040 | 0.367 | ● | ● | ||
| 1032T.0375 | 375mA | 0.621 | 0.631 | ● | ● | ||
| 1032T.0400 | 400mA | 0.600 | 0.650 | ● | ● | ||
| 1032T.0500 | 500mA | 0.551 | 1.01 | ● | ● | ||
| 1032T.0600 | 600mA | 0.360 | 2.01 | ● | ● | ||
| 1032T.0630 | 630mA | 0.351 | 2.02 | ● | ● | ||
| 1032T.0700 | 700mA | 0.190 | 3.73 | ● | ● | ||
| 1032T.0750 | 750mA | 0.186 | 3.83 | ● | ● | ||
| 1032T.0800 | 800mA | 0.180 | 3.91 | ● | ● | ||
| 1032T.1100 | 1A | 0.177 | 4.01 | ● | ● | ||
| 1032T.1125 | 1.25A | 0.112 | 7.34 | ● | ● | ||
| 1032T.1150 | 1.5A | 0.072 | 11.92 | ● | ● | ||
| 1032T.1160 | 1.6A | 0.071 | 12.63 | ● | ● | ||
| 1032T.1200 | 2A | 0.054 | 14.40 | ● | ● | ||
| 1032T.1250 | 2.5A | 0.041 | 28.12 | ● | ● | ||
| 1032T.1300 | 3A | 0.032 | 45.3 | ● | ● | ||
| 1032T.1315 | 3.15A | 0.031 | 45.6 | ● | ● | ||
| 1032T.1350 | 3.5A | 0.024 | 63.5 | ● | ● | ||
| 1032T.1400 | 4A | 0.022 | 64.1 | ● | ● | ||
| 1032T.1500 | 5A | 0.015 | 112.0 | ● | ● | ||
| 1032T.1600 | 6A | 0.013 | 145.3 | ● | ● | ||
| 1032T.1630 | 6.3A | 0.012 | 145.6 | ● | ● | ||
| 1032T.1700 | 7A | 0.0083 | 147.2 | ● | ● | ||
| 1032T.1800 | 8A | 0.0080 | 161 | ● | ● | ||
| 1032T.2100 | 10 | 0.0053 | 170 | ● | ● | ||
| 1032T.2120 | 12A | 0.0045 | 187 | ● | ● | ||
| 1032T.2150 | 15A | 0.0038 | 337 | ● | ● | ||
| 1032T.2160 | 16A | 0.0032 | 338 | ● | ● | ||
| 1032T.2200 | 20A | 0.0024 | 720 | ● | ● | ||
| 1032T.2250 | 25A | 0.0018 | 1182 | ● | ● | ||
| 1032T.2300 | 30A | 0.0014 | 2050 | ● | ● | ||
| 1032T.2400 | 40A | 0.0012 | 3750 | ● | ● | ||
|
Part No. |
Ampere Rating |
Voltage Rating |
Nominal Cold Resistance (Ohms) |
I2TMelting Integral(A2.S) |
Agency Approvals |
||||||
| UL | CUL | VDE | CQC | PSE |
KC
|
||||||
| SET0160 | 160mA | 250V | 2.300 | 0.058 | ● | ● | ○ | ○ | ○ | ○ | |
| SET0200 | 200mA | 250V | 1.650 | 0.062 | ● | ● | ○ | ○ | ○ | ○ | |
| SET0250 | 250mA | 250V | 1.450 | 0.065 | ● | ● | ○ | ● | ○ | ● | |
| SET0300 | 300mA | 250V | 0.850 | 0.191 | ● | ● | ○ | ○ | ○ | ○ | |
| SET0315 | 315mA | 250V | 0.650 | 0.202 | ● | ● | ○ | ○ | ○ | ○ | |
| SET0375 | 375mA | 250V | 0.610 | 0.330 | ● | ● | ○ | ○ | ○ | ○ | |
| SET0400 | 400mA | 250V | 0.580 | 0.338 | ● | ● | ○ | ○ | ○ | ○ | |
| SET0500 | 500mA | 250V | 0.320 | 0.475 | ● | ● | ● | ● | ● | ● | |
| SET0600 | 600mA | 250V | 0.265 | 0.775 | ● | ● | ○ | ○ | ○ | ○ | |
| SET0630 | 630mA | 250V | 0.256 | 0.986 | ● | ● | ○ | ○ | ○ | ○ | |
| SET0700 | 700mA | 250V | 0.230 | 2.105 | ● | ● | ○ | ○ | ○ | ○ | |
| SET0750 | 750mA | 250V | 0.225 | 2.240 | ● | ● | ○ | ○ | ○ | ○ | |
| SET0800 | 800mA | 250V | 0.203 | 2.380 | ● | ● | ○ | ○ | ○ | ○ | |
| SET1100 | 1A | 250V | 0.128 | 3.690 | ● | ● | ● | ● | ● | ● | |
| SET1125 | 1.25A | 250V | 0.092 | 3.760 | ● | ● | ○ | ○ | ○ | ○ | |
| SET1150 | 1.5A | 250V | 0.085 | 6.765 | ● | ● | ○ | ○ | ○ | ○ | |
| SET1160 | 1.6A | 250V | 0.075 | 6.805 | ● | ● | ○ | ○ | ○ | ○ | |
| SET1200 | 2A | 250V | 0.038 | 12.150 | ● | ● | ● | ● | ● | ● | |
| SET1250 | 2.5A | 250V | 0.035 | 16.025 | ● | ● | ○ | ○ | ○ | ○ | |
| SET1300 | 3A | 250V | 0.026 | 21.560 | ● | ● | ○ | ● | ○ | ● | |
| SET1315 | 3.15A | 250V | 0.025 | 25.750 | ● | ● | ● | ● | ○ | ● | |
| SET1350 | 3.5A | 250V | 0.023 | 30.050 | ● | ● | ○ | ○ | ○ | ○ | |
| SET1400 | 4A | 250V | 0.019 | 43.208 | ● | ● | ○ | ○ | ○ | ○ | |
| SET1500 | 5A | 250V | 0.013 | 55.250 | ● | ● | ○ | ● | ○ | ● | |
| SET1600 | 6A | 250V | 0.011 | 75.245 | ● | ● | ○ | ○ | ○ | ○ | |
| SET1630 | 6.3A | 250V | 0.010 | 93.550 | ● | ● | ○ | ● | ○ | ● | |
| SET1700 | 7A | 250V | 0.009 | 97.120 | ● | ● | ○ | ○ | ○ | ○ | |
| SET1800 | 8A | 250V | 0.0078 | 108.750 | ○ | ○ | ○ | ○ | ○ | ○ | |
| SET2100 | 10A | 250V | 0.0066 | 118.380 | ○ | ○ | ○ | ○ | ○ | ○ | |
| SET2120 | 12A | 250V | 0.0045 | 140.080 | ○ | ○ | ○ | ○ | ○ | ○ | |
| SET2150 | 15A | 250V | 0.0030 | 210.680 | ○ | ○ | ○ | ○ | ○ | ○ | |
