Product Details:

Certification: CQC,UL,CUL,ROHS,REACH
Model Number: STE1200

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Price: 0.028~0.3USD/PC
Packaging Details: Tape,30K/Carton
Delivery Time: 5-7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000000PCS Per Month
Get Best Price Contact Now

Detail Information

Name: Surface Mount Fuses Current Rating: 1.5A
Voltage Rating - AC: 125V Response Time: Fast F
Voltage Rating - DC: 125V Package / Case: 2410 (6125 Metric)
High Light:

slow blow glass fuse

,

mini glass fuses

Product Description

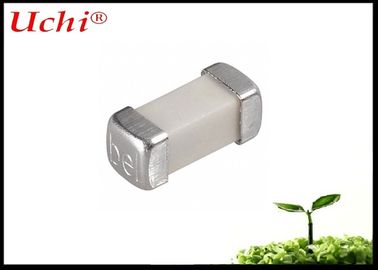

2410SFV1.50FM/125-2 Cartridge Style Board Mount Fast Blow 1.5 A 125 VDC 2410 Fast-Acting SMT Fuses





2410 fuses feature a straight, in-air wire element design

2410 wire-in air SMD fuses are very suitable for secondary level over-current protection applications. These lead-free surface mount devices offer increased reliability and have eliminated the risk of end cap removal common in traditional ceramic body fuses. Additionally, the straight in-air wire element has demonstrated consistent fusing and cutting characteristics. These 2410 fuses utilize nickel and tin plated copper terminations and feature high reliability and resilience with strong arc suppression characteristics.


Application

Industrial equipment
Backlight inverters
Power supplier
Networking
Automotive


Features

Halogen free, RoHS-compliant and 100% lead-free
Copper or copper alloy composite fuse link
Fiberglass enforced epoxy fuse body
Wide range of current rating
-55°C to 125°C operating temperature range




Certification



Agency Ampere Range Agency File Number
UL 50mA ~ 15A E340427(JDYX2)
CUL 50mA ~ 15A E340427(JDYX8)
CQC 500mA/1A/2A CQC18012206754
ROHS 50mA ~ 15A SZC18111684512
REACH 50mA ~ 15A SZC18030584513-3





Melting Features



% of Ampere Rating(In) Blowing Time
100% * In 4 hours Min
200% * In 120 sec Max
1000% * In 10ms Min





Specification





Catalog Ampere
Rating
Voltage
Rating
Breaking
Capacity
Nominal Cold
Resistance(Ohms)
I2TMelting
Integral(A2.S)
No.
SFE0250 250mA 125VAC 50A@300VAC 50A@250VAC 200A@125VAC 0.86 0.145
SFE0300 300mA 0.62 0.162
SFE0315 315mA 0.55 0.189
SFE0375 375mA 0.47 0.2
SFE0400 400mA 0.38 0.238
SFE0500 500mA 0.32 0.275
SFE0600 600mA 0.285 0.47
SFE0630 630mA 0.256 0.566
SFE0700 700mA 0.208 0.805
SFE0750 750mA 0.175 1.24
SFE0800 800mA 0.155 1.88
SFE1100 1A 0.148 3.5
SFE1125 1.25A 0.102 4.76
SFE1150 1.5A 0.085 6.305
SFE1200 2A 0.044 8.95
SFE1250 2.5A 0.043 16.025
SFE1300 3A 0.033 21.56
SFE1315 3.15A 0.029 22.75
SFE1350 3.5A 0.027 27.05
SFE1400 4A 0.025 31.808
SFE1500 5A 0.019 40.25
SFE1600 6A 0.018 67.245
SFE1630 6.3A 0.017 73.55
SFE1700 7A 0.016 76.28
SFE1800 8A 0.015 80.75
SFE2100 10A 0.014 110.38
SFE2120 12A 0.013 158.08
SFE2150 15A 0.012 160.68


BENEFITS

• Very fast acting at 200% overload current level
• Excellent inrush current withstand capability
• High reliability and resilience
• Strong arc suppression characteristics
• Copper terminal with nickel and tin plating


Dimension (mm)

2410SFV1.50FM /125-2 Cartridge Style Board Mount Fast Blow 1.5 A 125 VDC 2410 SMT Fuses 0


Recommended Pad Layout mm (Inch)

2410SFV1.50FM /125-2 Cartridge Style Board Mount Fast Blow 1.5 A 125 VDC 2410 SMT Fuses 1
