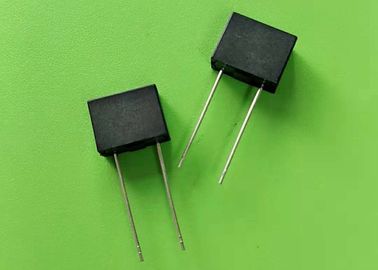

12.4x6.4x9.8mm Plastic Shell Super Time-Lag Subminiature Fuse AC 250V 300V T 4A 5A For LED Driver Circuit





Description



Following electronic product specifications apply to fuses of the 938 series. The 938 series is a super time lag type subminiature fuse for over-current protection.
Its main applications are for consumer electronics, LED drivers, power supplies, battery chargers and controllers for industrial use.





GENERAL INFORMATION



The 938 series provides protection for printed circuit boards used in a large variety of
applications that need fuses with time-delay, low breaking capacity. The sub-miniature device is
constructed of a plastic cap and base with a tin plated copper lead wire. It offers excellent
mounting characteristics and is 100% tested for cold resistance.




Detailed Features


• Subminiature fuse with time delay, low breaking capacity.
• Small, rectangular and leaded design minimizes board space and eliminates the need for additional mounting components.
• Plastic cap / black thermoplastic fuse body.
• 0.6mm lead wires made of tin plated copper.
• Protection against harmful over-currents in primary and secondary applications.
• Lead-free, Halogen-free, RoHS compliant.
• Designed according to IEC 60127-4.





Features



Time-Current characteristic: Time-Lag(T)
Breaking Capacity: 200A@250Vac, 100A@300Vac
Standard: IEC 60127
Approvals: CQC
Material: Body- thermoplastic, lead- tin-plating copper
Operation Temperature: -55℃ ~ +125℃
Weldability: 260℃≤10 seconds(wave-soldering), 350℃≤3 seconds(hand welding)
Soldering Peak: 260℃, 10 seconds, /280℃, 5 seconds
Storage conditions: +10℃ ~ +60℃,average annual relative humidity ≤75%,dry maximum value of 30 days is 95%





Dimensions (units: mm)



12.4x6.4x9.8mm Plastic Shell Time Lag Subminiature Fuse AC 250V 300V T 4A 5A For LED Driver Circuit 0



Operating Temperature: -55°C to +125°C
Storage Conditions:
+10℃ to +60℃
Relative humidity: ≤ 75% yearly average without dew, maximum 30 days at 95%





ELECTRICAL SPECIFICATIONS



Time vs Current Characteristics Table-- IEC 60127
(measured with constant current power supply)



Rated Current 125% 200% 1000%
4A/5A >3600 sec <120 sec 100msec~1sec





Electrical Characteristics



Rated Current Rated Voltage Breaking Capacity Nominal Cold
Resistance
(mΩ) ±30%
Voltage Drop
Max(mV)
Power
Dissipation
Max(mW)
Melting
I²t(A²s)
Max
4A 250V/300V 200A@250V AC
100A@300V AC
18.0 300 1500 370
5A 250V/300V 13.5 300 1500 750



Notes:

1. Permissible continuous operating current is ≤100% at ambient temperature of 23°C (73.4°F)
2. The current values used for calculating I2T should be within the standard range of 10In





Soldering parameters



260±5℃.≤5 sec (Wave Soldering)
350℃.≤3 sec (Hand Soldering)
Soldering Peak:
260±5℃ < 10 sec (IEC 60068-20)





Packaging



Tape in reel

1000pcs per box , 1.1kg/box

10000pcs per carton ,12kg.carton
