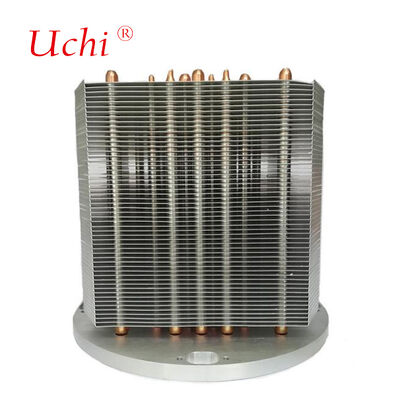

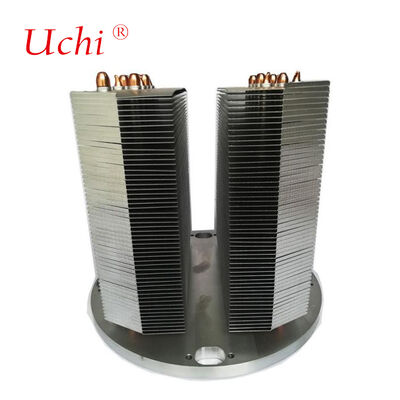

High Power 500w Led Soldering Heat Sink
Product Details:
| Place of Origin: | Dongguan，Guangdong,China |
| Brand Name: | Uchi |
| Certification: | SMC |
| Model Number: | Heat Sink |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Payment Terms: | T/T，paypal， Western Union,MoneyGram |
| Supply Ability: | 50000000pcs per Month |
|
Detail Information |
|||
| Heat Conducting Power: | 30W | Fan Life: | 50000 Hrs |
|---|---|---|---|
| Material: | AL 6063 | Size: | Custom Size |
| Technology: | CNC Maching + Surface Finish | Certification: | ISO9001:2015 ISO9001:14001 |
| Surface Treatment: | Stamping + Surface Finish | Feature: | High Efficiency Heat Conducting |
| Highlight: | 500W high power LED soldering heat sink,LED soldering heat sink with cooling plate,500W soldering heat sink for electronics |
||
Product Description
High Power 500W LED Soldering Heat Sink
Professional-grade heat sink solution designed for high-power LED applications with advanced thermal management capabilities.
| Specification | Details |
|---|---|
| Size | Custom size |
| Body Color | Silver |
| Shape | Square |
| Process | Extruded |
| Material | AL 6063 |
| Finish | Clean + Anodized |
| Extra Process | CNC Machining |
| Packing | Standing Export Packing |
| Application | LED Light |
Heat Sink Technology Overview
Current heat pipe and zipper fin heat sinks utilize two primary collection modes: welding (solder) and fin penetration. Welding processes offer lower interface resistance but require higher precision and cost, particularly for aluminum fins and copper heat pipe combinations that often necessitate electroplating for proper bonding.
Modern air-cooled heat sinks consist of three main components: base, heat pipe, and fins. Each component significantly impacts overall cooling effectiveness, with performance optimization requiring balanced integration rather than isolated improvements.
Primary Application Fields
- 100G/200G pluggable optical modules for data center switches
- Small optical modules for fronthaul/mid-haul equipment of 5G base stations
- Low-power optical communication components for edge computing nodes
Manufacturing Capabilities
Advanced Brazing Technology
Brass / Copper CNC Machining
Aluminium / Zinc CNC Machining
Stainless Steel / Steel CNC Machining
Plastic CNC Machining
Key Applications
New Energy Vehicles
Thermal management of battery packs, motor controllers, inverters, etc.
Industrial Electronics
Inverters, IGBT modules, high-power semiconductor devices, laser equipment, etc.
Data Center and Server
Cooling of high-performance computing components such as CPU, GPU, and memory.
Medical Devices
Temperature control of high-precision electronic equipment such as imaging equipment and diagnostic instruments.
Aerospace and Military
Applications such as airborne equipment and radar systems that have extremely high requirements for heat dissipation performance and reliability.
Power Electronics
High-power equipment such as rectifiers, transformers, and power modules.
Renewable Energy
Photovoltaic inverters, wind turbine converters, etc.
LED Lighting
Heat dissipation of high-power LED lamps.
Production Equipment
Our manufacturing facility features comprehensive air-cooled equipment including 10 low-temperature solder reflow ovens, 5 baking ovens, 20 automatic solder dispensing units, 3 automatic solder brushing machines, 50 torque-controlled electric screwdrivers, CCD inspection equipment, fully automatic optical module testing systems, multi-station thermal performance testing equipment, and flatness optical testing instruments.
Quality Assurance
We maintain rigorous quality standards with advanced testing equipment including Coordinate Measuring Machines, projector instruments, water high pressure testing machines, thermal resistance testing systems, and liquid leakage testing equipment.
Customer Service
- Prompt response to all inquiries
- Competitive pricing with guaranteed quality
- Efficient production scheduling
- Optimal transportation solutions
- Comprehensive technical support
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a professional manufacturer of heat sinks and water cooling plates with extensive experience and a strong technical team, featuring automated and mechanized production.
Have you exported goods before and to which regions?
60% of our total production is exported to Japan, India, UK, Canada, USA, and Brazil.
How many employees do you have?
Approximately 100 employees across sales, purchasing, engineering, QA, warehouse, and production departments.
Can you provide samples if we agree with the design?
Yes, we provide samples for confirmation before mass production, along with technical drawings if required.
What packing methods do you use?
Customized packing with normal cartons and tight-proof fabric or wooden cartons for optimal protection during transportation.
Do you provide technical support for product issues?
All products are fully inspected before shipping. For any issues, we provide immediate technical solutions.
