Curved Round Structure Heat Pipe Heat Sink For Air Conditioning
Product Details:
| Place of Origin: | Dongguan，Guangdong,China |
| Brand Name: | Uchi |
| Certification: | SMC |
| Model Number: | Heat Pipe Heat Sink |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Payment Terms: | T/T，paypal， Western Union,MoneyGram |
| Supply Ability: | 50000000pcs per Month |
|
Detail Information |
|||
| Heat Conducting Power: | 90W | Fan Life: | 50000 Hrs |
|---|---|---|---|
| Material: | CU 1100 | Diameter: | 12 Mm |
| Certification: | ISO9001:2015 ISO9001:14001 | Surface Treatment: | Passivation |
| Feature: | High Pressure Of Water Transmitting | ||
| Highlight: | curved heat pipe heat sink,round structure cooling plate,air conditioning heat sink |
||
Product Description

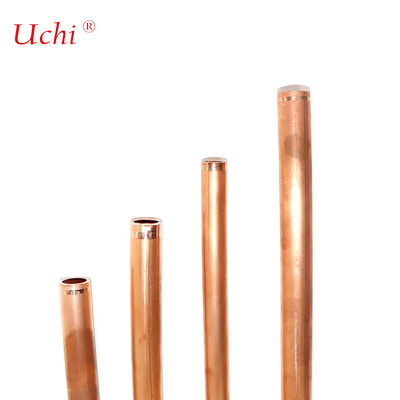

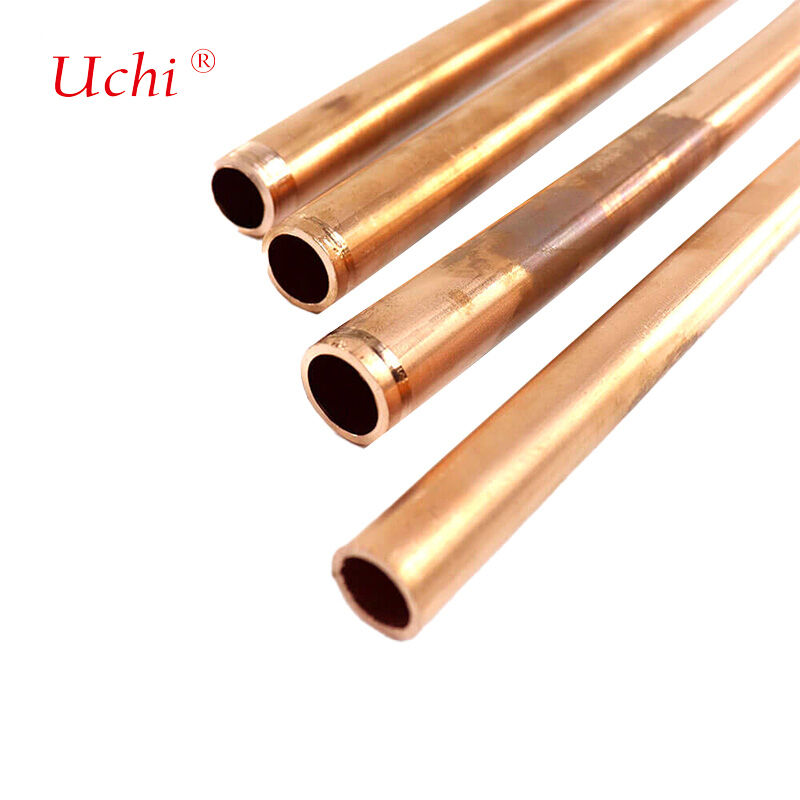

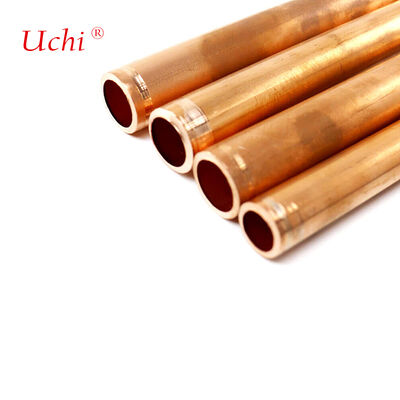

Curved Round Structure Heat Pipe Heat Sink For Air Conditioning
This curved round structure heat pipe heat sink is specifically designed for air conditioning applications, manufactured from high-quality CU 1100 material with a 12mm diameter. The heat sink features excellent high-pressure water transmission capabilities and passivation surface treatment, delivering reliable heat conducting power of 90W.
Product Specifications
| Material | CU 1100 |
|---|---|
| Diameter | 12 mm |
| Feature | High pressure water transmission |
| Surface Treatment | Passivation |
| Heat Conducting Power | 90W |
Chip Heat Sink Technology
High-integration chips serving as core business processing units require efficient thermal management due to their simultaneous multi-tasking capabilities and rapid data processing speeds. These operations generate significant power consumption and heat that must be effectively transferred to prevent thermal accumulation.
Without proper heat dissipation, internal device temperatures rise sharply, leading to excessive junction temperatures within the chip. This can cause device failure, restart cycles, system crashes, or complete chip burnout, resulting in equipment damage and user losses.
Industry standard practice involves installing chip heat sinks on high-heat generating chips, integrated with thermal design processing systems for effective heat discharge. For lightweight applications, thermal conductive silica gel or pads are directly adhered to chips, while larger heat sinks require more secure mounting methods to ensure stability and reliability during transport and operation.
Welded Mounting Solution
Heat sinks with welded feet provide secure circuit board attachment through diagonal platform processing. Each platform embeds a metal welding foot with pre-applied tin coating or tin-coated wire, while thermal conductive silicon grease or silica gel ensures optimal thermal interface between the chip and heat sink.
Primary Application Fields
- 100G/200G pluggable optical modules for data center switches
- Small optical modules for fronthaul/mid-haul equipment of 5G base stations
- Low-power optical communication components for edge computing nodes
Manufacturing Capabilities
Advanced Brazing Technology
Brass / Copper CNC
Aluminium / Zinc CNC
Stainless Steel / Steel CNC
Plastic CNC
Key Applications
- New Energy Vehicles: Thermal management of battery packs, motor controllers, inverters
- Industrial Electronics: Inverters, IGBT modules, high-power semiconductor devices, laser equipment
- Data Center and Server: Cooling of high-performance computing components (CPU, GPU, memory)
- Medical Devices: Temperature control of imaging equipment and diagnostic instruments
- Aerospace and Military: Airborne equipment and radar systems requiring extreme reliability
- Power Electronics: High-power equipment including rectifiers, transformers, power modules
- Renewable Energy: Photovoltaic inverters, wind turbine converters
- LED Lighting: Heat dissipation of high-power LED lamps
Production Equipment
Our manufacturing facility features comprehensive air-cooled equipment including 10 low-temperature solder reflow ovens, 5 baking ovens, 20 automatic solder dispensing units, 3 automatic solder brushing machines, 50 torque-controlled electric screwdrivers, CCD inspection equipment, fully automatic optical module testing systems, multi-station thermal performance testing equipment, and flatness optical testing instruments.
Quality Assurance
We maintain rigorous quality standards with advanced testing equipment including Coordinate Measuring Machines, projector instruments, water high pressure testing machines, thermal resistance testing systems, and liquid leakage testing equipment.
Customer Service
- Prompt response to all inquiries
- Competitive pricing with guaranteed quality
- Efficient production scheduling
- Optimal transportation solutions
- Comprehensive technical support
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a professional manufacturer of heat sinks and water cooling plates with extensive experience and a strong technical team, featuring automated and mechanized production.
Have you exported goods before and to which regions?
60% of our total production is exported to Japan, India, UK, Canada, USA, and Brazil.
How many employees do you have?
Approximately 100 employees across sales, purchasing, engineering, QA, warehouse, and production departments.
Can you provide samples if we agree with the design?
Yes, we provide samples for confirmation before mass production, along with technical drawings if required.
What packing methods do you use?
Customized packing with normal cartons and tight-proof fabric or wooden cartons for optimal protection during transportation.
Do you provide technical support for product issues?
All products are fully inspected before shipping. For any issues, we provide immediate technical solutions.
