Aluminum-Copper Cold Forged Pin Fin Heat Sink For IGBT
Product Details:
| Place of Origin: | Dongguan，Guangdong,China |
| Brand Name: | Uchi |
| Certification: | SMC |
| Model Number: | Cold Forged Heat Sink 03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Payment Terms: | T/T，paypal， Western Union,MoneyGram |
| Supply Ability: | 50000000pcs per Month |
|
Detail Information |
|||
| Grade: | 6000 Series | Alloy Or Not: | Is Alloy |
|---|---|---|---|
| Processing Service: | Cold Forging, CNC | Temper: | T3~T8 |
| Surface Treatment: | Anodized, | Color: | Customized Color |
| Tolerance: | ±1% | Material: | AL6063 |
| Size: | 158*158*65 | Application: | Heat Sink |
| Highlight: | Aluminum-Copper IGBT heat sink,Cold forged pin fin cooler,Liquid cooling plate for IGBT |
||
Product Description

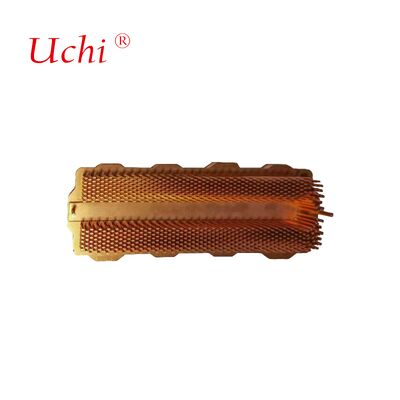

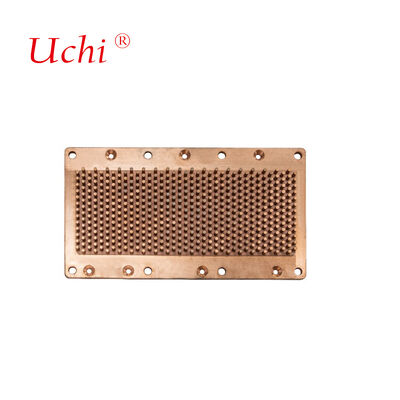

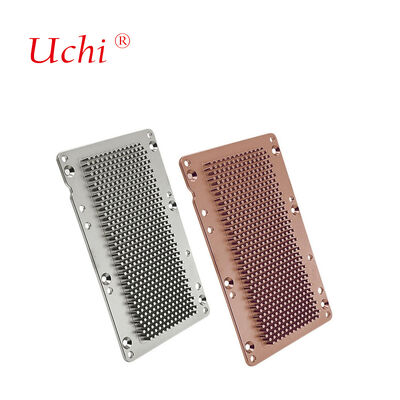

Aluminum-Copper Cold Forged Pin Fin Heat Sink For IGBT
High-performance aluminum-copper cold forged pin fin heat sink specifically designed for IGBT applications, offering superior thermal management solutions.
Product Advantages
Manufactured from T1/T2 pure copper using cold forging process with thermal conductivity up to 390W/m·K. Achieves optimal balance between thermal performance, reliability, cost, weight and dimensions. Thermal resistance reduced by 40% compared to traditional processes.
Technical Specifications
| Material | Aluminum alloy: AL1070, AL1060, AL1050 or customized Copper alloy: Cu1100 or customized |
| Production Processing | DFM report - Design confirmation - Tooling design - Tooling making - Tooling testing - Cold forging - Fins cutting - Degreasing - CNC machining/CNC lathe - Tapping/threading - Deburring - Cleaning - Inspecting - Surface treatment - Final inspection - Packing |
| Surface Treatment | Polishing, anodizing, powder coating, passivating, painting, plating, sand blasting, e-coating and custom treatments |
| Drawing Format | 2D (DXF, DWG, CAD), 3D (IGS, STEP, SLD, X_T) |
| Tolerance | ±0.05mm to ±0.2mm |
| Service | OEM service with professional R&D support |
Manufacturing Capabilities
Main Production Equipment: Oil press machine (300T-5000T), Cold/hot chamber die casting machines (280T-1680T), CNC machines, CNC lathes, punching machines, polishing/grinding/drilling/tapping machines, multi-axis tapping machines, surface treatment equipment
Main Testing Equipment: Calipers, 2.5 measuring instruments, CMM, height gauges, go-no go gauges, roughness measurement, salt spray testing machines
Quality Control: ISO9001:2015, IATF16949 certified. FAI report provided before every shipment
Forging Process Comparison
Cold Forging Advantages: No black scale remains at the root of pillars after CNC machining
Hot Forging Disadvantages: Large areas of black scale left at the root of pillars after CNC machining
Technical Parameters
Manufacturing Process Flow
Industry Applications
- New Energy Vehicle Sector: Motor/Electronic Control System, Battery Pack System, Charging Pile Module
- Industrial High-power Equipment: Frequency Converter/Servo System, High-power Power Supply, Laser Equipment
- Consumer Electronics & High-end Equipment: High-performance Consumer Electronics, Aerospace Equipment
- New Energy Energy Storage Sector
Advanced Equipment & Precision Machining
Comprehensive mold workshop capabilities including:
- 22 sets of electric discharge machines (EDM) including 2 MAKINO mirror EDM machines
- 9 wire-cut EDM machines (low-speed) with 3 Seibu and 1 Sodick imported from Japan
- 7 spark erosion machines, 10 grinding machines, 2 milling machines, and 1 lathe
| Table Size | 500×350 mm |
| Rapid Traverse Speed | 5000 mm/min |
| Maximum Workpiece Weight | 500 kg |
| Maximum Electrode Weight | 50 kg |
High Machining Precision: Utilizing SuperSpark4 and IES technologies for advanced adaptive power supply and jump control to stabilize EDM processes and improve precision. Equipped with ultra-surface and ultra-edge generator technologies for excellent surface finish and metallurgical quality.
Manufacturing Facilities
Quality Assurance
Rigorous quality standards with comprehensive testing equipment:
- 1 Coordinate Measuring Machine
- 1 projector instrument
- 2 water high pressure testing machines
- 4 thermal resistance testing machines
- 2 liquid leakage testing machines
Customer Service Commitment
- Prompt response to all inquiries
- Competitive pricing with guaranteed quality
- Efficient production scheduling
- Optimal transportation solutions
- Comprehensive technical support
