Customized Liquid-Cooled Plate Fittings With Stainless Steel Quick Disconnect Fittings
Product Details:
| Place of Origin: | Dongguan，Guangdong,China |
| Brand Name: | Uchi |
| Certification: | SMC |
| Model Number: | Quick-Connect Fittings |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Payment Terms: | T/T，paypal， Western Union,MoneyGram |
| Supply Ability: | 50000000pcs per Month |
|
Detail Information |
|||
| Material: | Aluminum, Stainless Steel, Brass, Carbon Steel, Titanium... | Precision: | ±0.002 ~ ±0.005mm |
|---|---|---|---|
| Certification: | ISO 9001,ROSH,CE,ISO16949 | Machining Type: | CNC Turning, CNC Milling,CNC Drilling ,etc. |
| Surface: | Anodized, Polished | Type: | Broaching, Drilling, Etching / Chemical Machining, Laser... |
| Highlight: | custom liquid-cooled plate fittings,stainless steel quick disconnect fittings,liquid cooling plate with quick disconnect |
||
Product Description

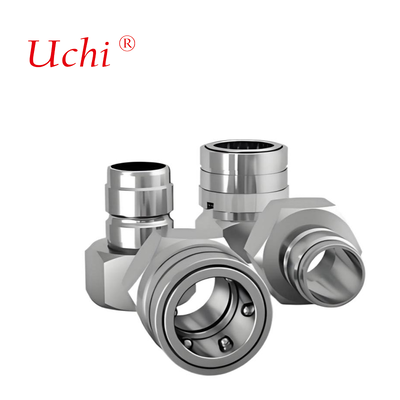

Customized Liquid-Cooled Plate Fittings With Stainless Steel Quick Disconnect Fittings
Precision-engineered liquid-cooled plate fittings with stainless steel quick disconnect fittings for efficient thermal management systems.
Manufacturing Capabilities
Processing Methods
CNC Turning, CNC Milling
Available Materials
- Aluminum: 2000 series, 6000 series, 7075, 5052, etc.
- Stainless steel: SUS303, SUS304, SS316, SS316L, 17-4PH, etc.
- Titanium: Grade F1-F5
- Brass: 260, C360, H59, H60, H62, H63, H65, H68, H70, etc.
- Steel: 1214L/1215/1045/4140/SCM440/40CrMo, etc.
Surface Treatments
Anodized, Bead Blasted, Silk Screen, PVD Plating, Zinc/Nickel/Chrome/Titanium Plating, Brushing, Painting, Powder Coated, Passivation, Electrophoresis, Electro Polishing, Knurl, Laser/Etch/Engrave etc.
Precision Specifications
Tolerance: ±0.002 ~ ±0.005mm
Surface Roughness: Min Ra 0.1~3.2
Material Selection Guide for Liquid Cooling Systems
| Application Scenario | Recommended Main Body Material | Recommended Seal Material | Core Advantages | Selection Notes |
|---|---|---|---|---|
| Data center server liquid-cooled plates | Brass / 6061 Aluminum Alloy | Nitrile Butadiene Rubber (NBR) | Moderate cost, excellent machinability, compatible with water-glycol coolant; easy assembly and disassembly | System working pressure ≤ 3.0 MPa; avoid long-term high-temperature (＞100℃) working conditions |
| New energy vehicle power battery liquid cooling circuit | 304/316 Stainless Steel | Fluororubber (FKM/Viton) | High pressure resistance (3.0-6.0 MPa), vibration and impact resistance; wide temperature tolerance | Comply with ISO 16028 automotive industry standards; avoid contact with strong corrosive media |
| Outdoor charging pile liquid cooling system | 316 Stainless Steel / Glass Fiber Reinforced PA66 | Fluororubber (FKM/Viton) | 316 stainless steel resists outdoor humid corrosion; engineering plastic features light weight and good insulation | Meet IP67 or higher protection level; replace with Silicone Rubber (VMQ) seals in low-temperature areas (＜-20℃) |
| High-temperature liquid cooling system for industrial equipment | 316 Stainless Steel | Perfluoroelastomer (FFKM) | Ultra-high temperature resistance (≤200℃), compatible with strong corrosive coolants; stable sealing performance | High cost, only suitable for high-end industrial scenarios; avoid seal surface wear from frequent plugging |
| Portable liquid cooling for consumer electronics | Polyoxymethylene (POM) / Aluminum Alloy | Silicone Rubber (VMQ) | Light weight, excellent insulation; resistance to extreme low temperature, suitable for compact space | Only for low-pressure (≤1.0 MPa), normal/low-temperature working conditions; avoid contact with oil-based coolants |
Supplementary Selection Principles
- Material compatibility first: For water-glycol coolant, prioritize brass/aluminum alloy + NBR/FKM; for oil-based coolants, use FKM/FFKM seals and avoid silicone rubber.
- Working condition parameter matching: The rated pressure resistance should be ≥ 1.5 times the system peak pressure; the temperature resistance range should cover extreme system working temperatures.
- Balance between cost and performance: Choose brass/NBR for general scenarios; upgrade to stainless steel/FKM for high-demand scenarios; use FFKM seals only for extreme working conditions.
Company Manufacturing Advantages
Our mold workshop features advanced equipment including:
- 22 sets of electric discharge machines (EDM), including 2 MAKINO mirror EDM machines
- 9 wire-cut EDM machines (low-speed), including 3 Seibu and 1 Sodick machines imported from Japan
- 7 spark erosion machines, 10 grinding machines, 2 milling machines and 1 lathe
Equipment Specifications
- Table size: 500×350 mm
- Rapid traverse speed: 5000 mm/min
- Maximum workpiece weight: 500 kg
- Maximum electrode weight: 50 kg
High Machining Precision
Utilizing SuperSpark4 and IES (Intelligent Expert System) technologies for advanced adaptive power supply and jump control to stabilize the EDM process and improve machining precision. Equipped with ultra-surface and ultra-edge generator technologies for excellent surface finish and metallurgical quality.
Liquid Cooling System Technology
High-power liquid cooling systems require heat sinks capable of rapid heat absorption. Leveraging the high specific heat capacity of liquids, our systems transfer large amounts of heat through liquid flow, capable of dissipating heat ranging from several hundred watts to over one kilowatt.
Liquid Cold Plate Varieties
- Buried-tube Liquid Cold Plate: Fabricated by grooving plates, burying and welding copper tubes inside, then hermetically sealing via welding. Ensures reliable liquid tightness, operational safety, and high flatness for excellent thermal contact.
- Inserted-tube Liquid Cold Plate: Manufactured by embedding copper tubes onto aluminum plate surfaces using welding or bonding processes, with strict flatness control for minimal thermal resistance.
- Channel-type Liquid Cold Plate: Internal flow channels formed on copper or aluminum substrates through drilling, extrusion, and precision machining, sealed via friction welding or high-temperature brazing.
- Liquid Cooling Block: For high-power chip heat dissipation with internal flow channels created through skiving fin technology to maximize heat exchange surface area.
Product Applications
Quality Assurance
We maintain rigorous quality standards with comprehensive testing equipment including:
- 1 Coordinate Measuring Machine
- 1 projector instrument
- 2 water high pressure testing machines
- 4 thermal resistance testing machines
- 2 liquid leakage testing machines
Customer Service Commitment
- Prompt response to all inquiries
- Competitive pricing with guaranteed quality
- Efficient production scheduling
- Optimal transportation solutions
- Comprehensive technical support
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a professional manufacturer of heat sinks and water cooling plates with extensive experience and a strong technical team, featuring automated and mechanized production.
Have you exported goods before and to which regions?
60% of our total production is exported to Japan, India, UK, Canada, USA, and Brazil.
How many employees do you have?
Approximately 100 employees across sales, purchasing, engineering, QA, warehouse, and production departments.
Can you provide samples if we agree with the design?
Yes, we provide samples for confirmation before mass production, along with technical drawings if required.
What packing methods do you use?
Customized packing with normal cartons and tight-proof fabric or wooden cartons for optimal protection during transportation.
Do you provide technical support for product issues?
All products are fully inspected before shipping. For any issues, we provide immediate technical solutions.
Want to Know more details about this product
