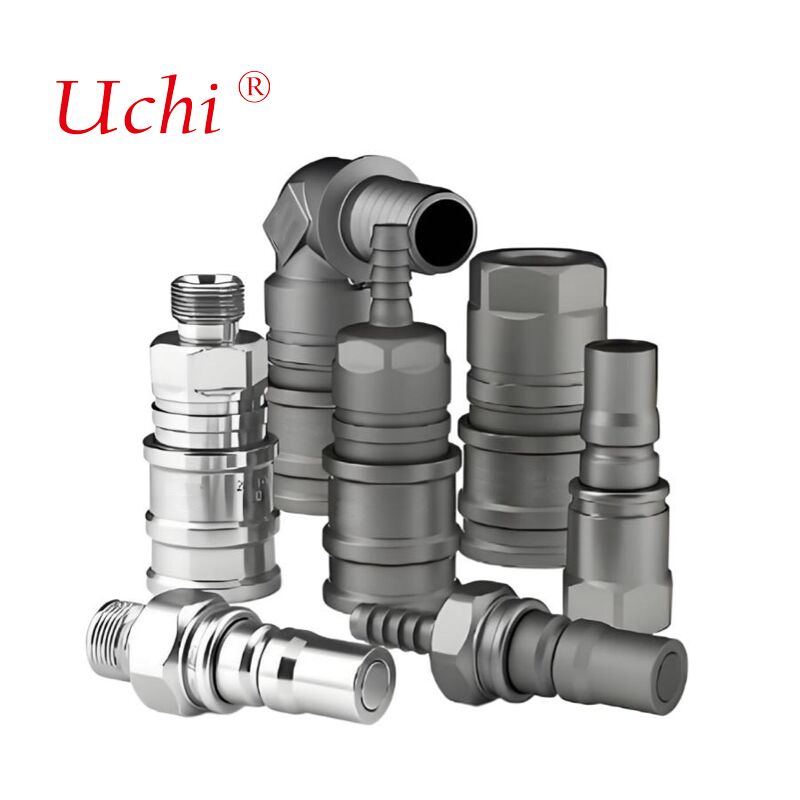

CNC Machined Stainless Steel Quick-Connect Fittings For Liquid Cooling Components
Product Details:
| Place of Origin: | Dongguan，Guangdong,China |
| Brand Name: | Uchi |
| Certification: | SMC |
| Model Number: | Quick-Connect Fittings |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Payment Terms: | T/T，paypal， Western Union,MoneyGram |
| Supply Ability: | 50000000pcs per Month |
|
Detail Information |
|||
| Material: | Aluminum, Stainless Steel, Brass, Carbon Steel, Titanium... | Precision: | ±0.002 ~ ±0.005mm |
|---|---|---|---|
| Certification: | ISO 9001,ROSH,CE,ISO16949 | Machining Type: | CNC Turning, CNC Milling,CNC Drilling ,etc. |
| Highlight: | CNC machined stainless steel fittings,quick-connect liquid cooling fittings,stainless steel liquid cooling components |
||
Product Description

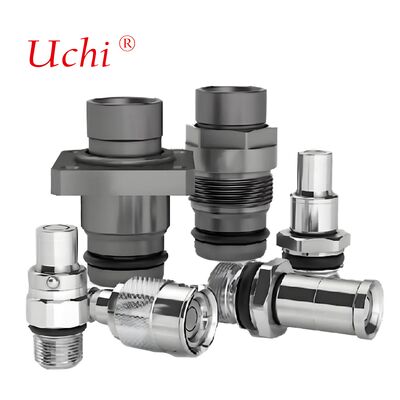

CNC Machined Stainless Steel Quick-Connect Fittings
Precision-engineered quick-connect fittings designed for liquid cooling systems, manufactured using advanced CNC machining processes for superior performance and reliability.
Manufacturing Specifications
| Processing | CNC Turning, CNC Milling |
|---|---|
| Materials |
Aluminum: 2000 series, 6000 series, 7075, 5052, etc. Stainless Steel: SUS303, SUS304, SS316, SS316L, 17-4PH, etc. Titanium: Grade F1-F5 Brass: 260, C360, H59, H60, H62, H63, H65, H68, H70, etc. Steel: 1214L/1215/1045/4140/SCM440/40CrMo, etc. |
| Surface Treatment | Anodized, Bead Blasted, Silk Screen, PVD Plating, Zinc/Nickel/Chrome/Titanium Plating, Brushing, Painting, Powder Coated, Passivation, Electrophoresis, Electro Polishing, Knurl, Laser/Etch/Engrave etc. |
| Tolerance | ±0.002 ~ ±0.005mm |
| Surface Roughness | Min Ra 0.1~3.2 |
Performance Parameters
Pressure Resistance
Pressure resistance capacity is a critical performance indicator that determines the pressure rating compatibility with liquid cooling systems.
Standard Industrial Grade: 1.0-3.0 MPa (approximately 10-30 bar) - Suitable for low-pressure circulation systems including data center server liquid cooling plates and small charging piles.
High Pressure Resistance Grade: 3.0-6.0 MPa - Designed for liquid cooling circuits in new energy vehicle power batteries where system pressure fluctuates significantly and higher impact pressure resistance is required.
Testing Standards: All products undergo hydrostatic testing at 1.5 times rated pressure without leakage or deformation. High-demand applications include additional pulse pressure testing to simulate long-term pressure fluctuations.
High Pressure Resistance Grade: 3.0-6.0 MPa - Designed for liquid cooling circuits in new energy vehicle power batteries where system pressure fluctuates significantly and higher impact pressure resistance is required.
Testing Standards: All products undergo hydrostatic testing at 1.5 times rated pressure without leakage or deformation. High-demand applications include additional pulse pressure testing to simulate long-term pressure fluctuations.
Manufacturing Capabilities
Our advanced mold workshop features comprehensive equipment for precision manufacturing:
- 22 sets of electric discharge machines (EDM), including 2 MAKINO mirror EDM machines
- 9 wire-cut EDM machines (low-speed), including 3 Seibu and 1 Sodick machines imported from Japan
- 7 spark erosion machines, 10 grinding machines, 2 milling machines, and 1 lathe
Technical Specifications
Table Size: 500×350 mm
Rapid Traverse Speed: 5000 mm/min
Maximum Workpiece Weight: 500 kg
Maximum Electrode Weight: 50 kg
Rapid Traverse Speed: 5000 mm/min
Maximum Workpiece Weight: 500 kg
Maximum Electrode Weight: 50 kg
Machining Precision
Utilizing SuperSpark4 and IES (Intelligent Expert System) technologies for advanced adaptive power supply and jump control to stabilize the EDM process and enhance machining precision. Equipped with ultra-surface and ultra-edge generator technologies for exceptional surface finish and metallurgical quality.
Liquid Cooling System Technology
High-power liquid cooling systems require heat sinks capable of rapid heat absorption. Leveraging the high specific heat capacity of liquids, our systems transfer large amounts of heat through liquid flow, capable of dissipating heat ranging from several hundred watts to over one kilowatt.
Liquid Cold Plate Varieties
- Buried-tube Liquid Cold Plate: Fabricated by grooving plates, burying and welding copper tubes inside, then hermetically sealing via welding. Ensures reliable liquid tightness, operational safety, and high flatness for excellent thermal contact.
- Inserted-tube Liquid Cold Plate: Manufactured by embedding copper tubes onto aluminum plate surfaces using welding or bonding processes, with strict flatness control for minimal thermal resistance.
- Channel-type Liquid Cold Plate: Internal flow channels formed on copper or aluminum substrates through drilling, extrusion, and precision machining, sealed via friction welding or high-temperature brazing.
- Liquid Cooling Block: For high-power chip heat dissipation with internal flow channels created through skiving fin technology to maximize heat exchange surface area.
Product Applications
Quality Assurance
We maintain rigorous quality standards with comprehensive testing equipment including:
- 1 Coordinate Measuring Machine
- 1 projector instrument
- 2 water high pressure testing machines
- 4 thermal resistance testing machines
- 2 liquid leakage testing machines
Customer Service Commitment
- Prompt response to all inquiries
- Competitive pricing with guaranteed quality
- Efficient production scheduling
- Optimal transportation solutions
- Comprehensive technical support
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a professional manufacturer of heat sinks and water cooling plates with extensive experience and a strong technical team, featuring automated and mechanized production.
Have you exported goods before and to which regions?
60% of our total production is exported to Japan, India, UK, Canada, USA, and Brazil.
How many employees do you have?
Approximately 100 employees across sales, purchasing, engineering, QA, warehouse, and production departments.
Can you provide samples if we agree with the design?
Yes, we provide samples for confirmation before mass production, along with technical drawings if required.
What packing methods do you use?
Customized packing with normal cartons and tight-proof fabric or wooden cartons for optimal protection during transportation.
Do you provide technical support for product issues?
All products are fully inspected before shipping. For any issues, we provide immediate technical solutions.
