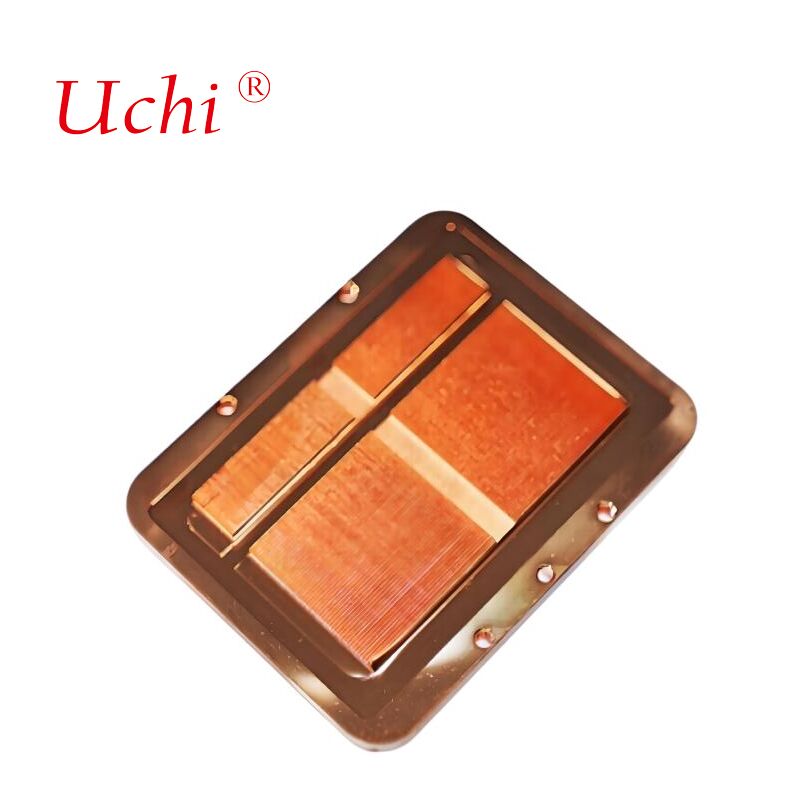

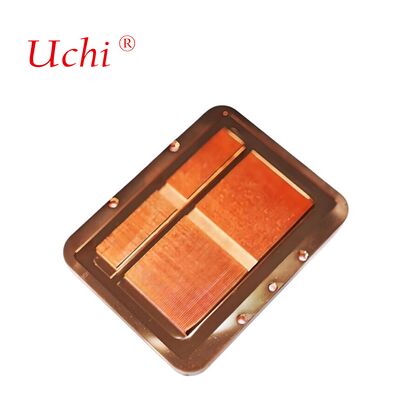

Cold Plate Cooling Technology For Laser Water-Cooling System With C1100 Pure Copper Heat Sink
Product Details:
| Place of Origin: | Dongguan，Guangdong,China |
| Brand Name: | Uchi |
| Certification: | SMC |
| Model Number: | cold plate cooling 02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Payment Terms: | T/T，paypal， Western Union,MoneyGram |
| Supply Ability: | 50000000pcs per Month |
|
Detail Information |
|||
| Power Interface: | 3Pin | Material: | Copper Material |
|---|---|---|---|
| Noise: | 17dbA | Power: | 20-500W |
| Surface Treatment: | Anti-oxidation | Process: | Brazed Skived Fin |
| Certificate: | ISO 9001:2000 ISO 14001:2004 | ||
| Highlight: | copper cold plate for laser cooling,water-cooling system cold plate,C1100 pure copper heat sink |
||
Product Description
Cold Plate Cooling Technology for Laser Water-Cooling Systems
Advanced thermal management solution featuring C1100 pure copper heat sinks for superior heat dissipation in demanding industrial applications.
Critical Role in Digital Infrastructure
Thermal management technology serves as the physical foundation of digital infrastructure, supporting everything from national data centers and AI computing clusters to personal devices and IoT systems, ensuring stable operation and sustained growth of the digital economy.
High-End Manufacturing Applications
Semiconductor and Chip Manufacturing
Addresses heat accumulation challenges in advanced packaging technologies like 3D stacking, where traditional materials reach thermal conductivity limitations.
AI Computing and Data Centers
Overcomes thermal management constraints that limit computing power improvement as chip heat flux density continues to increase.
Aerospace Applications
Provides reliable thermal management in extreme space environments where conventional convective heat dissipation is not feasible.
Everyday Technology Applications
Digital Devices
Metal cooling fins in computers, mobile phones, and game consoles ensure sustained performance through efficient heat dissipation.
Communication Equipment
Large heat sinks maintain stability for high-speed data transmission and processing systems.
Household Appliances
Compressors and condensers efficiently transfer heat from indoor spaces to outdoor environments.
Lighting Systems
Advanced heat dissipation design ensures optimal luminous efficacy and extended service life for LED lighting.
New Energy Vehicles
Sophisticated liquid cooling systems maintain optimal operating temperatures for electric vehicle components.
Industry Challenges and Solutions
Traditional cooling methods face limitations with modern high-performance processors requiring heat flux density exceeding 50W/cm². Conventional thermal materials struggle to surpass 5W/m·K thermal conductivity, while liquid cooling offers superior performance despite complex manufacturing requirements.
Technology Evolution
The heat dissipation industry is transitioning from supporting role to core technology provider, with liquid cooling emerging as the mainstream solution. This transformation includes shifts toward precision temperature control, high-thermal-conductivity materials, digital manufacturing integration, and service-oriented business models.
Cold Plate Radiator Design
Custom internal flow channel design based on customer power consumption data and heat distribution patterns. Our engineering process includes comprehensive simulation analysis with iterative parameter adjustments to achieve optimal thermal and hydraulic performance targets.
Manufacturing Capabilities
Advanced Equipment Portfolio
Our mold workshop features 22 electric discharge machines including 2 MAKINO mirror EDM units, 9 wire-cut EDM machines (3 Seibu and 1 Sodick imported from Japan), 7 spark erosion machines, 10 grinding machines, 2 milling machines, and 1 lathe.
Technical Specifications
| Parameter | Specification |
|---|---|
| Table Size | 500×350 mm |
| Rapid Traverse Speed | 5000 mm/min |
| Maximum Workpiece Weight | 500 kg |
| Maximum Electrode Weight | 50 kg |
Precision Engineering
Utilizing SuperSpark4 and IES (Intelligent Expert System) technologies for advanced adaptive power supply and jump control, ensuring process stability and superior machining precision. Our ultra-surface and ultra-edge generator technologies deliver excellent surface finish and metallurgical quality.
Liquid Cooling System Technology
High-power liquid cooling systems utilize heat sinks with rapid heat absorption capabilities. Leveraging the high specific heat capacity of liquids, our systems efficiently transfer substantial heat loads ranging from several hundred watts to over one kilowatt.
Liquid Cold Plate Varieties
- Buried-tube Liquid Cold Plate: Fabricated by grooving plates, burying and welding copper tubes inside, then hermetically sealing via welding. Ensures reliable liquid tightness, operational safety, and high flatness for excellent thermal contact.
- Inserted-tube Liquid Cold Plate: Manufactured by embedding copper tubes onto aluminum plate surfaces using welding or bonding processes, with strict flatness control for minimal thermal resistance.
- Channel-type Liquid Cold Plate: Internal flow channels formed on copper or aluminum substrates through drilling, extrusion, and precision machining, sealed via friction welding or high-temperature brazing.
- Liquid Cooling Block: For high-power chip heat dissipation with internal flow channels created through skiving fin technology to maximize heat exchange surface area.
Product Applications
Quality Assurance
We maintain rigorous quality standards with comprehensive testing equipment including:
- 1 Coordinate Measuring Machine
- 1 projector instrument
- 2 water high pressure testing machines
- 4 thermal resistance testing machines
- 2 liquid leakage testing machines
Customer Service Commitment
- Prompt response to all inquiries
- Competitive pricing with guaranteed quality
- Efficient production scheduling
- Optimal transportation solutions
- Comprehensive technical support
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a professional manufacturer of heat sinks and water cooling plates with extensive experience and a strong technical team, featuring automated and mechanized production.
Have you exported goods before and to which regions?
60% of our total production is exported to Japan, India, UK, Canada, USA, and Brazil.
How many employees do you have?
Approximately 100 employees across sales, purchasing, engineering, QA, warehouse, and production departments.
Can you provide samples if we agree with the design?
Yes, we provide samples for confirmation before mass production, along with technical drawings if required.
What packing methods do you use?
Customized packing with normal cartons and tight-proof fabric or wooden cartons for optimal protection during transportation.
Do you provide technical support for product issues?
All products are fully inspected before shipping. For any issues, we provide immediate technical solutions.
