The Liquid Cooling System Of The Fully Liquid-cooled Charging Stack Is Compatible With Liquid-cooled Guns Rated At 400A To 600A
Product Details:
| Place of Origin: | Dongguan，Guangdong,China |
| Brand Name: | Uchi |
| Certification: | SMC |
| Model Number: | 800S-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Payment Terms: | T/T，paypal， Western Union,MoneyGram |
| Supply Ability: | 50000000pcs per Month |
|
Detail Information |
|||
| Applicable Liquid-cooled Gun Current: | 400A To 600A | Heat Source Power: | 1.8kW |
|---|---|---|---|
| Coolant Type: | Ethylene Glycol Solution Or Silicone Oil | Noise: | ≤60dB |
| Operating Environment Temperature: | -35~55°C | Ambient Temperature: | -30°C To 55°C |
| Humidity: | 5%～90% | Altitude: | ≤2000m |
| Liquid Cooling Unit Dimensions: | 350×180×550mm (W*L*H) | Input Voltage: | 24V DC |
| Input Current: | ≤10A | Flow Rate: | 0 To 5L/min |
| Highlight: | liquid cooling system for charging stack,fully liquid-cooled charging stack,liquid-cooled guns 400A to 600A |
||
Product Description
Liquid Cooling System for High-Current Charging Applications

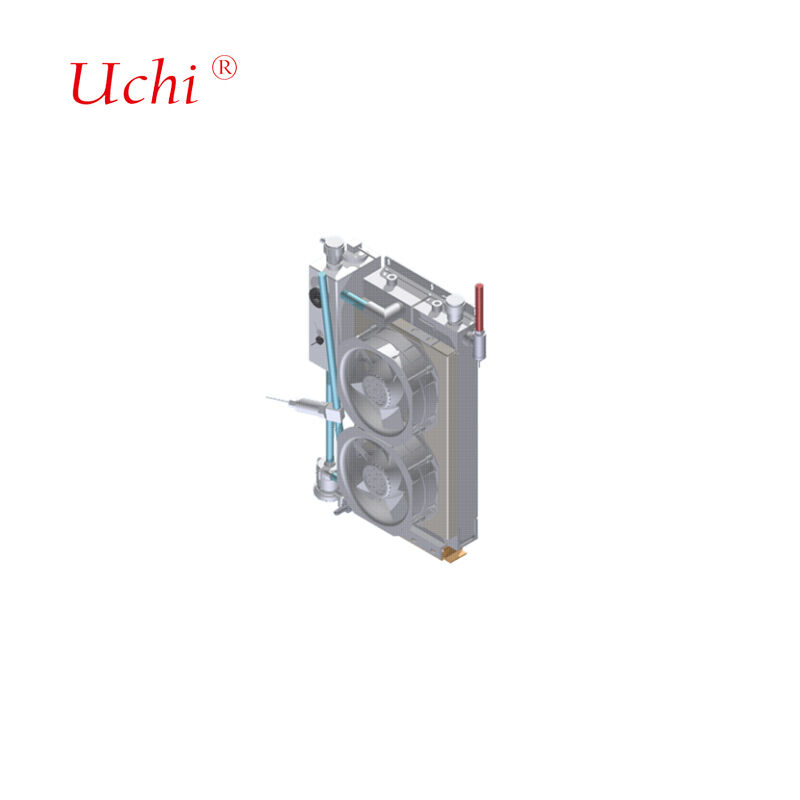

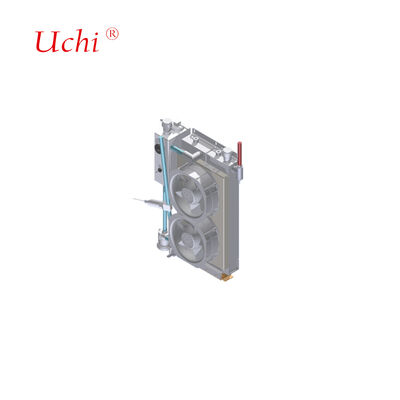

Advanced fully liquid-cooled charging stack system compatible with liquid-cooled guns rated from 400A to 600A, designed for ultra-fast charging terminals.
System Architecture
Comprehensive cooling solution comprising liquid-cooled radiators, circulating pumps, make-up pumps, water tanks, sensors, fans, and integrated control systems. Designed for bottom installation in liquid-cooled super-charging piles with full customization capabilities.
Technical Specifications
- Liquid-cooled gun compatibility: 400A to 600A
- Heat source power: 1.8KW
- Coolant options: Ethylene glycol solution or silicone oil
- Operating temperature range: -35°C to 55°C
- Input voltage: 24V DC; Input current: ≤10A; Flow rate: 0 to 5L/min
- Communication interface: 485 (Modbus RTU protocol)
- Noise level: ≤60dB
- Ambient conditions: -30°C to 55°C; Humidity: 5% to 90%; Altitude: ≤2000m
- Unit dimensions: 350mm (W) × 180mm (L) × 550mm (H)
Cold Plate Radiator Engineering
Custom internal flow channel design optimized through comprehensive simulation analysis. Our engineering process includes iterative parameter adjustments to achieve optimal thermal and hydraulic performance targets.
Production Equipment Capabilities
| Equipment Type | Quantity | Technical Parameters |
|---|---|---|
| Tunnel Brazing Furnace | 2 Units | Max Welding Dimension: 1000mm (W) * 250mm (H), length unlimited Max Welding Temperature: 950℃ Applicable Materials: Copper, Aluminum |
| Vacuum Brazing Furnace | 2 Units | Max Welding Dimension: 800mm * 1200mm * 800mm Max Welding Temperature: 1200℃ Applicable Materials: Copper, Aluminum, Stainless Steel |
| Helium Leak Detection Equipment | 2 Units | Max Testing Dimension: 2500mm * 750mm * 700mm Testing Pressure Range: 0-3MPa Testing Precision: 2g/year or ≤1*10⁻⁶ Pa*m³/s |
| Hydrostatic Testing Equipment | 2 Units | Max Testing Dimension: 2500mm * 1500mm * 1000mm Testing Pressure Range: 0-5MPa |
| Pneumatic Testing Equipment | 2 Units | Max Testing Dimension: Unlimited Testing Pressure Range: 0-5MPa Testing Precision: 1Pa |
Advanced Brazing Technology
Our vacuum brazing process joins aluminum plates using filler metal with lower melting points than the base material, creating extremely strong joints without residual corrosive flux. This high-end technology provides uniform heating, precise temperature control, eliminates post-cleaning requirements, and minimizes part distortion.
Liquid Cooling System Technology
High-power liquid cooling systems require heat sinks capable of rapid heat absorption. Leveraging the high specific heat capacity of liquids, our systems transfer large amounts of heat through liquid flow, capable of dissipating heat ranging from several hundred watts to over one kilowatt.
Liquid Cold Plate Varieties
- Buried-tube Liquid Cold Plate: Fabricated by grooving plates, burying and welding copper tubes inside, then hermetically sealing via welding. Ensures reliable liquid tightness, operational safety, and high flatness for excellent thermal contact.
- Inserted-tube Liquid Cold Plate: Manufactured by embedding copper tubes onto aluminum plate surfaces using welding or bonding processes, with strict flatness control for minimal thermal resistance.
- Channel-type Liquid Cold Plate: Internal flow channels formed on copper or aluminum substrates through drilling, extrusion, and precision machining, sealed via friction welding or high-temperature brazing.
- Liquid Cooling Block: For high-power chip heat dissipation with internal flow channels created through skiving fin technology to maximize heat exchange surface area.
Material-Specific Cooling Solutions
Copper-brazed Liquid Cooling Products
GB200 liquid cooling module, H20 liquid cooling module, optical module liquid cooling module, and other copper cold plates. Compatible with phosphor copper, silver-based, nickel-based and gold-based solders.
Aluminum-brazed Liquid Cooling Products
LTS siphon radiator, die-cast electronic control liquid cooling box, power supply stamped liquid cooling plate, motor electronic control liquid cooling plate, 6G-3DRVC radiator, and other brazed liquid cooling radiators.
Stainless Steel-brazed Liquid Cooling Products
Liquid cooling manifold, DIMM liquid cooling module, and other stainless steel liquid cooling manifolds.
Key Applications
- Lasers and medical equipment
- EV power battery pack cooling
- Power electronics and motor drive devices
- Microwave 5G transmission systems
- Renewable energy systems
- IGBT and Power Semi-Conductor Systems
- Data centers and industrial power applications
- Defense systems and avionics
- Fuel cells and traction systems
Quality Assurance
We maintain rigorous quality standards with comprehensive testing equipment including:
- 1 Coordinate Measuring Machine
- 1 projector instrument
- 2 water high pressure testing machines
- 4 thermal resistance testing machines
- 2 liquid leakage testing machines
Customer Service Commitment
- Prompt response to all inquiries
- Competitive pricing with guaranteed quality
- Efficient production scheduling
- Optimal transportation solutions
- Comprehensive technical support
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a professional manufacturer of heat sinks and water cooling plates with extensive experience and a strong technical team, featuring automated and mechanized production.
Have you exported goods before and to which regions?
60% of our total production is exported to Japan, India, UK, Canada, USA, and Brazil.
How many employees do you have?
Approximately 100 employees across sales, purchasing, engineering, QA, warehouse, and production departments.
Can you provide samples if we agree with the design?
Yes, we provide samples for confirmation before mass production, along with technical drawings if required.
What packing methods do you use?
Customized packing with normal cartons and tight-proof fabric or wooden cartons for optimal protection during transportation.
Do you provide technical support for product issues?
All products are fully inspected before shipping. For any issues, we provide immediate technical solutions.
