600S Full Liquid-Cooled Charging Pile Cooling System Is Suitable For The Rectifier Cabinet Of 600kW Ultra-fast Charging Piles.
Product Details:
| Place of Origin: | Dongguan，Guangdong,China |
| Brand Name: | Uchi |
| Certification: | SMC |
| Model Number: | 600S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Payment Terms: | T/T，paypal， Western Union,MoneyGram |
| Supply Ability: | 50000000pcs per Month |
|
Detail Information |
|||
| Applicable Ultra-fast Charging Pile Power: | 600kW | Heat Source Power: | 30kW |
|---|---|---|---|
| Coolant Type: | Coolant Type | Number Of System Modules: | 15 Pcs |
| Single Module Flow Rate: | 6L/min | System Frequency Reduction Temperature:: | 60℃ |
| Power Supply Requirement: | AC 220V, 50Hz | Protection Class: | IP54 |
| Noise: | ≤60dB | Ambient Temperature: | -30~55°C |
| Humidity: | 5%～90% | Altitude: | ≤2000m |
| Liquid Cooling Unit Dimensions: | 1600×900×475mm (height Including Fans) | ||
| Highlight: | 600S liquid-cooled charging pile system,600kW ultra-fast charging pile rectifier,liquid cooling plate for rectifier cabinet |
||
Product Description

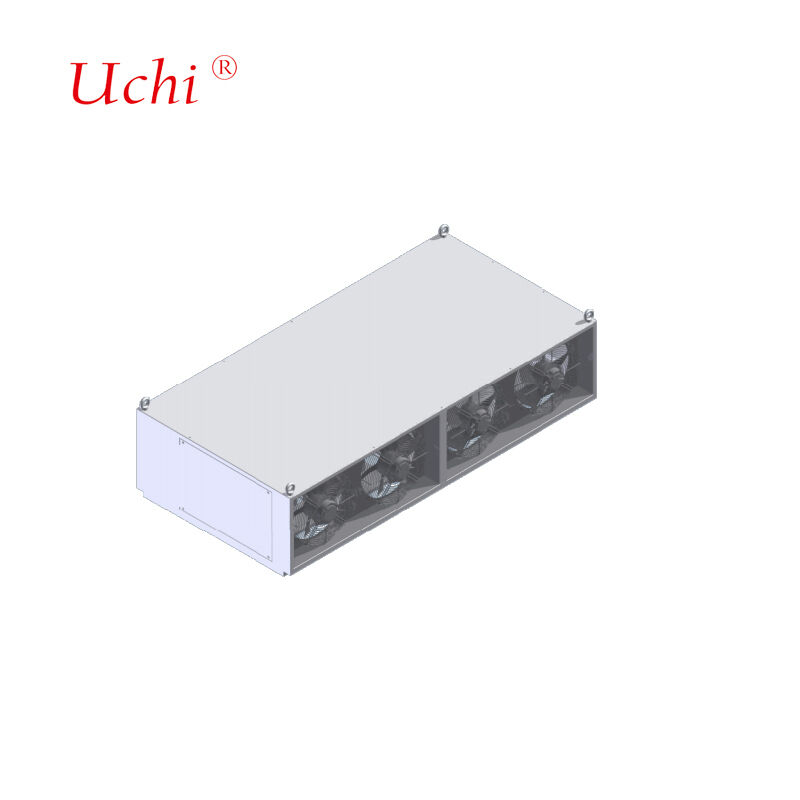

600S Full Liquid-Cooled Charging Pile Cooling System
Advanced cooling solution specifically engineered for 600kW ultra-fast charging pile rectifier cabinets, delivering superior thermal management for high-power applications.
System Design & Technical Specifications
Complete liquid-cooled thermal management system comprising heat exchangers, circulating pumps, make-up pumps, water tanks, sensors, fans and intelligent control systems. Designed for top-mount installation on charging pile main cabinets.
Technical Parameters
- Applicable charging power: 600kW
- Heat source power: 30kW
- Coolant: 40% ethylene glycol solution
- System modules: 15 units (single module flow rate: 6L/min)
- Frequency reduction temperature: 60℃
- Power supply: AC 220V, 50Hz
- Protection class: IP54
- Communication interface: RS485 (Modbus RTU protocol)
- Noise level: ≤60dB
- Operating temperature: -30°C to 55°C
- Humidity range: 5% to 90%
- Maximum altitude: 2000m
- Liquid cooling unit dimensions: 1600×900×475mm
Cold Plate Radiator Design
Custom internal flow channel design based on specific power consumption data and heat distribution patterns. Our engineering process includes comprehensive simulation analysis with iterative parameter optimization to achieve precise thermal and hydraulic performance targets while maintaining optimal fluid flow resistance.
Production Equipment Capabilities
| Equipment Type | Quantity | Technical Parameters |
|---|---|---|
| Tunnel Brazing Furnace | 2 Units | Max Welding Dimension: 1000mm (W) * 250mm (H), length unlimited Max Welding Temperature: 950℃ Applicable Materials: Copper, Aluminum |
| Vacuum Brazing Furnace | 2 Units | Max Welding Dimension: 800mm * 1200mm * 800mm Max Welding Temperature: 1200℃ Applicable Materials: Copper, Aluminum, Stainless Steel |
| Helium Leak Detection Equipment | 2 Units | Max Testing Dimension: 2500mm * 750mm * 700mm Testing Pressure Range: 0-3MPa Testing Precision: 2g/year or ≤1*10⁻⁶ Pa*m³/s |
| Hydrostatic Testing Equipment | 2 Units | Max Testing Dimension: 2500mm * 1500mm * 1000mm Testing Pressure Range: 0-5MPa |
| Pneumatic Testing Equipment | 2 Units | Max Testing Dimension: Unlimited Testing Pressure Range: 0-5MPa Testing Precision: 1Pa |
Advanced Brazing Technology
Our vacuum brazing process joins aluminum plates using specialized filler metals with lower melting points than the base material, creating exceptionally strong joints without residual corrosive flux. This high-precision technology ensures uniform heating, exact temperature control, eliminates post-cleaning requirements, and minimizes part distortion.
Liquid Cooling System Technology
High-power liquid cooling systems require advanced heat sinks capable of rapid heat absorption. Leveraging the superior specific heat capacity of liquids, our systems efficiently transfer substantial heat loads through optimized liquid flow, capable of dissipating heat ranging from several hundred watts to over one kilowatt.
Liquid Cold Plate Varieties
- Buried-tube Liquid Cold Plate: Fabricated by grooving plates, burying and welding copper tubes internally, then hermetically sealing via precision welding. Ensures reliable liquid tightness, operational safety, and high flatness for excellent thermal contact.
- Inserted-tube Liquid Cold Plate: Manufactured by embedding copper tubes onto aluminum plate surfaces using advanced welding or bonding processes, with strict flatness control for minimal thermal resistance.
- Channel-type Liquid Cold Plate: Internal flow channels formed on copper or aluminum substrates through precision drilling, extrusion, and machining, sealed via friction welding or high-temperature brazing.
- Liquid Cooling Block: For high-power chip heat dissipation with internal flow channels created through skiving fin technology to maximize heat exchange surface area.
Material-Specific Cooling Solutions
Copper-brazed Liquid Cooling Products: GB200 liquid cooling module, H20 liquid cooling module, optical module liquid cooling module, and other copper cold plates. Compatible with phosphor copper, silver-based, nickel-based and gold-based solders.
Aluminum-brazed Liquid Cooling Products: LTS siphon radiator, die-cast electronic control liquid cooling box, power supply stamped liquid cooling plate, motor electronic control liquid cooling plate, 6G-3DRVC radiator, and other brazed liquid cooling radiators.
Stainless Steel-brazed Liquid Cooling Products: Liquid cooling manifold, DIMM liquid cooling module, and other stainless steel liquid cooling manifolds.
Key Application Areas
- Lasers and medical equipment
- EV power battery pack cooling
- Power electronics and motor drive devices
- Microwave 5G transmission systems
- Renewable energy systems
- IGBT and Power Semi-Conductor Systems
- Data centers and industrial power applications
- Defense systems and avionics
- Fuel cells and traction systems
Quality Assurance Standards
We maintain rigorous quality standards with comprehensive testing equipment ensuring product reliability and performance consistency.
- 1 Coordinate Measuring Machine
- 1 projector instrument
- 2 water high pressure testing machines
- 4 thermal resistance testing machines
- 2 liquid leakage testing machines
Customer Service Commitment
- Prompt response to all inquiries
- Competitive pricing with guaranteed quality
- Efficient production scheduling
- Optimal transportation solutions
- Comprehensive technical support
