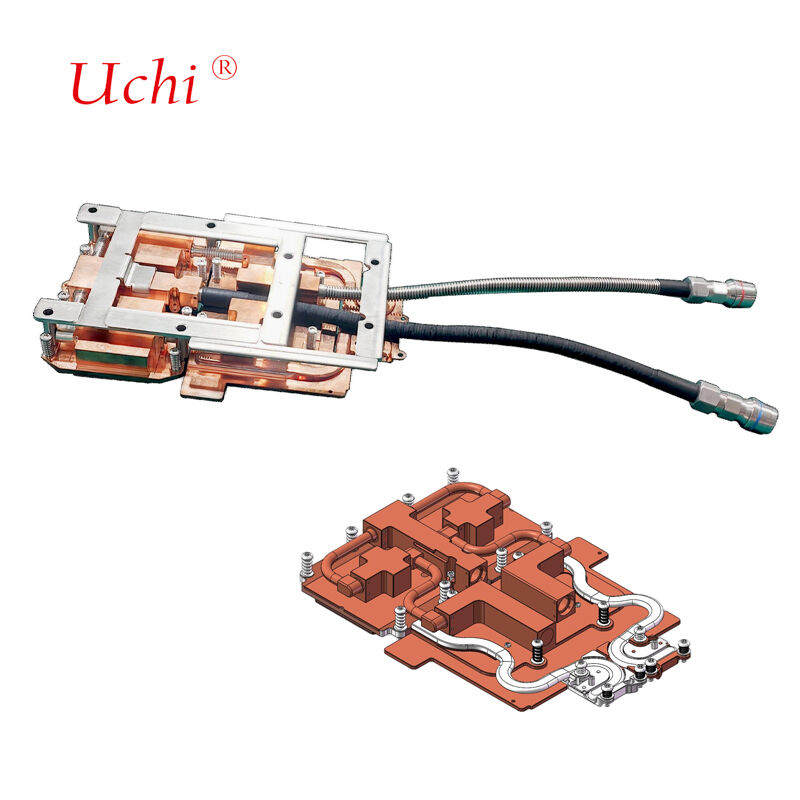

NVIDIA GB200/GB300 Server Copper Brazed Cold Plate Liquid Cooler
Product Details:
| Place of Origin: | Dongguan，Guangdong,China |
| Brand Name: | Uchi |
| Certification: | SMC |
| Model Number: | GB200/ GB300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Payment Terms: | T/T，paypal， Western Union,MoneyGram |
| Supply Ability: | 50000000pcs per Month |
|
Detail Information |
|||
| Material: | Aluminum + Copper | Working Pressure: | 1.2 To 5 Bars |
|---|---|---|---|
| Warranty: | 1 Year | Used In: | IGBT / UPS / SVG / EV Charger / Inverter / PSU |
| Channel Width: | < 0.3mm | Thermal Conductivity: | 73 W/m·K |
| Thermal Resistance: | 0.02 Cm²·K/W | Heat Dissipation Capacity: | 1400W |
| Flow Rate: | 2–4 M/s | Pressure Resistance: | ≥10 Bar |
| Highlight: | NVIDIA GB200 liquid cooling plate,copper brazed server cooler,GB300 liquid cooling plate |
||
Product Description
- Core Structure: Single-chip independent cold plate (compatible with B300 GPU) + 3D-printed titanium alloy microchannels (channel width < 0.3mm)
- Thermal Interface: Gallium-based liquid metal (thermal conductivity: 73 W/m*K), with thermal resistance as low as 0.02 cm²*K/W
- Cooling Capacity: Single cold plate up to 1400W, complete system (72 GPUs) exceeding 100kW
- Fluid Parameters: Compatible with PG25 coolant / deionized water, flow rate: 2-4 m/s, pressure resistance ≥ 10 bar
- Connectors: NVUQD03 quick-disconnect couplings, only 1/3 the size of previous generation, with 252 pairs installed per system
- AI Data Centers: GB300 NVL72 rack-scale AI servers (supporting large language model inference/training)
- Supercomputing / HPC: Large-scale parallel computing tasks (scientific simulation, quantum computing assistance)
- High-Density Computing: Modular computing units such as Meta Clemente 1U 4-GPU compute sleds
We design internal flow channels based on customer-provided power consumption data and heat distribution patterns to meet specific temperature rise and uniformity requirements while maintaining acceptable fluid flow resistance.
Our design process includes comprehensive simulation analysis of temperature and pressure drop, with iterative adjustments to internal parameters until both thermal and hydraulic performance targets are achieved.
Our manufacturing facility is equipped with state-of-the-art equipment for liquid cold plate production:
| Equipment Type | Quantity | Technical Parameters |
|---|---|---|
| Tunnel Brazing Furnace | 2 Units | Max Welding Dimension: 1000mm (W) × 250mm (H), length unlimited Max Welding Temperature: 950℃ Applicable Materials: Copper, Aluminum |
| Vacuum Brazing Furnace | 2 Units | Max Welding Dimension: 800mm × 1200mm × 800mm Max Welding Temperature: 1200℃ Applicable Materials: Copper, Aluminum, Stainless Steel |
| Helium Leak Detection Equipment | 2 Units | Max Testing Dimension: 2500mm × 750mm × 700mm Testing Pressure Range: 0-3MPa Testing Precision: 2g/year or ≤1×10⁻⁶ Pa*m³/s |
| Hydrostatic Testing Equipment | 2 Units | Max Testing Dimension: 2500mm × 1500mm × 1000mm Testing Pressure Range: 0-5MPa |
| Pneumatic Testing Equipment | 2 Units | Max Testing Dimension: Unlimited Testing Pressure Range: 0-5MPa Testing Precision: 1Pa |
Our vacuum brazing process joins aluminum plates using filler metal with lower melting points than the base material, creating extremely strong joints without residual corrosive flux. This high-end technology provides uniform heating, precise temperature control, eliminates post-cleaning requirements, and minimizes part distortion.
- Lasers and medical equipment
- EV power battery pack cooling
- Power electronics and motor drive devices
- Microwave 5G transmission systems
- Renewable energy systems
- IGBT and Power Semi-Conductor Systems
- Data centers and industrial power applications
- Defense systems and avionics
- Fuel cells and traction systems
We maintain rigorous quality standards with comprehensive testing equipment including:
- 1 Coordinate Measuring Machine
- 1 projector instrument
- 2 water high pressure testing machines
- 4 thermal resistance testing machines
- 2 liquid leakage testing machines
- Prompt response to all inquiries
- Competitive pricing with guaranteed quality
- Efficient production scheduling
- Optimal transportation solutions
- Comprehensive technical support
We are a professional manufacturer of heat sinks and water cooling plates with extensive experience and a strong technical team, featuring automated and mechanized production.
60% of our total production is exported to Japan, India, UK, Canada, USA, and Brazil.
Approximately 100 employees across sales, purchasing, engineering, QA, warehouse, and production departments.
Yes, we provide samples for confirmation before mass production, along with technical drawings if required.
Customized packing with normal cartons and tight-proof fabric or wooden cartons for optimal protection during transportation.
All products are fully inspected before shipping. For any issues, we provide immediate technical solutions.
