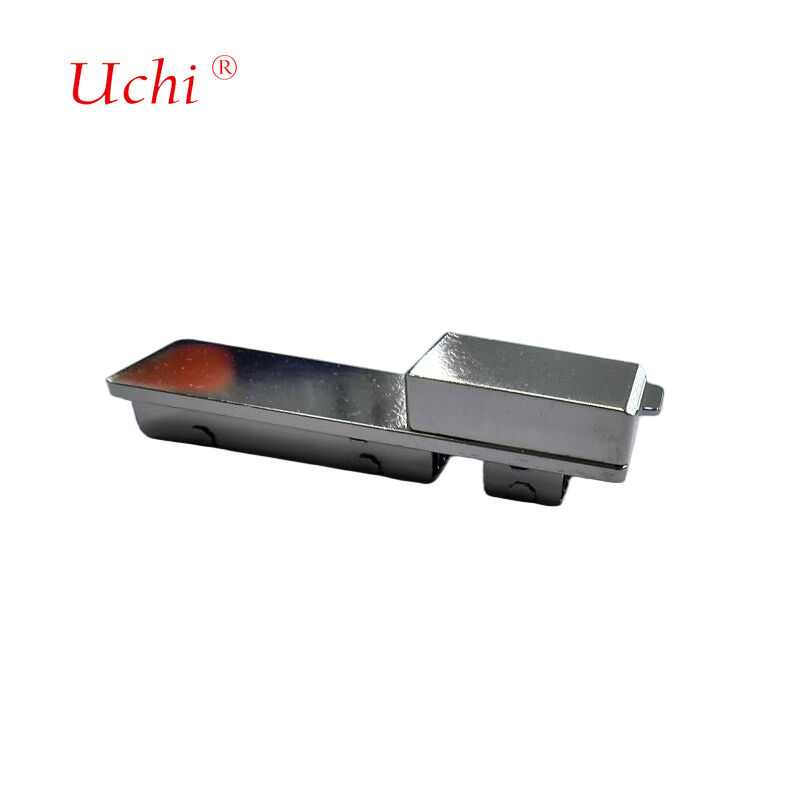

Compact Optical Module Air-cooled Heat Sink, Suitable For Small Form-factor Pluggable (SFP) Optical Modules
Product Details:
| Place of Origin: | Dongguan，Guangdong,China |
| Brand Name: | Uchi |
| Certification: | SMC |
| Model Number: | Air-cooled radiator 1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Payment Terms: | T/T，paypal， Western Union,MoneyGram |
| Supply Ability: | 50000000pcs per Month |
|
Detail Information |
|||
| Material: | Aluminum Alloy / Copper Alloy | Thermal Conductivity: | ≥ 180 W/m·K |
|---|---|---|---|
| Heat Dissipation Power: | Supports Single-module Heat Dissipation Power ≤ 15W | Warranty: | 1 Year |
| Certification: | AS9100,IATF16949,ISO13485 | Mounting Method: | Snap-fit / Screw Fixation, Closely Attached To The Optical Module Housing |
| Highlight: | Compact optical module heat sink,Air-cooled SFP module heatsink,Small form-factor pluggable cooling plate |
||
Product Description
Compact Optical Module Air-cooled Heat Sink
Designed for Small Form-factor Pluggable (SFP) optical modules, this compact air-cooled heat sink provides efficient thermal management for high-performance optical communication systems.
Technical Specifications
| Material | Aluminum alloy / Copper alloy (thermal conductivity ≥ 180W/m·K) |
| Compatible Optical Module Types | QSFP/QSFP28 (for 100G/200G optical modules) |
| Heat Dissipation Power | Supports single-module power consumption ≤ 15W |
| Dimensions | Length approx. 50-60mm, thickness ≤ 8mm (compatible with standard Cage housing) |
| Mounting Method | Snap-fit / screw fixation, closely attached to the optical module housing |
Application Fields
- 100G/200G pluggable optical modules for data center switches
- Small optical modules for fronthaul/mid-haul equipment of 5G base stations
- Low-power optical communication components for edge computing nodes
Manufacturing Capabilities
Advanced Brazing Technology
Brass / Copper CNC
Aluminium / Zinc CNC
Stainless Steel / Steel CNC
Plastic CNC
Key Applications
Production Equipment
Our air-cooled equipment includes: 10 units of low-temperature solder reflow ovens, 5 units of baking ovens, 20 units of automatic solder dispensing equipment, 3 units of automatic solder brushing equipment, 50 units of torque-controlled electric screwdrivers, 1 unit of CCD inspection equipment, 2 units of fully automatic optical module testing equipment, 11 units of multi-station thermal performance testing equipment, 4 units of flatness optical testing equipment, and other related equipment.
Quality Assurance
We maintain rigorous quality standards with 1 Coordinate Measuring Machine, 1 projector instrument, 2 water high pressure testing machines, 4 thermal resistance testing machines, and 2 liquid leakage testing machines.
Customer Service
- Prompt response to all inquiries
- Competitive pricing with guaranteed quality
- Efficient production scheduling
- Optimal transportation solutions
- Comprehensive technical support
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a professional manufacturer of heat sinks and water cooling plates with extensive experience and a strong technical team, featuring automated and mechanized production.
Have you exported goods before and to which regions?
60% of our total production is exported to Japan, India, UK, Canada, USA, and Brazil.
How many employees do you have?
Approximately 100 employees across sales, purchasing, engineering, QA, warehouse, and production departments.
Can you provide samples if we agree with the design?
Yes, we provide samples for confirmation before mass production, along with technical drawings if required.
What packing methods do you use?
Customized packing with normal cartons and tight-proof fabric or wooden cartons for optimal protection during transportation.
Do you provide technical support for product issues?
All products are fully inspected before shipping. For any issues, we provide immediate technical solutions.
