Capless 2Vrms To 3Vrms Line Driver With Adjustable Gain Integrated Circuit IC
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | UCHI |
| Certification: | Completed |
| Model Number: | SGM8902 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard |
| Delivery Time: | 3weeks |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 5000pcs |
|
Detail Information |
|||
| Supply Voltage: | -0.3V To 6V | Input Voltage: | VSS - 0.3V To VDD + 0.3V |
|---|---|---|---|
| Minimum Load Impedance (RL): | 600Ω | EN To GND: | -0.3V To VDD + 0.3V |
| Junction Temperature: | +150℃ | Storage Temperature Range: | -65℃ To +150℃ |
| Lead Temperature (Soldering, 10s): | +260℃ | HBM: | 4000V |
| CDM: | 1000V | MM: | 300V |
| Highlight: | 2Vrms to 3Vrms line driver IC,adjustable gain integrated circuit,high power MOSFET line driver |
||
Product Description
Capless 2Vrms To 3Vrms Line Driver With Adjustable Gain Integrated Circuit IC
The SGM8902 is a 2Vrms to 3Vrms pop/click-freestereo line driver. The device is ideal for single supplyapplications. Capless design can eliminate outputDC-blocking capacitors for less-component count andlow-cost.The SGM8902 has differential inputs and is capable ofdriving 2Vrms into a 2.5kΩ load with 3.3V supplyvoltage. Build-in shutdown control also helps forpop/click-free on/off control. The gain can be set byusers from ±1V/V to ±10V/V through external gainsetting resistors that also allows the implementation ofa 2nd-order low pass filter to compliment SOC andDAC's converters.SGM8902 does not require a power supply. Anintegrated charge pump generates a 2Vrms outputnegative power rail that provides a clean, pop/click-freeground offset.The SGM8902 is available in a Green TSSOP-14package. It operates over an ambient temperaturerange of -40℃ to +85℃
Key Features
● Supply Voltage Range: 3V to 5.5V
● Output Voltage into 2.5kΩ Load
2Vrms at 3.3V Supply Voltage
3Vrms at 5V Supply Voltage
● Capless Structure
Pop/Click-Free
Eliminates Output DC-Blocking Capacitors
Provides Flat Frequency Response
● Differential Inputs
● Low Noise and THD
SNR = 114dB (TYP)
VN = 5.5μVrms (TYP)
THD+N = 0.001% (f = 1kHz)
● -40℃ to +85℃ Operating Temperature Range

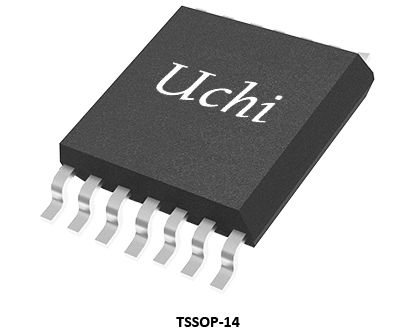

● Available in a Green TSSOP-14 Package
Applications
LCD TV
Set-Top Box
Home Theater
Blue-Ray DVD-Players
Set-Top Box
Home Theater
Blue-Ray DVD-Players
Typical Operation Circuit
Pin Configurations
Pin Configurations
Product Selection Guide
| Part Number | Output Voltage
RL = 2.5kΩ
THD = 1%, VCC = 5.0V
|
Output Voltage
RL = 2.5kΩ
THD = 1%, VCC = 3.3V
|
Stereo
or
Mono
|
Vcc
(V)
|
Differential
Input
|
Shutdown
Logic
|
Shutdown
Current
(μA)
|
Click-Pop
Suppression
|
Package
|
Features |
|---|---|---|---|---|---|---|---|---|---|---|
| SGM8902 | 3.05Vms | 2.05Vms | Stereo | 3.0~5.5 | Yes |
Active Low
|
130 | Yes |
TSSOP-14
|
600Ω Audio Line Driver
|
| SGM8903 | 3.05Vms | 2.05Vms | Stereo | 3.0~5.5 | Yes | Active Low | 130 | Yes |
TSSOP-14
|
600Ω Audio Line Driver with UVP Function
|
| SGM8904 | 3.05Vms | 2.05Vms | Stereo | 3.0~5.5 | No | Active Low | 130 | Yes |
MSOP-10
|
600Ω Audio Line Driver with UVP Function
|
| SGM8905 | 3.05Vms | 2.05Vms | Stereo | 3.0~5.5 | No | Active Low | 130 | Yes |
MSOP-10 (Exposed Pad)
|
600Ω Audio Line Driver with UVP Function |
| SGM8909 | 3.05Vms† | 2.05Vms† | Stereo | 3.0~5.5 | No | Active Low | 3400 | Yes | TSSOP-14 |
Audio Line Driver with Power On/Off Timing Control
|
| SGM89000 | 2.05Vms | Stereo | 3.0~5.5 | Yes | Active Low | 130 | Yes | TSSOP-14 | 600Ω Audio Line Driver with UVP Function | |
| SGM89111 | 3.05Vms | 2.05Vms | Stereo | 3.0~5.5 | Yes | Active Low | Yes | TSSOP-20 |
Audio Line Driver with Video Driver
|
|
| SGM89112 | 3.05Vms | 2.05Vms | Stereo | 3.0~5.5 | No | Active Low | Yes | TSSOP-16 | Audio Line Driver with Video Driver |
Note: † RL = 600Ω
