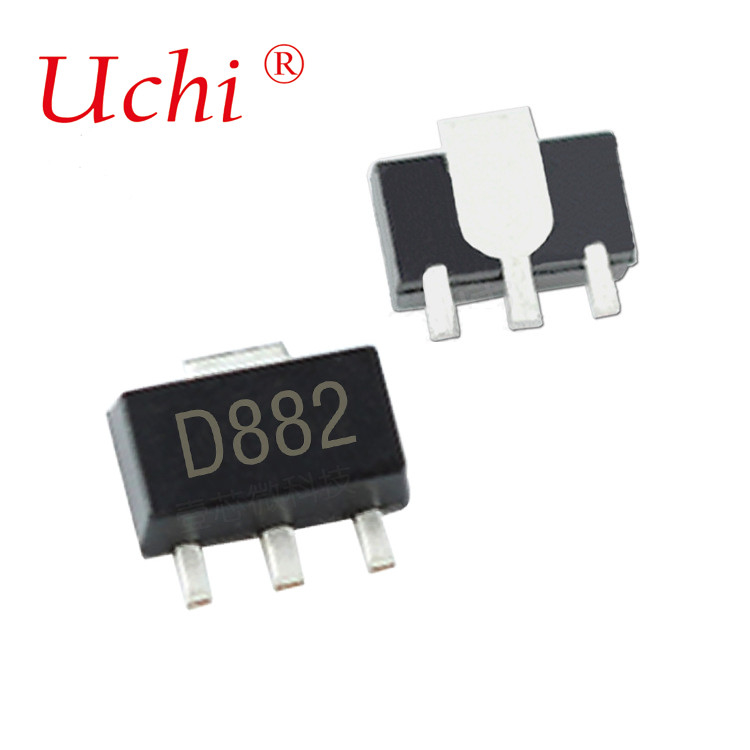

SOT-89 D882 NPN Electronic Transistors Plastic Encapsulate Power Dissipation
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | UCHI |
| Certification: | Completed |
| Model Number: | D882 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiable |

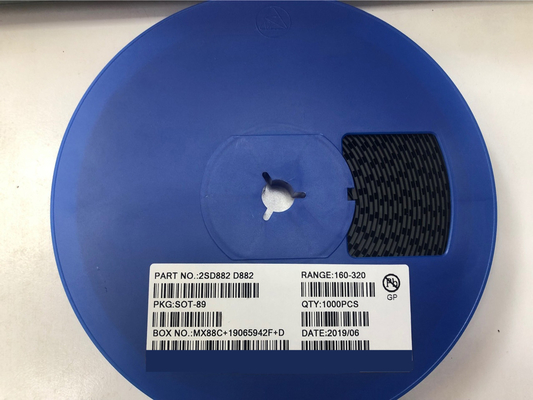

| Packaging Details: | Standard |
| Delivery Time: | 3weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs |
|
Detail Information |
|||
| Highlight: | NPN electronic transistors,Plastic Encapsulate electronic transistors,Power Dissipation electronic transistors |
||
|---|---|---|---|
Product Description

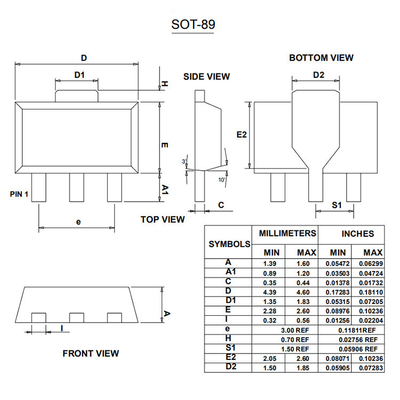

SOT-89 D882 Plastic-Encapsulate Transistors
Features
Power dissipation
MAXIMUM RATINGS (Ta=25℃ unless otherwise noted)
| Symbol | Parameter | Value | Unit |
| VCBO | Collector-Base Voltage | 40 | V |
| VCEO | Collector-Emitter Voltage | 30 | V |
| VEBO | Emitter-Base Voltage | 6 | V |
| IC | Collector Current -Continuous | 3 | A |
| PC | Collector Power Dissipation | 0.5 | W |
| TJ | Junction Temperature | 150 | ℃ |
| Tstg | Storage Temperature | -55~150 | ℃ |
ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified)
| Parameter | Symbol | Test conditions | Min | Typ | Max | Unit |
| Collector-base breakdown voltage | V(BR)CBO | IC = 100μA, IE=0 | 40 | V | ||
| Collector-emitter breakdown voltage | V(BR)CEO | IC = 10mA, IB=0 | 30 | V | ||
| Emitter-base breakdown voltage | V(BR)EBO | IE= 100μA, IC=0 | 6 | V | ||
| Collector cut-off current | ICBO | VCB= 40V, IE=0 | 1 | µA | ||
| Collector cut-off current | ICEO | VCE= 30V, IB=0 | 10 | µA | ||
| Emitter cut-off current | IEBO | VEB= 6V, IC=0 | 1 | µA | ||
| DC current gain | hFE(1) | VCE=2V, IC= 1A | 60 | 400 | ||
| hFE(2) | VCE=2V, IC= 100mA | 32 | ||||
| Collector-emitter saturation voltage | VCE(sat) | IC= 2A, IB= 0.2 A | 0.5 | V | ||
| Base-emitter saturation voltage | VBE(sat) | IC= 2A, IB= 0.2 A | 1.5 | V | ||
| Transition frequency | fT | VCE= 5V , Ic=0.1A f =10MHz | 50 | MHz |
CLASSIFICATION OF hFE(1)
| Rank | R | O | Y | GR |
| Range | 60-120 | 100-200 | 160-320 | 200-400 |
Typical Characteristics
