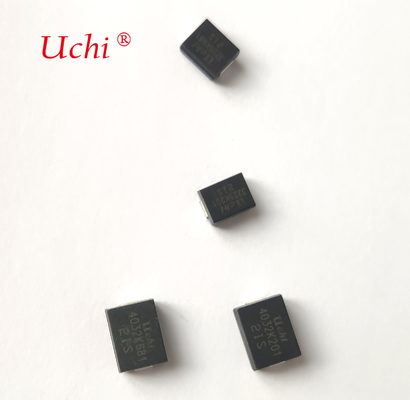

Original 3225 SMD Varistor , 3225K201 21S Metal Oxide Varistor MOV ZOV
Product Details:
| Place of Origin: | Dongguan,China |
| Brand Name: | UCHI |
| Certification: | CQC,CUL,TUV，RoSH,REACH |
| Model Number: | SMD3225 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bulk |
| Delivery Time: | 10-15 workday |
| Payment Terms: | T/T |
| Supply Ability: | 50000000PCS/MONTH |
|
Detail Information |
|||
| Application: | 1.LEDcircuitprotection 2.Industrialequipment 3.Communicationequipment 4.AutomotiveElectronics | Workingtemperature: | -55 +125 |
|---|---|---|---|
| Storagetemperature: | -55 +125 | AllowableVoltage: | ≥2.5KVRMS |
| Insulationresistance: | ≥100MΩ | SizeCode: | SMD3225 |
| Highlight: | ZOV SMD Varistor,3225 SMD Varistor,MOV Metal Oxide Varistor |
||
Product Description
3225 SMD varistor Original 3225K201 21S Metal Oxide Varistor MOV ZOV
Feature
1.Advancedpackagingtechnology,packagingmaterialsmeetUL94-V0
2.Compactstructure,smallsize,spacesaving
3.Superiorhightemperatureandhighhumidityperformance
4.Strongabilitytosuppresshighsurgeandhighcurrent
5.SMDtraypackaging,suitableforlead-freereflowsoldering/wavesolderingautomaticplacement
6.ComplywithRoSH,REACH
7.Safetycertification:CQC,CUL,TUV(certificationinprogress)
Application
1.LEDcircuitprotection
2.Industrialequipment
3.Communicationequipment
4.AutomotiveElectronics
Applicablestandards
1.UL1449
2.IEC61051-1,-2,-2-2,IEC60950-1AnnexQ
3.GB/T10193,GB/T10194,GB4943.1,GB8898
4.IEC61000-4-5
General Technical data
| Item | Parameter value | Unit |
| Working temperature | -55 — + 125 | C |
| Storage temperature | -55 — + 125 | C |
| Allowable Voltage | ≥ 2.5 | KVRMS |
| Insulation resistance | ≥ 100 | M Ω |
Structure and Dimensions
(Unit: mm
| Size Code | Varistor Voltage (V) | L | W | H |
|
3225 |
V1ma=201—681 | 8.2±0.3 | 6.3±0.3 | 3.8±0.3 |
| V1ma=751—821 | 5.2±0.3 |
Dimensions
( unit: mm )
| Model number | A | B | C | L |
| 3225 | 3.5 | 2.8 | 4.5 | 10.1 |
The following is the specification sheet
