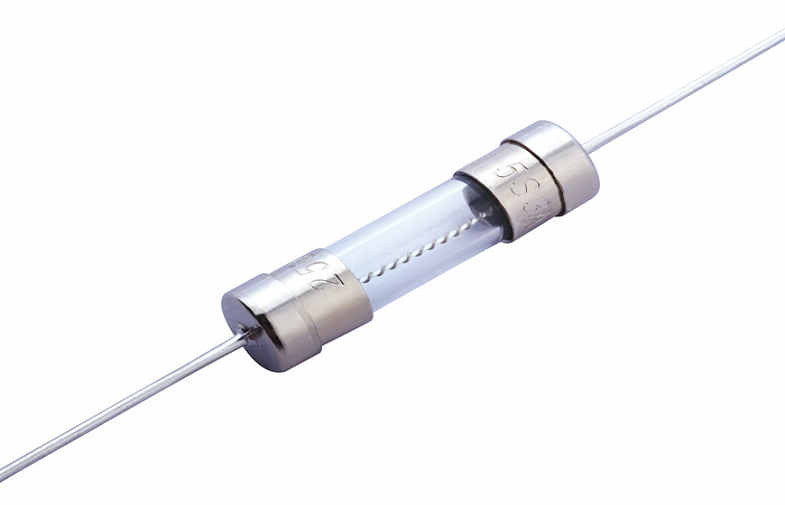

Fast-acting 3A 250V Fuse , 5x20mm Glass Fuse For LED Power Supply



Quick Detail:



1. Thermoplastic Fuse

2. 300V available

3. Used for power supply,LED,CFL,PCB especially

4. Exact melting time

5. Stronger packing prevent damage when transport

6. Environmental Protection Material

7. Reel packing





Description:





Glass fuse is an electric element protecting electric devices. It is commonly connected with a circuit in series, and when fault current increases to a certain value, the fuse blows out to cut off the circuit so as to fulfill an aim of protecting other equipment in the circuit. The fuse is the most commonly used component in a over-current protection circuit. The traditional fuse mainly consists of two parts of a tube body, of which both ends have metal connecting terminals, and metal melt in the tube body. The majority of fuses are cylinder-shaped, namely cartridge construction. But nowadays, with the fast development of advanced technology, some special materials are well applied, the fuse industry has started to move forward in the direction of sub-miniature products and a series of new products such as Surface Mounted Devices type fuse are successively developed.





Applications:





Glass Fuse is suitable for various kinds of electronic devices’ circuit over current protection. Widely used in industrial of Lighting, Power supply and Adapter applications, etc.





Specifications:





1.      Standards and Agency Approvals

1.1  Standards:In accordance with UL 248 -1 / -14.



1.2 Certification:

Voltage Rating

Agency

Ampere Range

Agency File Number

125V/250V

UL

200mA ~ 10A

E340427(JDYX)

C-UL

200mA ~ 10A

E340427( JDYX7)

PSE

200mA ~ 10A

Pending

KTL

200mA ~ 10A

Pending



1.3 Catalogue No.,A=250V / B=125V,● Approved ○ Pending                            UL       CUL     PSE

Catalog

No.

Ampere

Rating

Voltage

Rating

Breaking

Capacity

I2TMelting

Integral(A2.S)

Agency Approvals







PSE

SFC0100A/B

100mA

250V/125V

10000A@125 V AC (200mA~10A);



35A@250V AC (200mA~1A);



100A@250V AC (1.25A~3.5A);



200A@250V AC (4A~10A).



0.002

SFC0125A/B

125mA

250V/125V

0.003

SFC0160A/B

160mA

250V/125V

0.005

SFC0200A/B

200mA

250V/125V

0.01

SFC0250A/B

250mA

250V/125V

0.02

SFC0300A/B

300mA

250V/125V

0.04

SFC0315A/B

315mA

250V/125V

0.045

SFC0350A/B

350mA

250V/125V

0.055

SFC0400A/B

400mA

250V/125V

0.07

SFC0500A/B

500mA

250V/125V

0.1

SFC0630A/B

630mA

250V/125V

0.2

SFC0750A/B

750mA

250V/125V

0.35

SFC0800A/B

800mA

250V/125V

0.45

SFC1100A/B

1A

250V/125V

0.9

SFC1125A/B

1.25A

250V/125V

1.3

SFC1150A/B

1.5A

250V/125V

1.6

SFC1160A/B

1.6A

250V/125V

2.5

SFC1200A/B

2A

250V/125V

5.8

SFC1250A/B

2.5A

250V/125V

7.6

SFC1300A/B

3A

250V/125V

8.1

SFC1315A/B

3.15A

250V/125V

11

SFC1350A/B

3.5A

250V/125V

19

SFC1400A/B

4A

250V/125V

28

SFC1500A/B

5A

250V/125V

40

SFC1600A/B

6A

250V/125V

50

SFC1630A/B

6.3A

250V/125V

64

SFC1700A/B

7A

250V/125V

107

SFC1800A/B

8A

250V/125V

133

SFC2100A/B

10A

250V/125V

242

SFC2120A/B

12A

250V/125V

-

SFC2150A/B

15A

250V/125V

-

SFC2200A/B

20A

250V/125V

-

SFC2250A/B

25A

250V/125V

-

SFC2300A/B

30A

250V/125V

-



2.      Product Marking

The fuses cap shall have the following markings.





Example:

Fast-acting 3A 250V Fuse , 5x20mm Glass Fuse For LED Power Supply 0

 Fast-acting 3A 250V Fuse , 5x20mm Glass Fuse For LED Power Supply 1



 Note:Size and position of the markings shall not be provided.



3.      Appearances and Configuration

3.1 There shall not be any remarkable stain and crack on the appearances, markings shall be easily legible.



3.2 Configuration:Axial Leaded Miniature Glass Tube Fuse.

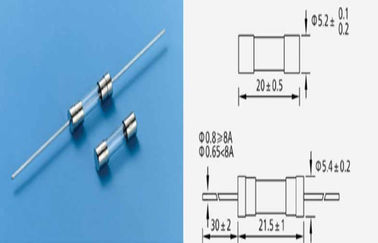

4.      Dimensions and Structure

Unit: mm





Fast-acting 3A 250V Fuse , 5x20mm Glass Fuse For LED Power Supply 2

5.      Material Details

NO.

Part Name

Material

1

Cap

Nickel Plated Brass

2

Body

Glass Tube

3

Fuse element

Alloy

Lead wire

Tin Plated Copper



 6.Product Characteristics



6.1 Lead Pull Strength

5N for 10±1 Seconds



6.2 Lead Thrust Strength

2N for 10±1 Seconds



6.3 Solder ability

Wave : 260℃,≤3s;

Soldering Iron: 350±10℃,≤3s.



6.4 Soldering Heat Resistance

Wave : 260℃,10s;

  Soldering Iron: 350℃,5s.



7.      Electrical Characteristics



    7.1 Test Condition

      All electrical test is to be conducted with the ambient air at a temperature of 25±5℃.



          7.2 Load capacity:

When the fuse loads through 100% of rated current, should blow within 4 hours.



7.3 Interrupting Rating:



Breaking Capacity:

10000A at125 V AC (SFC In range 200mA~10A);

35A at 250V AC (SFC In range 200mA~1A);

100A at 250V AC (SFC In range 1.25A~3.5A);

200A at 250V AC (SFC In range 4A~10A).



7.4 Rising Temperature Test:

When the 100% times of Ampere Rating passes the fuse, after reaching thermal balance , the temperature on the fuse surface rising shall not be higher than 75℃. Note: Rising temperature = the Surface temperature - Ambient temperature.



7.5 Operating Characteristics

% of Ampere Rating(In)

Blowing Time

100%* In

4 hours Min

135%* In

1 hour Max

200%* In

5 sec Max

 7.6 Average Time Current Curves



Fast-acting 3A 250V Fuse , 5x20mm Glass Fuse For LED Power Supply 3



8.      Environmental Characteristic



8.1 Operating Temperature

-55℃~+125℃.



8.2 Stock Condition

Humidity:Relative humidity ≤ 75% store 3 years in average.



8.3  When choosing the fuse's specification, if the operating environmental temperature beyond the scope from 20~30℃, engineer should consider the environmental temperature's affection to fuses. Please refer: Temperature Rerating Curve:

Fast-acting 3A 250V Fuse , 5x20mm Glass Fuse For LED Power Supply 4



9.      Installation Recommendations



9.1Propose installation way as following picture.



A,Horizontal installation

Fast-acting 3A 250V Fuse , 5x20mm Glass Fuse For LED Power Supply 5







B,Vertical installation



 Fast-acting 3A 250V Fuse , 5x20mm Glass Fuse For LED Power Supply 6















C,Vertical installation



 Fast-acting 3A 250V Fuse , 5x20mm Glass Fuse For LED Power Supply 7













9.2 Recommended Soldering Parameters

A.      Wave Parameters:

Solder Pot Temperature: 260℃ Max

Solder Dwell Time: 2~5s



B.       Hand-Solder Parameters:

Solder Iron Temperature: 350±5℃

Heating Time: 5s Max



10.      Packaging



10.1 The following items indicated on the label:

Catalog number, ratings (voltage, current), interrupting type and safety mark.

The packing material conforms to ROHS/REACH/HF environmental protection request. And the packing materials will not have the chemical reaction with the components.



10.2 Packing Quantity



Bulk 250 pcs in per poly bag;

10 poly bags in per inner box;

4 inner boxes in per outer carton

    10.3 Packing Size

        Unit: mm







A. Inner box:

B. Outer carton:

L240±2 * W170±2 * H110±2

L390±5 * W240±5 * H250±5









Fast-acting 3A 250V Fuse , 5x20mm Glass Fuse For LED Power Supply 8











Fast-acting 3A 250V Fuse , 5x20mm Glass Fuse For LED Power Supply 9













11.  Others



11.1 In the event that an impropriety is found beyond this specification, it shall be fixed by mutual agreement between the parties.

11.2 In the event that an impropriety is found in this specification, Dongguan Uchi ELECTRONICS CO., LTD. shall amend it by mutual agreement between the parties.
