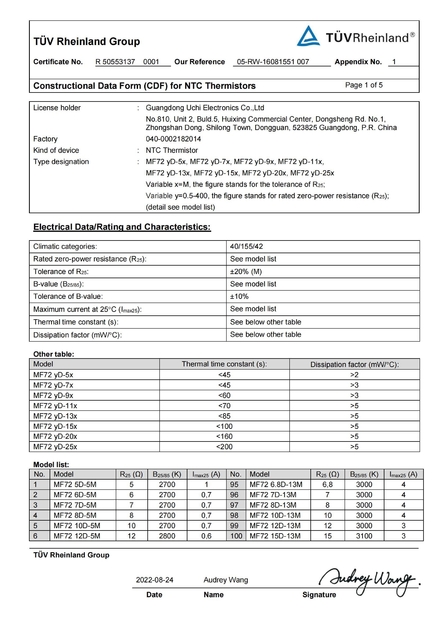

Certification
China Dongguan Uchi Electronics Co.,Ltd. certification
China Dongguan Uchi Electronics Co.,Ltd. certification
Good communication. Will buy from again !

—— Mark Kim

Professional & Patient Sales ,fair transaction

—— Penka Kalacheva

Reliable partner, worth being go on cooperation !

—— Rakesh Saini

QC Profile

Our production line proceed with ISO 9001 2008 Quality system and all our product test comply with ROHS,UL standard in order to supply customer good quality product as accordingly !



Dongguan Uchi Electronics Co.,Ltd. quality control 0Dongguan Uchi Electronics Co.,Ltd. quality control 1Dongguan Uchi Electronics Co.,Ltd. quality control 2Dongguan Uchi Electronics Co.,Ltd. quality control 3Dongguan Uchi Electronics Co.,Ltd. quality control 4Dongguan Uchi Electronics Co.,Ltd. quality control 5Dongguan Uchi Electronics Co.,Ltd. quality control 6Dongguan Uchi Electronics Co.,Ltd. quality control 7

Dongguan Uchi Electronics Co.,Ltd. quality control 8Dongguan Uchi Electronics Co.,Ltd. quality control 9



Test Item Test Standard Test method Performance requirements
Zero Power Resistance IEC 60539-1 Immerse samples in the constant temperature bath at 25℃±0.005℃,test steady resistance

Resistance tol ±1%



B value IEC60539-1 Immerse samples in the constant temperature bath at 25℃,50℃(or 85℃), test steady resistance,and calculate B value

Resistance tol ±1%



Free fall

IEC60068-2-32



Fall height: 1.5±0.1m,Surface: Cement , 1 time

No obvious damage, R25 △R/R≤±1%



Insulation

IEC60539-1



500V pressure on insulation shell test insulation resistance

>500MOhm



Withstand voltage IEC60539-1

Withstand voltage: 1500V/AC ,Leakage current:2mA Lasting: 60sec



No obvious damage



Tension IEC60068-2-21

Pull uniform speed at the end, F>4.0KG(requested by customer)



No obvious damage, R25 △R/R≤±1%



Vibration Q/HBm 108-94 Test frequency: 10~500Hz,swing: 1.2mm acceleration: 30m/s2 Direction X,Y,Z Time:8Hour/direction

No obvious damage, R25 △R/R≤±1%



Steady humidity and heat IEC60068-2-78 Temp:40±2℃ Humidity:92-95%RH Time:1000±24Hour

No obvious damage, R25 △R/R≤±1%



Thermal time constant EC60539-1 Immerse in 25℃ water,after thermal balance,immerse in 85℃,resistance arrives 63.2%,calculate total time

<10 sec



High temperature storage IEC60068-2-2 Temp:125℃±5℃ Time: 1000±24Hour No obvious damage, R25 △R/R≤±1%
Cold and thermal shock IEC60068-2-14

-40℃~+125℃ T1:30min Cycle time:1000



No obvious damage, R25 △R/R≤±1%



Knock experiment IEC60068-2-77

Acceleration:250m/s2 Pulse lasting: 6ms Knock times: 1000 Recovery time: 2 Hour



No obvious damage, R25 △R/R≤±1%



Low temperature storage IEC60068-2-1

Temp: 40±2℃ Time: 1000±24Hour



No obvious damage, R25 △R/R≤±1%



Salt spray IEC60068-2-11 Temp: 35±2℃ Collection hour : 1.0mL~2.0mL Time: determine per as actual demand

No obvious damage, R25 △R/R≤±1%



Certification
  • China Dongguan Uchi Electronics Co.,Ltd. certification

    Standard:REACH Or SGS(SVHC)

    Number:CANEC2002313201

    Issue Date:2020-03-14

    Expiry Date:2020-04-14

    Scope/Range:NTC Thermistor

    Issued By:SGS GROUP

  • China Dongguan Uchi Electronics Co.,Ltd. certification

    Standard:UL

    Number:E317616

    Issue Date:2011-07-14

    Expiry Date:2019-07-14

    Scope/Range:05D,07D,10D,14D,20D,25D,32D

    Issued By:Underwriters Laboratories Inc.

  • China Dongguan Uchi Electronics Co.,Ltd. certification

    Standard:VDE

    Number:40028836

    Issue Date:2009-11-25

    Expiry Date:2015-11-25

    Scope/Range:05D,07D,10D,14D,20D

    Issued By:VDE Pruf-und Zertifizierungsinstitut GmbH

  • China Dongguan Uchi Electronics Co.,Ltd. certification

    Standard:CQC

    Number:CQC1001040611

    Issue Date:2010-01-20

    Expiry Date:2015-01-20

    Scope/Range:Metal Oxide varistor 7D

    Issued By:CHINA QUALITY CERTIFICATION CENTRE

  • China Dongguan Uchi Electronics Co.,Ltd. certification

    Standard:CSA

    Number:1352955(LR 115266)

    Issue Date:2013-04-12

    Expiry Date:2015-04-12

    Scope/Range:Metal Oxide varistor 5D & 7D

    Issued By:CSA INTERNATIONAL

  • China Dongguan Uchi Electronics Co.,Ltd. certification

    Standard:ISO 9001:2008

    Number:UQ101392R0

    Issue Date:2011-11-25

    Expiry Date:2014-11-25

    Scope/Range:Varistor,thermistor and deguassing resistor

    Issued By:Beijing United Intelligence Certification Co.,Ltd.

  • China Dongguan Uchi Electronics Co.,Ltd. certification

    Standard:SGS

    Number:CANEC1304860002

    Issue Date:2013-04-18

    Expiry Date:2015-04-18

    Scope/Range:Metal Oxide Varistor All type

    Issued By:SGS-CSTC Ltd.

  • China Dongguan Uchi Electronics Co.,Ltd. certification

    Standard:SGS(SVHC)

    Number:CANEC1309502701

    Issue Date:2013-07-08

    Expiry Date:2015-07-08

    Scope/Range:Metal Oxide Varistor All type

    Issued By:SGS-CSTC Ltd.

  • China Dongguan Uchi Electronics Co.,Ltd. certification

    Standard:Guangdong Province Famous and High quality

    Number:Z02J-GD-SY2762

    Issue Date:2013-09-01

    Expiry Date:2016-09-01

    Scope/Range:COMPANY

    Issued By:The Chinese quality supervision committee

  • China Dongguan Uchi Electronics Co.,Ltd. certification

    Standard:Trademark Registration Certificate

    Number:5630193

    Issue Date:2009-08-21

    Expiry Date:2019-08-20

    Scope/Range:9 electronics

    Issued By:The trademark office of the People's Republic of China

  • China Dongguan Uchi Electronics Co.,Ltd. certification

    Standard:NON-GOVERMENT RUN SCIEN

    Number:20122701076

    Issue Date:2012-05-02

    Expiry Date:2022-05-02

    Scope/Range:guangdong province

    Issued By:Dongguan Science And Technology

  • China Dongguan Uchi Electronics Co.,Ltd. certification

    Standard:CCPIT

    Number:134403A0/54259

    Issue Date:2013-07-26

    Expiry Date:2018-02-07

    Scope/Range:9 electronics

    Issued By:CCPIT

  • China Dongguan Uchi Electronics Co.,Ltd. certification

    Standard:Guangdong Province Star Enterprises

    Issue Date:2011-06-20

    Expiry Date:2021-06-20

    Scope/Range:COMPANY

    Issued By:Alibaba Group

  • China Dongguan Uchi Electronics Co.,Ltd. certification

    Standard:Guangdong Province Excellent Independent Brand

    Issue Date:2012-12-07

    Expiry Date:2018-02-07

    Scope/Range:COMPANY

    Issued By:Federation Of Enterprises In Guangdong Province

  • China Dongguan Uchi Electronics Co.,Ltd. certification

    Standard:Utility Model Patent

    Number:zl201120480909.3

    Issue Date:2011-11-28

    Expiry Date:2021-11-28

    Scope/Range:Photoresistor

    Issued By:the State Intellectual Property Office of the People's Republic of China

  • China Dongguan Uchi Electronics Co.,Ltd. certification

    Standard:Trademark registration certificate

    Number:9323821

    Issue Date:2012-06-21

    Expiry Date:2022-06-20

    Scope/Range:35

    Issued By:The trademark office of the People's Republic of China

  • China Dongguan Uchi Electronics Co.,Ltd. certification

    Standard:the Patent of appearance design

    Number:1734418

    Issue Date:2011-05-05

    Expiry Date:2021-05-05

    Scope/Range:mov varistor

    Issued By:the State Intellectual Property Office of the People's Republic of China

  • China Dongguan Uchi Electronics Co.,Ltd. certification

    Standard:Utility Model Patent

    Number:2328732

    Issue Date:2012-08-01

    Expiry Date:2022-08-01

    Scope/Range:Photoresistor

    Issued By:the State Intellectual Property Office of the People's Republic of China

  • China Dongguan Uchi Electronics Co.,Ltd. certification

    Standard:Utility Model Patent

    Number:2328934

    Issue Date:2012-08-01

    Expiry Date:2022-08-01

    Scope/Range:varstor

    Issued By:he State Intellectual Property Office of the People's Republic of China

  • China Dongguan Uchi Electronics Co.,Ltd. certification

    Standard:the Patent of appearance design

    Number:2307372

    Issue Date:2013-01-23

    Expiry Date:2023-01-23

    Scope/Range:earphone

    Issued By:The State Intellectual Property Office of the People's Republic of China

  • China Dongguan Uchi Electronics Co.,Ltd. certification

    Standard:the Utility Model Patent

    Number:2668623

    Issue Date:2013-01-23

    Expiry Date:2023-01-23

    Scope/Range:earphone

    Issued By:The State Intellectual Property Office of the People's Republic of China

  • China Dongguan Uchi Electronics Co.,Ltd. certification

    Standard:Utility Model Patent

    Number:2338573

    Issue Date:2012-08-01

    Expiry Date:2022-08-01

    Scope/Range:NTC thermisor

    Issued By:The State Intellectual Property Office of the People's Republic of China

  • China Dongguan Uchi Electronics Co.,Ltd. certification

    Standard:the Utility Model Patent

    Number:2504256

    Issue Date:2012-11-14

    Expiry Date:2022-11-14

    Scope/Range:fuse

    Issued By:The State Intellectual Property Office of the People's Republic of China

  • China Dongguan Uchi Electronics Co.,Ltd. certification

    Standard:the Patent of appearance design

    Number:1773817

    Issue Date:2011-12-21

    Expiry Date:2021-11-21

    Scope/Range:ntc thermistor

    Issued By:The State Intellectual Property Office of the People's Republic of China

  • China Dongguan Uchi Electronics Co.,Ltd. certification

    Standard:Utility Model Patent

    Number:2338573

    Issue Date:2012-08-01

    Expiry Date:2022-08-01

    Scope/Range:ntc thermistor

    Issued By:the State Intellectual Property Office of the People's Republic of China

  • China Dongguan Uchi Electronics Co.,Ltd. certification

    Standard:patent for invention

    Number:20111072265.6

    Issue Date:2011-09-01

    Expiry Date:2021-09-01

    Scope/Range:ptc thermistor

    Issued By:The State Intellectual Property Office of the People's Republic of China

  • China Dongguan Uchi Electronics Co.,Ltd. certification

    Standard:Keep the contract heavy credit enterprise in guangdong province

    Issue Date:2013-06-01

    Expiry Date:2023-06-01

    Scope/Range:guangdong province

    Issued By:Dongguan city administration for industry and commerce

  • China Dongguan Uchi Electronics Co.,Ltd. certification

    Standard:Export membership

    Issue Date:2010-01-06

    Expiry Date:2021-01-06

    Issued By:alibaba

  • China Dongguan Uchi Electronics Co.,Ltd. certification

    Standard:RoHS

    Number:A2190109541101001E

    Issue Date:2019-05-16

    Expiry Date:2020-05-16

    Scope/Range:NTC THERMISTOR

    Issued By:Centre Testing International Pinbiao(Shanghai) Co., Ltd.
