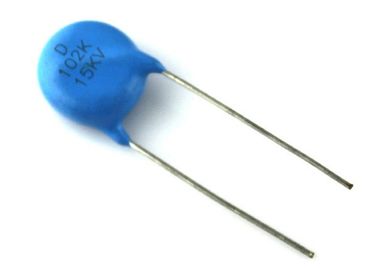

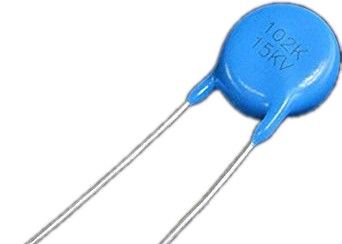

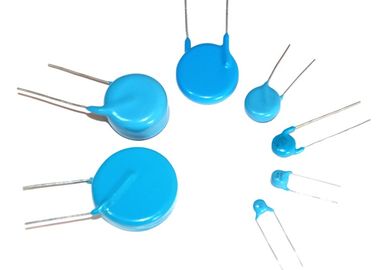

Murata Electronics DHR4E4C102K2FB Ceramic Disk Capacitor High Voltage 1000pF +/-10% DC15k Volt

Large Image :  Murata Electronics DHR4E4C102K2FB Ceramic Disk Capacitor High Voltage 1000pF +/-10% DC15k Volt

Product Details:

Brand Name: UCHI
Model Number: CT81-15KV-D19-F12.5-102K

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: 0.35~0.5 USD/Pieces
Packaging Details: Bulk
Delivery Time: Stocks for small quantity
Payment Terms: T/T
Supply Ability: 1000,000PCS Per Month
Detailed Product Description
Product Category: Ceramic Disc Capacitors Capacitance: 1000pF
Voltage Rating DC: 15KV DC Tolerance: 10%
Diameter: 18mm Lead Spacing: 12.5mm
Operating Temperature: -25~+85C Termination Style: Radial
Capacitance - NF: 1nF Capacitance - UF: 0.001uF
Unit Weight: 6 Gram Temperature Coefficient: +/- 1000 PPM / C




Murata Electronics DHR4E4C102K2FB Cross High Voltage Ceramic Disc Capacitors 1000pF +/-10% DC15k volt


About N4700 ceramic

Y5T is a better performance of Class II General Ceramics.Its temperature variation of capacitance is within
+22/-33% from -25°C to +85°C. Dissipation factor is less than 1%, insulation resistance greater than 100000MΩ.





Ceramic dielectric properties


NO.

Ceramic
Dielectric

Operating temperatureRange(℃)

Insulation
Resistance
(≥MΩ)

Dissipation
Factor≤

Temperature
characteristics

1

Y5T


-25/+85 100000 0.2% +/-28%



Dimension & Lead Style




◆Standard Ratings:
Withstanding voltage ≥ 1.5 times of rated voltage(in oil)


No. Part Number

Ceramic
Dielectric

Rated
voltage

Capacitance Dimensions(mm)
C TOL. D T F d
1 CT81-15KV-D19-F12.5-102K Y5T 15KVDC 1000 ±10% 18.5 7.5 12.5 0.8



◆Features
*Low dissipation factor of 1% at 1 KHZ
*High frequency ≥100KHZ
*High current ≥15mA
*High voltage ≥45KVDC
*High insulation resistance ≥100000MΩ
*Long life ≥10 years

*Low losses, High stability
*High capacitance in small sizes
*Radial leads
*Ceramic single layer capacitor
*Excellent heat-proof, humidity-proof and highdielectric strength voltage.
*Coated with flame-retardant epoxy resin.

◆Applications
*High voltage power supplies;
*gas lasers, high voltage pulse generator
*X-ray equipment
*Smart grid
*Industrial
*Military

*HID Xenon Lamp, HID Xenon Lights, HID Xenon Bulbs, HID lamps, (VT)Voltage transformers, (PT)Potential Transformer, High Voltage Transformers, Outdoor Voltage Transformers, Power Inverter Voltage Converter, Constant Voltage Transformer, Power Converter, Voltage Transformer, Voltage Converter, Power Converter Inverter Transformer,
*Color TV doublers and triplers
*High voltage DC power supplies (PPCs, X-ray apparatus, air cleaner, lasers, etc.)
*Tuning capacitor in focus circuit for display



PRECAUTIONS

(1) During transportation and storage
• Do not transport or store where the capacitor will be exposed to hightemperature or high humidity.
• Do not expose to poisonous gases such as H2SO4,HCL or HNO3.
• Avoid excessive impact such as that caused by falling.
(2) During operation
• Avoid contact with electrolytes such as perspiration.Do not touch with barehands.
• Avoid excessive impact such as that caused by falling.
• Do not apply solder to stud terminals.
• Do not re-machine the terminals.
(3) Usage
• When the capacitor is used for high-speed pulses such as with a laser, make sure that the impressed
voltage (peak-to-peak volt-age) is within the capacitor’s rated specifications.
•Make sure that the capacitor is not exposed to radiant heat from chambers or transformers.



15KV General Specifications
