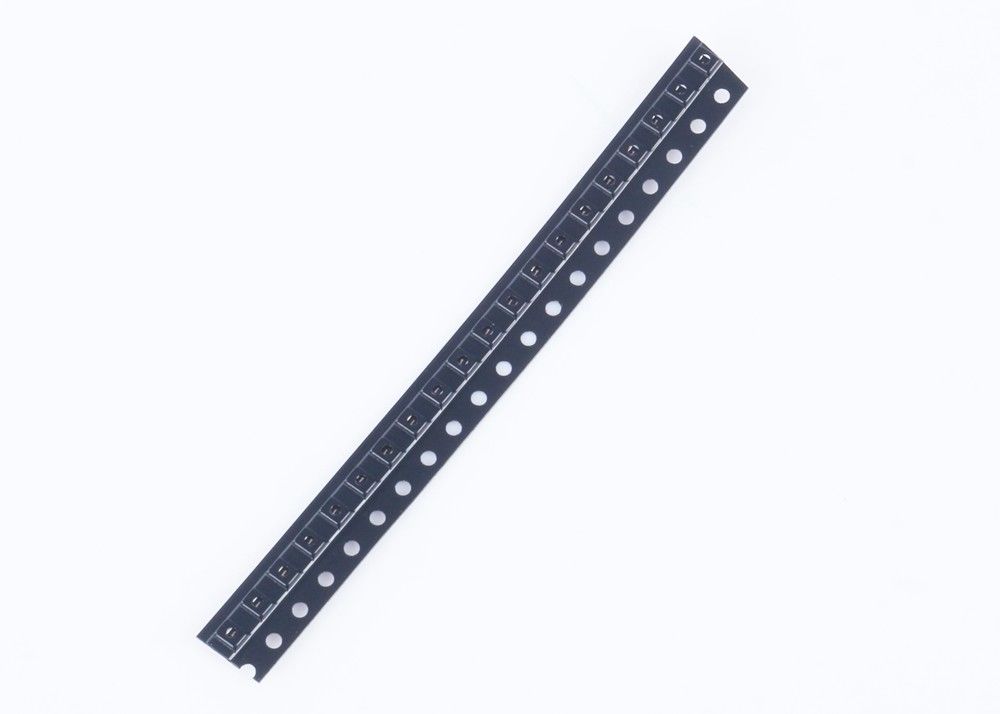

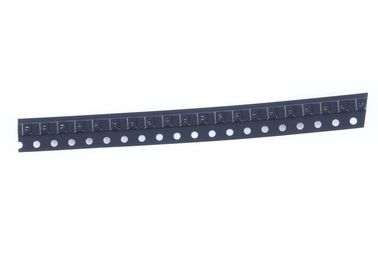

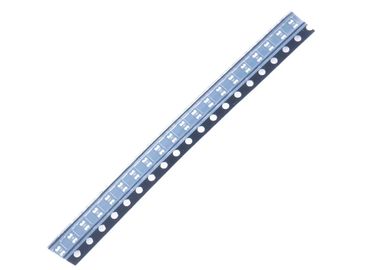

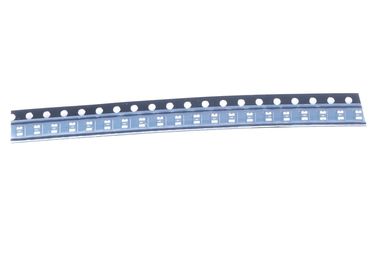

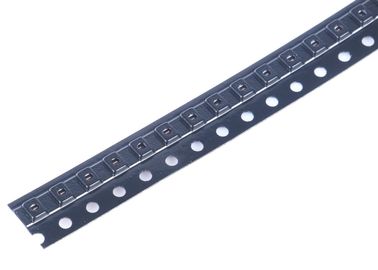

0805L010YR Cross 0805 2012 Metric PPTC Resettable Fuses 0.1A 15V Tape in Reel

0805L010YR Cross 0805 2012 Metric PPTC Resettable Fuses 0.1A 15V Tape in Reel
0805L010YR Cross 0805 2012 Metric PPTC Resettable Fuses 0.1A 15V Tape in Reel 0805L010YR Cross 0805 2012 Metric PPTC Resettable Fuses 0.1A 15V Tape in Reel 0805L010YR Cross 0805 2012 Metric PPTC Resettable Fuses 0.1A 15V Tape in Reel 0805L010YR Cross 0805 2012 Metric PPTC Resettable Fuses 0.1A 15V Tape in Reel 0805L010YR Cross 0805 2012 Metric PPTC Resettable Fuses 0.1A 15V Tape in Reel 0805L010YR Cross 0805 2012 Metric PPTC Resettable Fuses 0.1A 15V Tape in Reel 0805L010YR Cross 0805 2012 Metric PPTC Resettable Fuses 0.1A 15V Tape in Reel

Large Image :  0805L010YR Cross 0805 2012 Metric PPTC Resettable Fuses 0.1A 15V Tape in Reel Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: R
Certification: UL,ROHS,REACH
Model Number: SMD0805R010SF
Payment & Shipping Terms:
Minimum Order Quantity: 5000PCS
Price: Negotiable
Packaging Details: Tape in reel,5000pcs per reel
Delivery Time: 10 Days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 5000,000,000PCS PER MONTH
Detailed Product Description
Name: PPTC Resettable Fuses Termination Style: SMD/SMT
Hold Current: 100 MA Trip Current: 300 MA
Maximum Voltage: 15V Current Rating - Max: 30A
Package / Case: 0805 (2012 Metric) Type: PolyFuse Resettable PTC



0805L010YR Cross 0805 2012 Metric PPTC Resettable Fuses 0.1A 15V Tape in Reel



0805L010YR Cross 0805 2012 Metric PPTC Resettable Fuses 0.1A 15V Tape in Reel 0





Description



The 0805 Series PTC provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired.





Features



RoHS compliant, lead-free and halogen-free

Fast response to fault currents

Compact design saves board space

Low resistance

Low-profile

Compatible with high temperature solders





Applications



• USB peripherals

• Disk drives

• CD-ROMs

• Plug and play protection for motherboards and peripherals

• Mobile phones - battery and port protection

• Disk drives

• PDAs / digital cameras

• Game console port protection





Electrical Characteristics



Model Marking           Maximum Resistance App.
V max Imax I hold I trip Pd Time To Trip
    @25°C @25°C Typ. Current Time R i min R1max UL
(Vdc) (A) (A) (A) (W) (A) (Sec) (W) (W)
SMD0805R005SF 1 15.0 30 0.05 0.15 0.5 0.5 1.50 1.500 18.000
SMD0805R010SF 1 15.0 30 0.10 0.30 0.5 0.5 1.50 0.750 6.000
SMD0805R020SF 2 9.0 30 0.20 0.50 0.5 8.0 0.02 0.550 3.500
SMD0805R035SF 3 6.0 30 0.35 0.75 0.5 8.0 0.10 0.200 1.200
SMD0805R035SF12v 3 12.0 30 0.35 0.75 0.5 8.0 0.10 0.200 1.200
SMD0805R050SF 5 6.0 30 0.50 1.00 0.5 8.0 0.10 0.100 0.850
SMD0805R050SF12v 5 12.0 30 0.50 1.00 0.5 8.0 0.10 0.100 0.850
SMD0805R050SF16v 5 16.0 30 0.50 1.00 0.5 8.0 0.10 0.100 0.850
SMD0805R050SF24v 5 24.0 30 0.50 1.00 0.5 8.0 0.10 0.100 0.850
SMD0805R075SF 7 6.0 35 0.75 1.50 0.6 8.0 0.20 0.070 0.385
SMD0805R075SF12v 7 12.0 35 0.75 1.50 0.6 8.0 0.20 0.070 0.385
SMD0805R100SF 0 6.0 35 1.00 1.95 0.6 8.0 0.30 0.040 0.230
SMD0805R100SF12v 0 12.0 35 1.00 1.95 0.6 8.0 0.30 0.040 0.230
SMD0805R110SF 0 6.0 35 1.10 2.20 0.6 8.0 0.30 0.035 0.210
SMD0805R110SF12v 0 12.0 35 1.10 2.20 0.6 8.0 0.30 0.035 0.210
SMD0805R125SF 12 6.0 35 1.25 2.50 1.5 8.0 0.60 0.025 0.140
SMD0805R150SF 15 6.0 35 1.50 3.00 1.0 8.0 0.50 0.015 0.130





Temperature Rerating



Model Ambient Operation Temperature
-40°C -20°C 0°C 25°C 40°C 50°C 60°C 70°C 85°C
SMD0805R005SF 0.070 0.060 0.055 0.050 0.040 0.035 0.030 0.025 0.015
SMD0805R010SF 0.14 0.12 0.11 0.10 0.08 0.07 0.06 0.05 0.03
SMD0805R020SF 0.28 0.25 0.23 0.20 0.17 0.14 0.12 0.10 0.07
SMD0805R035SF 0.47 0.44 0.39 0.35 0.30 0.27 0.24 0.20 0.14
SMD0805R050SF 0.68 0.62 0.55 0.50 0.40 0.37 0.33 0.29 0.23
SMD0805R075SF 1.00 0.90 0.79 0.75 0.63 0.57 0.53 0.41 0.34
SMD0805R100SF 1.35 1.25 1.15 1.00 0.82 0.74 0.65 0.55 0.42
SMD0805R110SF 1.45 1.35 1.20 1.10 0.92 0.84 0.75 0.65 0.52
SMD0805R125SF 1.65 1.53 1.36 1.25 1.05 0.95 0.85 0.74 0.59
SMD0805R150SF 1.98 1.84 1.63 1.50 1.26 1.14 1.02 0.88 0.71





Thermal Derating Curve



0805L010YR Cross 0805 2012 Metric PPTC Resettable Fuses 0.1A 15V Tape in Reel 1





Average Time-Current Curve



0805L010YR Cross 0805 2012 Metric PPTC Resettable Fuses 0.1A 15V Tape in Reel 2





Size (mm)



0805L010YR Cross 0805 2012 Metric PPTC Resettable Fuses 0.1A 15V Tape in Reel 3

P/N A B C D E
Min. Max. Min. Max. Min. Max. Min. Min.
SMD0805R005SF 2.00 2.20 1.20 1.50 0.40 0.90 0.20 0.10
SMD0805R010SF 2.00 2.20 1.20 1.50 0.40 0.90 0.20 0.10
SMD0805R020SF 2.00 2.20 1.20 1.50 0.35 0.80 0.20 0.10
SMD0805R035SF 2.00 2.20 1.20 1.50 0.35 0.80 0.20 0.10
SMD0805R035SF12v 2.00 2.20 1.20 1.50 0.35 0.80 0.20 0.10
SMD0805R050SF 2.00 2.20 1.20 1.50 0.35 0.80 0.20 0.10
SMD0805R050SF12v 2.00 2.20 1.20 1.50 0.35 0.80 0.20 0.10
SMD0805R050SF16v 2.00 2.20 1.20 1.50 0.50 1.10 0.20 0.10
SMD0805R050SF24v 2.00 2.20 1.20 1.50 0.50 1.10 0.20 0.10
SMD0805R075SF 2.00 2.20 1.20 1.50 0.50 1.00 0.20 0.10
SMD0805R075SF12v 2.00 2.20 1.20 1.50 0.50 1.00 0.20 0.10
SMD0805R100SF 2.00 2.20 1.20 1.50 0.70 1.20 0.20 0.10
SMD0805R100SF12v 2.00 2.20 1.20 1.50 0.70 1.20 0.20 0.10
SMD0805R110SF 2.00 2.20 1.20 1.50 0.70 1.20 0.20 0.10
SMD0805R110SF12v 2.00 2.20 1.20 1.50 0.70 1.20 0.20 0.10
SMD0805R125SF 2.00 2.20 1.20 1.50 1.00 1.50 0.20 0.10
SMD0805R150SF 2.00 2.20 1.20 1.50 1.00 1.50 0.20 0.10





Recommended Pad Layout (mm.)



0805L010YR Cross 0805 2012 Metric PPTC Resettable Fuses 0.1A 15V Tape in Reel 4





Packaging Info



Part Number Quantity
SMD0805R005.010.020.035.050.SF 5,000 pcs/reel
SMD0805R075.100.110.125.SF 4,000 pcs/reel
SMD0805R150SF 3,500 pcs/reel

Tape & reel packaging per EIA481-1
