Durable 7*9.8*6 Ntc Temperature Sensor Low Range Load Cells 0.5kg
Product Details:
| Place of Origin: | Dongguan,Guangdong,China |
| Brand Name: | UCHI |
| Certification: | ROHS,SGS,CTI etc. |
| Model Number: | CZT460B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bulk |
| Delivery Time: | 7-10 workdays |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 50000pcs per week |
|
Detail Information |
|||
| Product Name: | Load Cells | Outer Dimension: | 47*9.8*6 |
|---|---|---|---|
| Model Number: | CZT460B | Type: | Weighing |
| Rated Capacities: | 0.5kg,1kfg,2kgf | Rated Output: | 1 ±0.15 MV/V |
| Output Terminal Resistance: | 1000±5 Ω | Input Terminal Resistance: | 1055±15 Ω |
| Safe Overload: | 200 %F.S | Delay: | 0.015（%F.S.） |
| Degree Of Linearity: | 0.015（%F.S.） | Protection Level: | C3 |
| Material: | Metal | ODM/OEM: | Available |
| Origin: | Dongguan,Guangdong,China | Factory Location: | Dongguan |
| Country: | China | After-sales Services: | Available |
| High Light: | thermocouple temperature sensor,ntc probe temperature sensor |
||
Product Description
Durable 7*9.8*6 Ntc Temperature Sensor Low Range Load Cells 0.5kg
Description
Recommended excitation voltage 5-15V, maximum excitation voltage 15V.
Red (red): E+ black (black): E- white (white): V- blue or green (or green blue): V+
Widely used in high precision, small measuring range weighing occasions, with good lateral, torsional, anti offset properties for miniature automatic detection equipment, compact test equipment, trace weighing equipment, push and pull device, tension and pressure testing, according to the user's requirements and dimensions of custom sensors.
Optional fit weight transmitter, weighing display meter, weighing control table, weighing alarm instrument (additional charge),
Where are load cells used?
Features
Ultra compact design
Adjusted for all kinds of loads.
Moisture proof
Wide model selection
|
Rated capacities |
0.5 kgf, 1 kgf, 2 kgf |
|
|
Rated output |
2 ±0.1mV/V |
|
|
Safe overload |
150% of R.C. |
|
|
Maximum overload |
200% of R.C. |
|
|
Combined error |
0.02% of R.O. |
|
|
Repeatability |
0.02% of R.O. |
|
|
Creep |
0.02% of R.O.(30 min) |
|
|
Maximum excitation voltage |
DC15 V |
|
|
Zero balance |
±5% of R.O. |
|
|
Input terminal resistance |
1055 Ω |
|
|
Output terminal resistance |
1000 Ω |
|
|
Insulation resistance |
Greater than 2000 MΩ |
|
|
Operating temperature |
-10 °C to 40 °C |
|
|
Temperature effect |
Zero |
0.023% of R.O./10 °C |
|
Span |
0.014% of Load/10 °C Typ. |
|
|
Cable diameter/Length |
TBD |
|

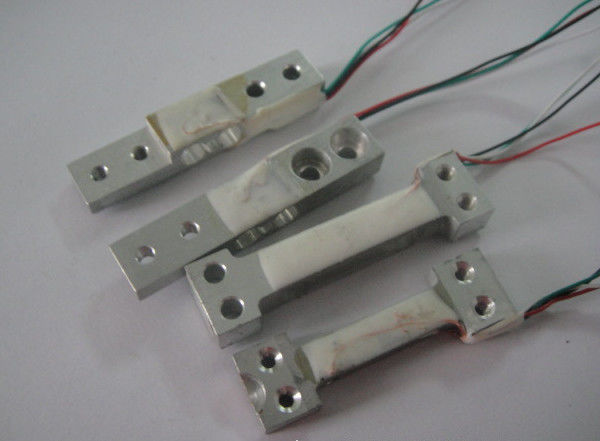

Product Photos
