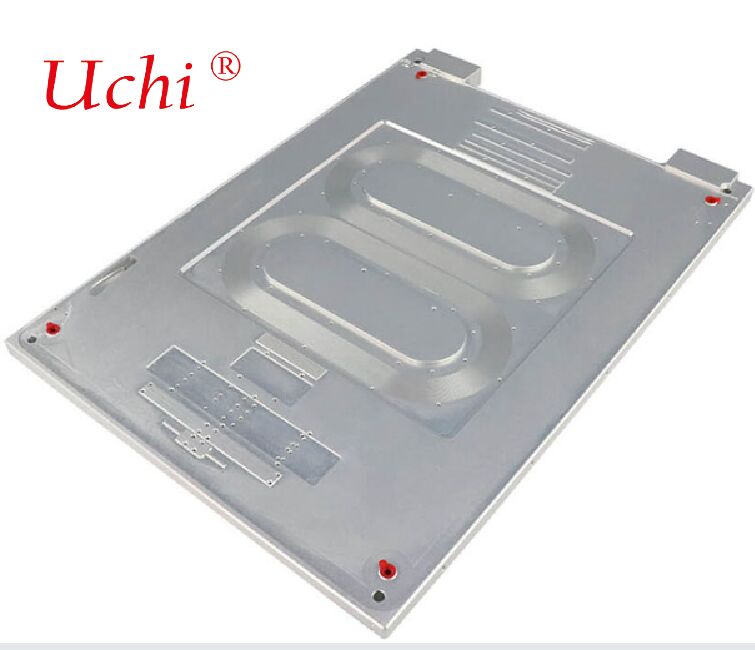

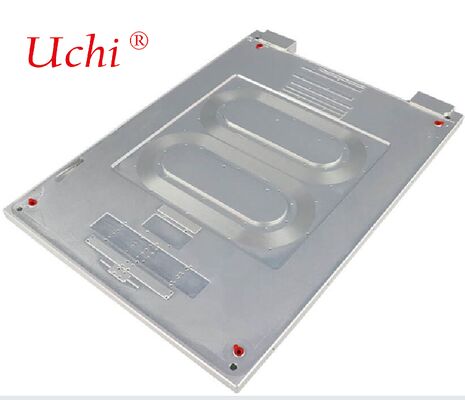

Deep-Buried Copper Pipe Double Loop Fiber Laser Water Cooling Cold Plate
Product Details:
| Place of Origin: | Dongguan，Guangdong,China |
| Brand Name: | Uchi |
| Certification: | SMC |
| Model Number: | Heat Sink |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | 1300-1500 dollars |
| Delivery Time: | not limited |
| Payment Terms: | T/T，paypal， Western Union,MoneyGram |
| Supply Ability: | 50000000pcs per Month |
|
Detail Information |
|||
| Material: | Copper And Aluminum | Product Dimension: | Can Be Customized |
|---|---|---|---|
| Product Weight: | 3.4kg | Feature: | New Technology And High Power Cooling |
| Surface Treatment: | Oil Cleaning And Anti-oxidation | Heat Conducting Power: | 450 W |
| Product Technology: | Welding And Pipes Bending | Type: | Aluminum Profile |
| Thermal Conductivity: | ≥ 180 W/m·K | Texture Of Material: | 6061 |
| Tube Dimensions: | K-1/4”, K-3/8”, K-1/2” | Corrosionresistance: | Yes, With Proper Coating |
| Thickness: | 0.30mm--Customized | Mountingoptions: | Screw Holes Or Adhesive Pads |
| Humidity: | 5%～90% | Weight: | Varies Depending On Size And Material |
| Treatment: | PassivationHeat Conducting | Application: | RGB Laser Light Source |
| Product Weight: | 1.198kg | Body Material: | Aluminum |
| Power Interface: | 3Pin | ||
| Highlight: | double loop fiber laser cold plate,deep-buried copper pipe water cooling,liquid cooling plate with warranty |
||
Product Description
Aluminum Skiving Heatsink (with fins)
1. What it is
- Made from one solid aluminum block (usually AL1060, AL6063)
- Fins are cut and bent upward by a skiving machine
- Base and fins are integral, no welding, no soldering, no gluing
2. Key advantages
- Very low thermal resistance
No contact resistance between base and fins.
- Thin & dense fins possible
Fin thickness: 0.2–1.0 mmFin density much higher than extrusion heatsinks.
- Good for high-power cooling
Used for high-power LEDs, inverters, power supplies, EV parts, servers.
- Customizable shape & size
No expensive extrusion mold needed.
3. How it cools
- Heat from device → heatsink base
- Heat spreads evenly through aluminum
- Heat transfers to many thin fins
- Fins release heat to air by convection (natural or fan cooling)
4. Typical structure
- Base: flat, for mounting to heat source
- Fins: vertical, thin, dense, straight
- Surface treatment: anodized black (improves cooling & anti-corrosion)
5. Common applications
- High-power LED lighting
- Server / CPU / GPU cooling
- EV power modules, inverters
- Industrial power supplies
- 5G communication equipment
