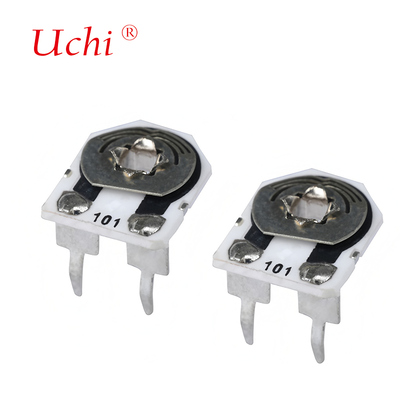

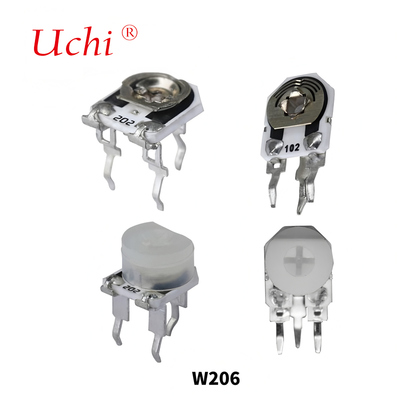

W206 Single-turn Potentiometer Metal Glass Glaze Trimmer Potentiometer 0.25-watt Preset Potentiometer
Product Details:
| Place of Origin: | Dongguan，Guangdong,China |
| Brand Name: | Uchi |
| Certification: | SMC |
| Model Number: | W206 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Payment Terms: | T/T，paypal， Western Union,MoneyGram |
| Supply Ability: | 50000000pcs per Month |
|
Detail Information |
|||
| Resistance: | 100Ω~1MΩ | Resistance Tolerance: | ±20% |
|---|---|---|---|
| Terminal Resistance: | ≤±1%R Or 10Ω | Contact Resistance Variation (CRV): | ≤±3%R |
| Insulation Resistance: | ≥ 500MΩ (100V AC) | Withstand Voltage: | 250V (DC Or AC Peak Value) |
| Effective Electrical Travel: | 200° | Rated Power: | 0.25W ( 300V Max) |
| Highlight: | W206 single-turn potentiometer,metal glass glaze trimmer potentiometer,0.25-watt preset potentiometer |
||
Product Description
W206 Single-turn Potentiometer Metal Glass Glaze Trimmer Potentiometer 0.25-watt Preset Potentiometer
The W206 single coil metal glass glaze pre adjustable potentiometer is designed for electronic devices including audio amplifiers, mixing consoles, and recorders. With a rated power of 0.25W, this single turn glass glaze fine adjustment potentiometer features metal glass glaze construction offering high temperature resistance, corrosion resistance, and vibration resistance. Circuit parameters can be easily adjusted by rotating the potentiometer knob.
Product Features
- Compact size with spiral structure for installation in tight spaces
- High-precision adjustment capability for fine resistance tuning
- Durable metal construction for long-term stability
- Easy adjustment via knob or screw
- Wide resistance range to accommodate various circuit requirements
- Cost-effective solution for large-scale applications
Note: Avoid excessive adjustment to prevent potentiometer damage or circuit performance impact.
Specification Parameters
| Electrical Characteristics | |
|---|---|
| Range of nominal resistance | 100Ω~1MΩ |
| Resistance tolerance | ±20% |
| Terminal resistance | ≤±1%R or 10Ω |
| Contact resistance variation (CRV) | ≤±3%R |
| Insulation resistance | ≥ 500MΩ (100V AC) |
| Withstand voltage | 250V (DC or AC peak value) |
| Effective electrical travel | ≥200° |
| Environment Characteristics | |
|---|---|
| Rated power | 0.25W (300V max) |
| Temperature range | -55°C~+125°C |
| TCR | ±250×10-6/°C |
| Collision (390m/S2, 4000 times) | ΔR≤±1%R |
| Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS |
| Physical Characteristics | |
|---|---|
| Total mechanical travel | ≥240° |
| Starting torque | ≤20mN.m |
| Stopper torque | ≤50mN.m |
| Soldering conditions | 240℃-260℃(5 seconds) |
Product Size
Application Areas
The W206 potentiometer is widely used in communication equipment, audio equipment, power regulation, instrumentation, control circuits, automotive electronics, and lighting equipment.
