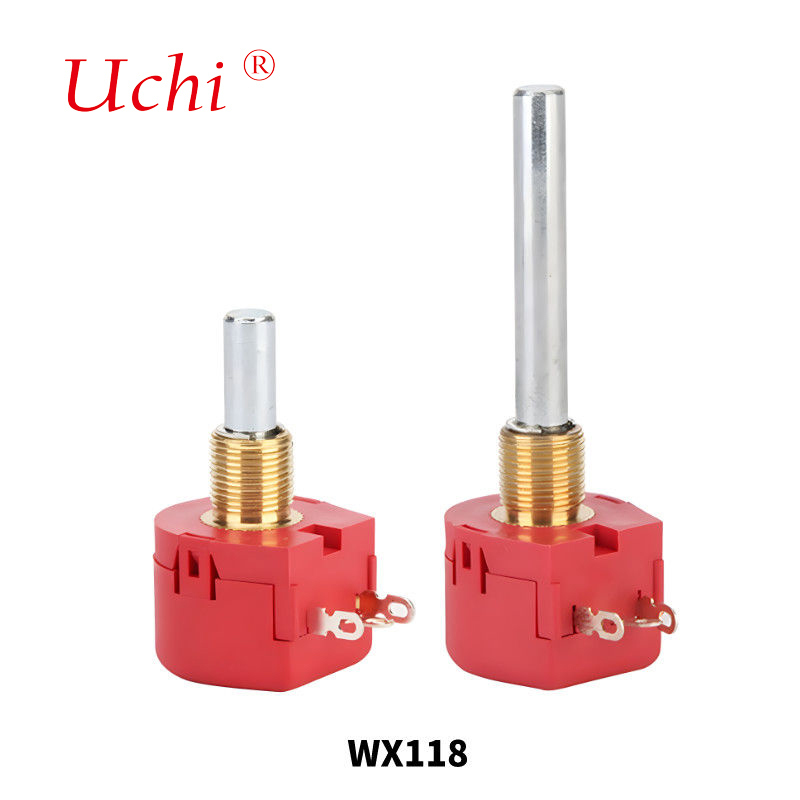

WX118 Wire-wound Rotary Potentiometer 5k Ohm 40mm Axis Single-turn Wire-wound Potentiometer
Product Details:
| Place of Origin: | Dongguan，Guangdong,China |
| Brand Name: | Uchi |
| Certification: | SMC |
| Model Number: | WX118 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Payment Terms: | T/T，paypal， Western Union,MoneyGram |
| Supply Ability: | 50000000pcs per Month |
|
Detail Information |
|||
| Resistance: | 25Ω~25kΩ | Resistance Tolerance: | ±5%,±10% |
|---|---|---|---|
| End Resistance: | 2Ωmax | Temperature Range: | -55°C~+125°C |
| Electrical Angle: | 300°±5° | Rated Power: | 160VAC ,1W:55℃ , 0W:125℃ |
| Length: | Long Handle 49mm \short Handle23mm | ||
| Highlight: | 5k Ohm wire-wound potentiometer,40mm axis rotary potentiometer,single-turn precision potentiometer |
||
Product Description
WX118 Wire-wound Rotary Potentiometer 5k Ohm 40mm Axis Single-turn Wire-wound Potentiometer
The WX118 single coil wire wound potentiometer is a precision variable resistance component for electronic devices, controlling current or voltage output through adjustable resistance. Its rotating axis modifies resistance by changing the number of wire turns in its single-coil winding configuration, making it ideal for precise small-range circuit adjustments.
This potentiometer offers high precision, durability, flexible regulation, cost-effectiveness, and broad applicability across various electronic applications.
Specification Parameters
ELECTRICAL CHARACTERISTICS
| RANGE OF NOMINAL RESISTANCE | 25Ω~25KΩ |
| RESISTANCE TOLERANCE | ±5% ±10% |
| INDEPENDENT LINEARITY | ±0.5% |
| TERMINAL RESISTANCE | ≤0.2% OR 2Ω |
| ROTATION NOISE | ≤3%R |
| WITHSTAND VOLTAGE | 1000AC |
| EFFECTIVE ELECTRICAL TRAVEL | 265°±5° |
ENVIRONMENTAL CHARACTERISTICS
| RATED POWER | 160VAC, 1W:55℃, 0W:125℃ |
| TEMPERATURE RANGE | -22℃~ +125℃ |
| TEMPERATURE COEFFICIENT | ±100ppm/℃ maximum / unit |
| COLLISION | 390m/S², 4000 cycles ΔR≤±1%R |
| VIBRATION | 10~500HZ, 0.75mm, 6h ΔR≤±1%R Electrical interruption≤100us |
| 55℃ Electrical durability | 1W, 1000h, ΔR≤±3%R |
| MECHANICAL ENDURANCE | 5,000 cycles ΔR≤±3%R |
| LIFE | 5,000 cycles |
PHYSICAL CHARACTERISTICS
| TOTAL MECHANICAL TRAVEL | 285°±5° |
| STARTING TORQUE | 35--100mN.m |
| STOP STRENGTH | 400mN.m |
Product Size
Application Areas
- Audio devices: Volume and tone control circuits
- Electronic instruments: Calibration for oscilloscopes and signal generators
- Communication equipment: Frequency and volume adjustment in radios and walkie-talkies
- Control systems: Precision resistance adjustment for sensors and actuators
- Automotive electronics: Audio and lighting system controls
Manufacturer Information
We are a specialized factory with extensive experience in high-quality electronic component manufacturing:
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
Shipping & Support
We offer reliable global shipping solutions with comprehensive after-sales support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
Frequently Asked Questions
Are you a factory or trading company?
We are a factory offering direct pricing with professional technical support.
Could you provide samples?
Samples are available upon request after order placement.
Can your product be customized?
We accept OEM/ODM orders with flexible requirements.
What is your delivery time?
Delivery varies by quantity and model, with urgent requests accommodated when possible.
Do you offer after-sales service?
We provide comprehensive 24-hour support for all products.
Want to Know more details about this product
